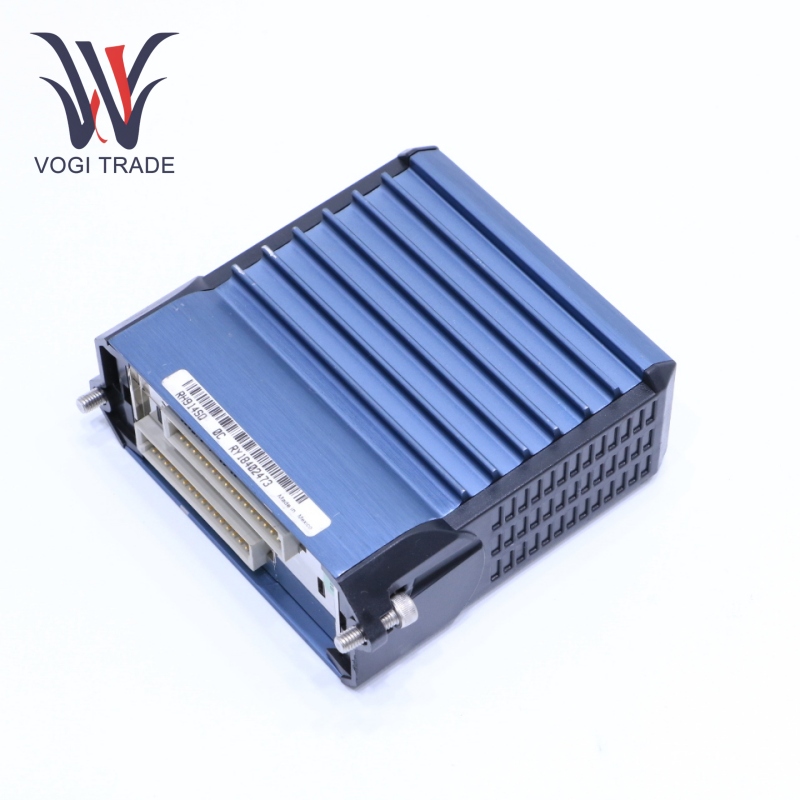

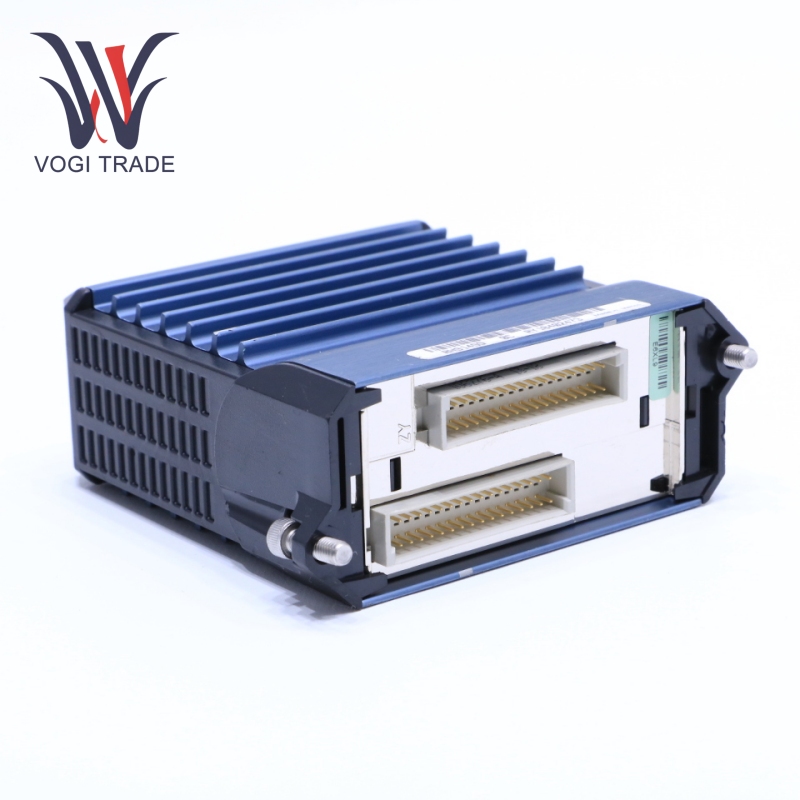

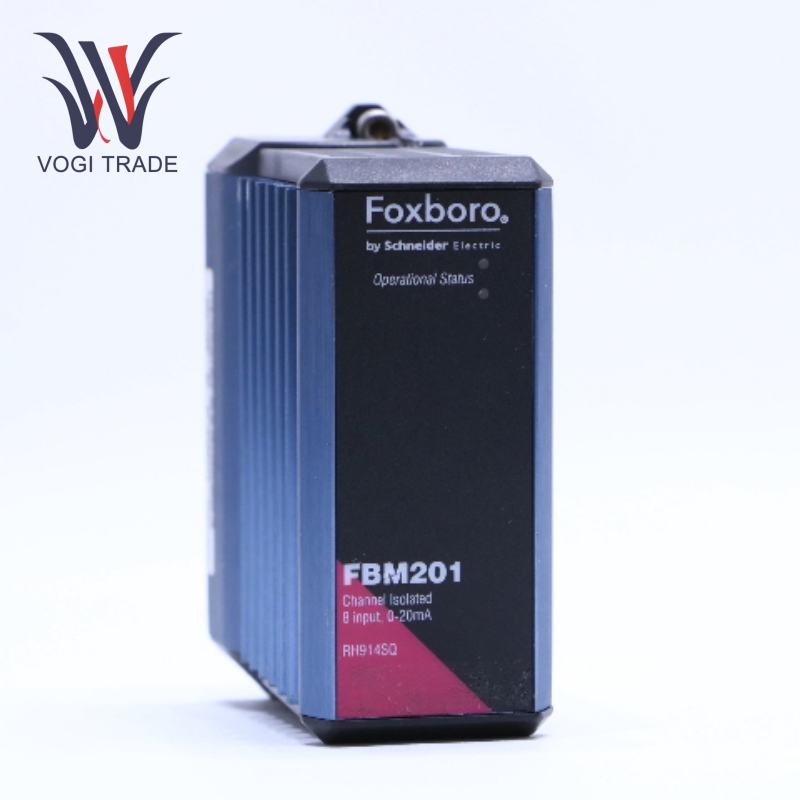

Foxboro FBM201

Technical Parameter

Input Channels: 8 isolated and independent channels.

Input Channel Impedance: Nominal 61.5 Ω. Common Mode Rejection: >100 dB at 50 or 60 Hz.

Normal Mode Rejection: 95 dB or higher at 50 or 60 Hz.

Power Consumption: 7 W, with a maximum peak rating,

Power Dissipation: Less than 3 W.

Operating Voltage: 24 VDC, with a maximum rated value of 28.6 VDC, and the maximum for contact input is 32 VDC

Operating Temperature: -40°C to +70°C (-40°F to +158°F): -40°C to 85°C.

Storage Temperature: -55 to 90°C

Relative Humidity: 5% to 95% (noncondensing).

Altitude: -300 m to + 12,000 m (-1000 ft to 40,000 ft).

Function Features

Multi-channel Analog Input: Foxboro FBM201 gives the input of analog sensor signals through 8 channels whose accepted signals vary from 0 to 20 ma dc, 0 to 100 mv dc, 0 to 5v dc, and 0 to 10 v dc, which will conform to different industrial measurement needs.

Galvanic Isolation: Each analog input channel of this Foxboro FBM201 is galvanically isolated from the other channels and the ground to guarantee signal fidelity and stability by avoiding noise problem, channel interference, etc.

High Precision: High-precision analog signal acquisition is performed using the sigma-delta data conversion technique on each of the channels, accomplishing accurate measurements.

Flexible Configuration: Configuration of conversion time by the user in keeping with special needs makes the module more flexible and adaptable.

Status Indicators: Available status and diagnostic information with LED indicators make monitoring the module easy and fast for easy identification of possible problems.

Redundant Communication: Foxboro FBM201 supports redundant communication paths to improve reliability in data transmission and system operation.

Hot-swappable Design: Enables installation and maintenance without impacting system operation and minimizes system idle time.

Applications

Manufacturing Industry: It is used to monitor and control various analog signals in production lines, such as temperature, pressure, flowrate, and level sensors in equipment like boilers, furnaces, and conveyor systems.  Foxboro FBM201 enhances optimization of production efforts, product quality, and production efficiency.

Petrochemical Industry: It can be used to monitor critical parameters of oil refineries, chemical plants, and gas processing facilities for measuring pressure and flow in pipelines, reactor temperature monitoring, and for levels in tanks, allowing safe and effective operation of complex petrochemical processes.

Generation of Power: In power plants, Foxboro FBM201 is capable of monitoring and controlling steam pressure, temperature, flow conditions in boilers, as well as generator output voltage and current. It optimizes the efficiency of power generation through a reliable and continuous provision of real-time data that ensures the stability and reliability of the power grid.

Pharmaceuticals: Foxboro FBM201 is used for accurate process variable control and monitoring, including temperature and humidity control in cleanrooms, pressure monitoring inside the reactors, and flow control of liquid ingredients. This guarantees pharmaceutical benefits through quality and consistent production according to compliance with stringent regulations.

Food and Beverage: It measures and controls food processing parameters including temperature control in ovens and freezers, pressure monitoring in packaging machines, and flow control of different liquid ingredients. Foxboro FBM201 ensures quality and safety in food products whereby production efficiency is optimized and waste reduced.

Water Treatment: In water treatment plants, Foxboro FBM201 can be used for monitoring parameters such as pH, conductivity, and turbidity of water, in addition to controlling the flow and pressure of water used in treatment. This ensures efficient and reliable water treatment operations for an uninterrupted supply of clean and safe water.
