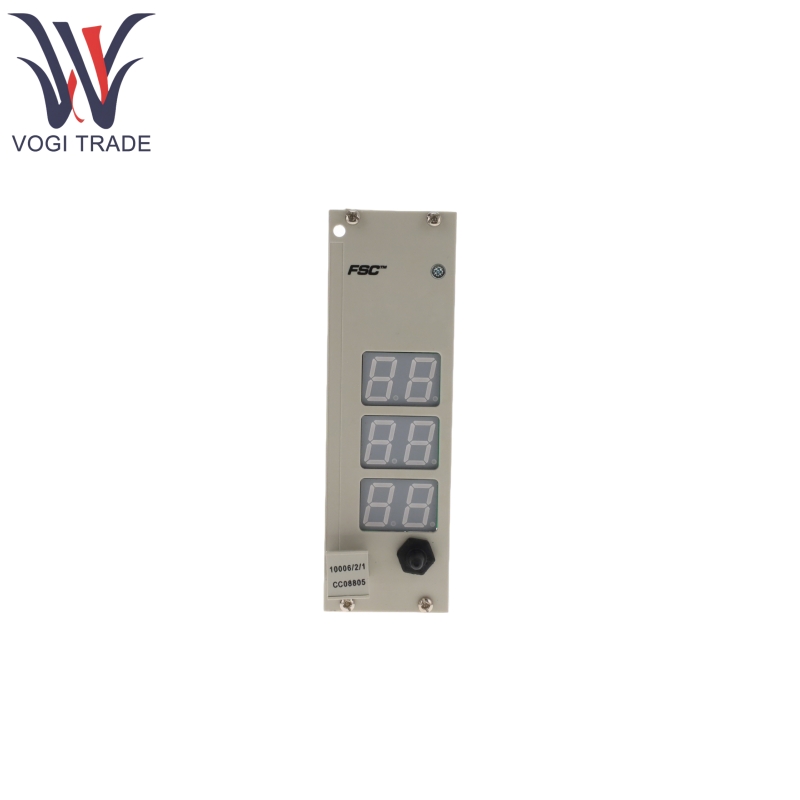

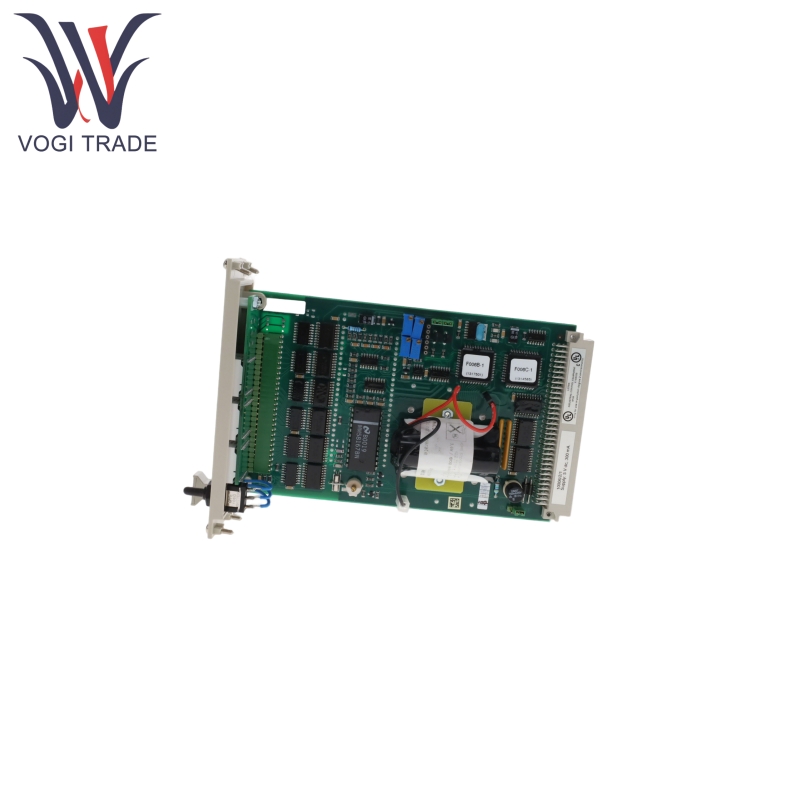

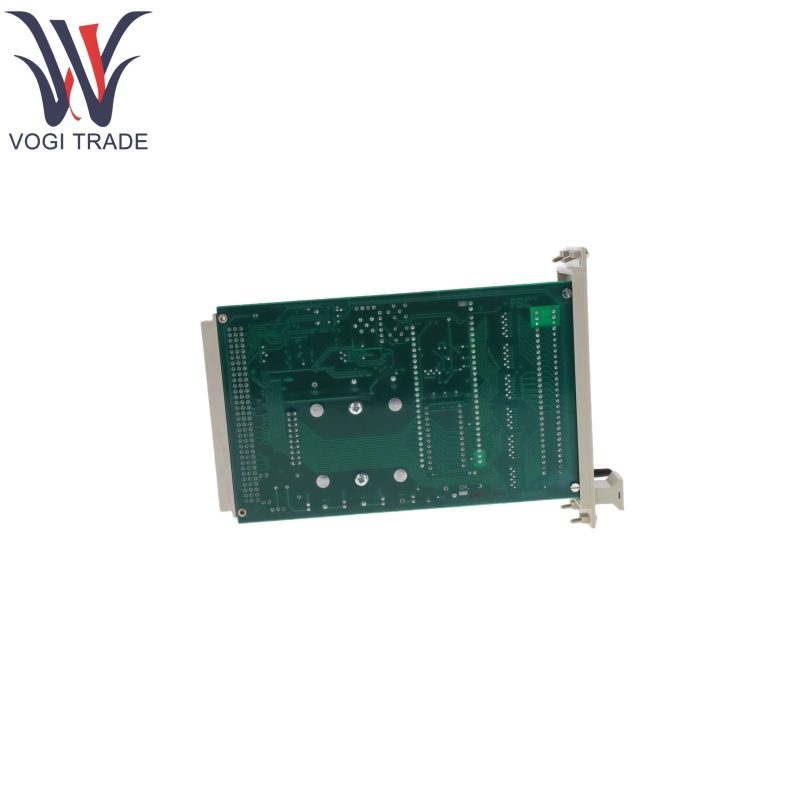

Brand: Honeywell Description: Diagnostic and Battery Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen Honeywell 10006/2/1 Diagnostic and Battery Module provides a low-cost interface to the user. The displays on the front of the module are used to display messages about the faults found by the diagnostic routines. The message gives type, rack and position number of the module found to be faulty.
Manufacture |
Honeywell |
Model Number |
10006/2/1 |
Ordering Number |
10006/2/1 |
Catalog |
FSC |
Country Of Origin |
United States (US) |
HS CODE |
8466940090 |
Dimension |
20*4*14cm |
Weight |
0.4kg |
Product Features
Fault diagnosis and Display:
Honeywell 10006/2/1 displays system fault information through the front-end display, including fault type (e.g. analog input fault, digital output fault, temperature abnormality, etc.), the rack where the fault is located and the location number.
Honeywell 10006/2/1 supports viewing system information (e.g., date, temperature, 5 Vdc level, battery voltage) and diagnostic information via front-end switch toggle, and automatically returns to time display mode approximately 30 seconds after operation.
A flashing display indicates that there is an unprocessed system fault, while a blank display indicates that there is no fault or the fault information has been read.
Real-Time Clock Function:
Honeywell 10006/2/1 built-in real-time clock provides the current date and time, which can be read by the application program, and supports system time synchronization and event timestamp recording.
Condition Monitoring:
Honeywell 10006/2/1 monitors the temperature value of two independent temperature sensors, 5 Vdc power level and battery voltage inside the FSC central component.
Honeywell 10006/2/1 supports the configuration of high and low temperature alarms and trip points through the “Configure FSC system” program to ensure the system's timely response in abnormal conditions.
Battery Backup:
Honeywell 10006/2/1 built-in rechargeable battery provides power failure backup for CPU, COM and MEM module RAM to prevent data loss. And the battery needs to be replaced every 4 years to ensure reliable backup function.
Ease of Operation:
The front switch can be operated upward to view system information (e.g., date, temperature, power status) and downward to view diagnostic information, and can be operated multiple times to cycle through all the contents.
Product Applications
Condition Monitoring:
Honeywell 10006/2/1 Diagnostic and Battery Module as the core diagnostic component of FSC system, it is suitable for real-time monitoring of system health status in the field of chemical industry, petroleum, natural gas and other industrial process control which requires high safety.
Rapid Fault Localization:
Honeywell 10006/2/1 Diagnostic and Battery Module helps engineers in large industrial installations to quickly troubleshoot module faults and reduce system downtime by displaying clear fault information.
Data Protection:
Honeywell 10006/2/1 provides power failure backup of system RAM to ensure that critical configuration and operational data are not lost in the event of a sudden power failure, for safety instrumented systems (SIS) that require continuous operation.
Product Parameters
Category
Specifications
Type Number
10006/2/1 (modules with suffix code 08801 and above have improved noise immunity)
Software Version
Compatible with FSC system software version ≥ 2.90
Dimensions
8 TE (40.64 mm width), 3 HE (3U height), suitable for standard 19-inch racks
Power Requirements
5 Vdc, 300 mA (excluding external loads), Ripple tolerance < 50 mV p-p
Battery Capacity
Rechargeable battery, backup capacity 0.5 Ah
Time Accuracy
Time drift < 1 sec/day
Monitoring Functions
Monitors 2 independent temperature sensors, 5 Vdc level, and battery voltage
Operating Temperature
0°C to 60°C (32°F to 140°F)
