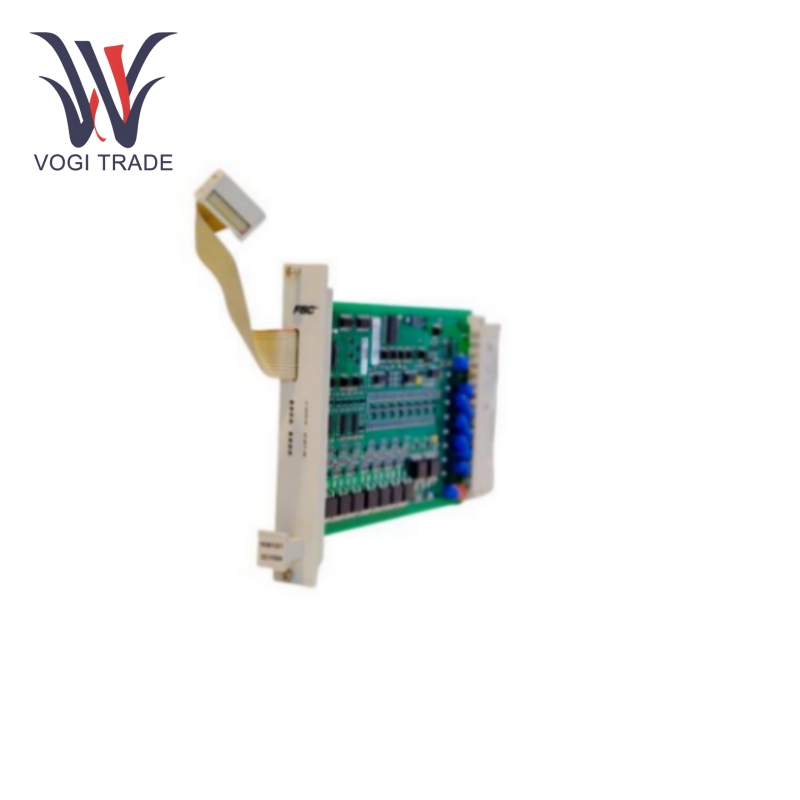

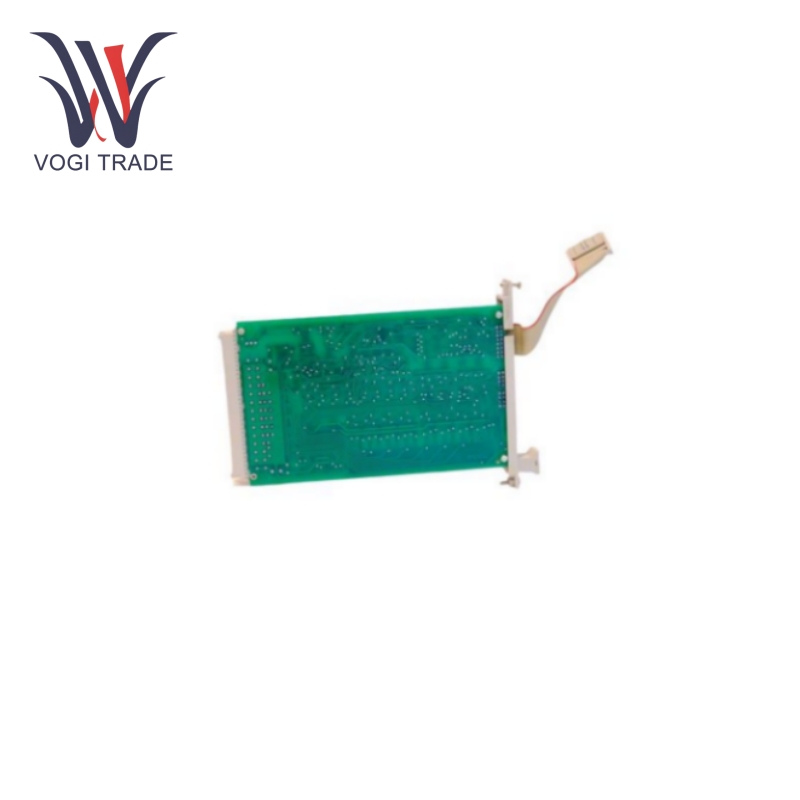

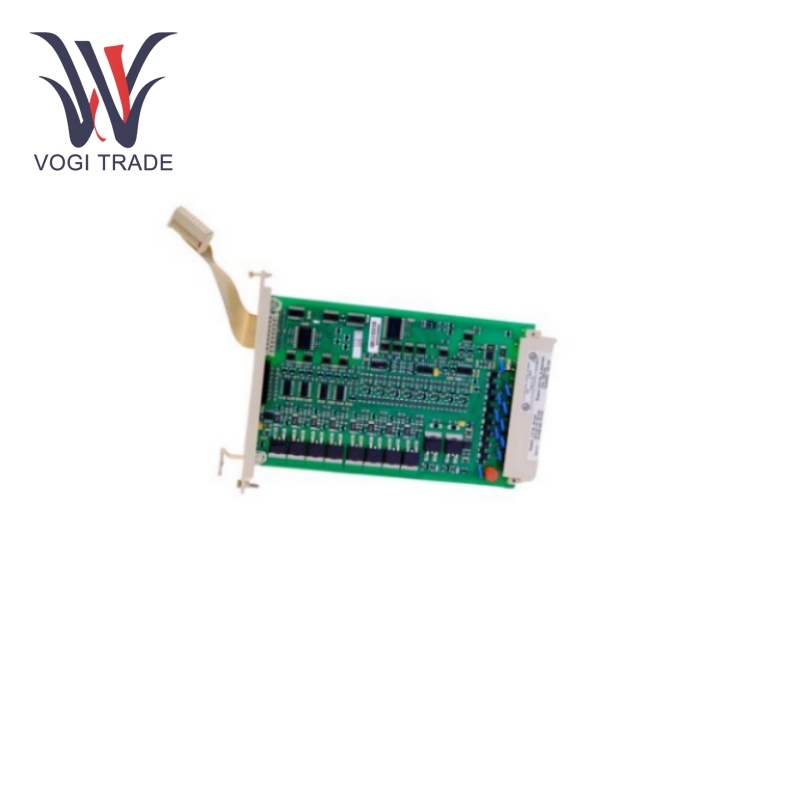

Honeywell 10201/2/1

Usage Parameters

Power Requirements: Honeywell 10201/2/1 should have a 5 VDC power supply with a minimum current of 25 mA; in addition, an internal 24 VDC (25 mA) and an external 24 VDC (70 mA) are required without output load. The design of multiple power supplies will provide stable operating functions for a range of materials within the module.

Output Channels: There are eight output channels, each rated at 24 VDC, 550 mA. Each channel drives resistive loads (such as lamps) or inductive loads (such as solenoids) with fairly high efficiency. For inductive loads, each output has a built-in suppression diode to prevent circuit failure.

Output Specifications: The output is a 24 VDC solid-state power supply that allows short circuits to provide reliable output power for a variety of connected devices. The maximum lamp load is 120 ma (2.9 w) and the maximum allowable load capacitance is 1 µF. The voltage drop is much less than 2.0 VDC at 500 mA, the shutdown current is 0.1 mA, and the watchdog current is 8 mA.

Product Features

Fail-safe function: All output channels of the module and their suppression diodes have been fully tested for all possible fail-safe applications.

Output de-energization capabilities will be tested: de-energization combination capabilities with secondary devices, crosstalk between outputs, and the function of the suppression diode within the configured process safety time. They ensure the locking and safety of the system in the event of abnormal conditions to reduce accidents and equipment damage.

Signal output and control: The system has eight output channels, capable of providing real-time digital output signals to control any external device or component, such as motors, valves, and relays. The channels are designed to be short-circuit proof, thus providing short-circuit damage protection for themselves and any connected equipment, thereby increasing the stability and durability of the system.

Compatibility and integration: As a Honeywell modular setting, the integration of the Honeywell 10201/2/1 module has perfect compatibility with other Honeywell controllers, sensors, and software. Therefore, it is easily compatible with the current automation system, and appropriate information exchange and execution between different components are carried out to achieve complete control and monitoring of the production process.

Scope of application

Industrial automation: Honeywell 10201/2/1 is widely used in different aspects of industrial automation; control manufacturing, transfer, food and pharmaceutical industries. It is used to control production processes such as mixers, conveyors and packaging stations, improve production efficiency and improve product quality.

Process control: In the process control system, valves, pumps and other actuators regulate the flow, pressure and temperature of the product in the process to ensure the stability and reliability of the parameters.

Safety system: Honeywell 10201/2/1 operating use is in the fault position in the safety-critical system area, involving emergency shutdown systems and fire protection systems. In an emergency, it can disconnect the power supply or start the relevant safety device to avoid the loss of personnel and equipment safety.
