Honeywell 10311/2/1

To meet the needs of various process control solutions, Honeywell has manufactured the Honeywell 10311/2/1 reset module to operate at low voltage with minimal impact on existing systems. It operates at 24 VDC and has a steady-state current consumption of less than 100 mA. The communication interface of the communication module version is RS-232C. It has four available channels and operates at a data rate of up to 19.2 kbps. This provides high-speed and reliable data communication for the communication module and other devices in the control system.

Function

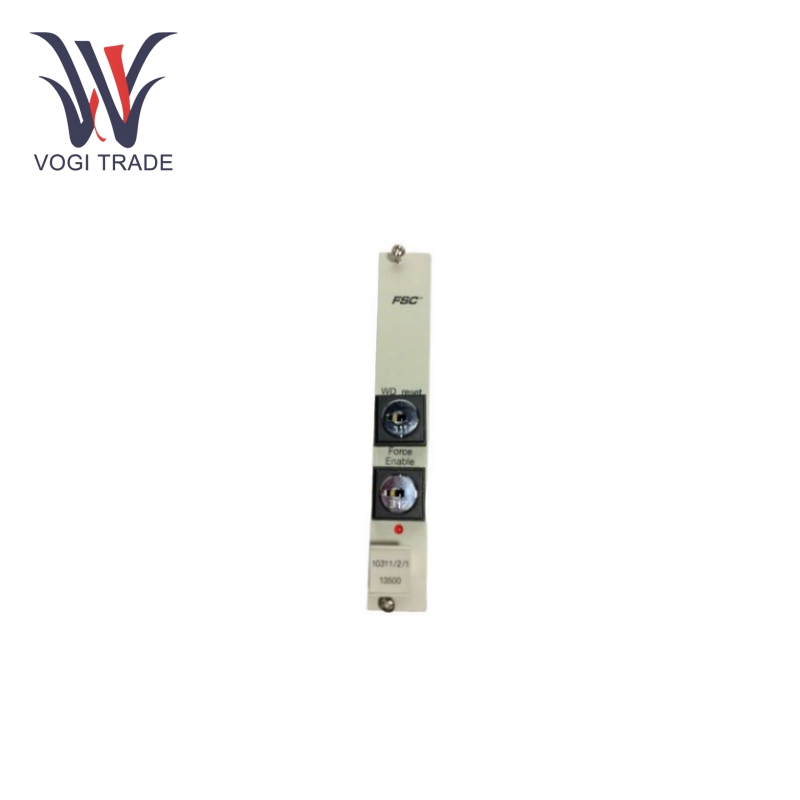

Reset and Enable: This reset module is an important aspect of the control system, which can quickly and efficiently reset various systems and devices. For example, for the Honeywell 10311/2/1 model, the dual key switch design brings the advantage that the reset and forced enable functions can be controlled independently or simultaneously, thereby preventing unauthorized personnel from performing important operations.

Input and Output: Input and output options are varied: Analog inputs can include 4 and 20 mA, DC, which are often used to interface with sensors in industrial processes. Other areas of digital inputs and outputs include 24 VDC digital inputs and outputs, relay digital outputs, which can be flexibly connected to different types of field devices and allow the control system to receive and send digital signals for process control and monitoring.

Temperature Measurement: Through the operation of the temperature multiplexer, the system accepts inputs from thermocouples (TC) and resistance temperature devices (RTD); therefore, it can ensure accurate monitoring of temperature throughout the life cycle of industrial processes - and in chemical reactors, furnaces, or any application where temperature control is critical where heat-intensive processes may occur.

Pulse Inputs and General Purpose I/O: Such inputs provide quasi-dual inputs for linear counting, photovoltaic generation, and custody transfer; therefore, these functions may be suitable for applications that require counting or pulse signal monitoring. Flexibility is further enhanced by the 32 points of general purpose I/O, allowing the user to configure these channels as analog inputs, analog outputs, digital inputs, or digital outputs depending on the specific application.

Communications and Connectivity: The communication module version of the Honeywell 10311/2/1 provides enhanced communication capabilities. Supporting enhanced programmable baud rates, hardware handshakes, and modem control signals, it can be seamlessly integrated with real-time control systems, scientific and engineering applications, and various devices in the title list (such as minicomputers) as well as high-speed data communications; thus, it expands its footprint into a variety of application combinations.

Application Scope

Industrial Automation: Honeywell 10311/2/1 is widely used in industrial automation processes and transferred to manufacturing plants, refineries, and chemical plants. Parameters such as temperature, pressure, flow, and level are monitored and controlled to ensure smooth production and that the quality of the final product is at an acceptable level.

Building Management System: It is used in building automation to control and monitor HVAC (heating, ventilation, air conditioning), lighting, and access control systems. It supports the management and control of buildings through a centralized management platform, thereby improving energy efficiency and occupant comfort.

Security System: In this security application, the takeover restart function is integrated, so that devices such as alarm systems, access control panels, and surveillance cameras can be controlled. This is achieved through a secure key switch design, so that it can be ensured that illegal personnel cannot operate them to improve the safety of the premises.

Process Control: It is used in advanced process control systems - such as throughout the pharmaceutical, food and beverage, and water treatment industries. Helps to accurately measure and control process variables and ensure compliance with strict quality and safety standards.

Electrical Systems: Supports resetting and controlling electrical devices in power distribution systems, motor control centers, and other electrical installations. Honeywell 10311/2/1 protects electrical systems from faults and provides reliable operation.
