Honeywell 51109693-100B

The product requires a 5VDC power supply with a current of 8mA, and also requires a 24VDC internal and external power supply with a current of 110mA (input current). The ripple content on 5VDC is less than 0.5vp-p at 0-360hZ.

Input Channels: It has 16 input channels.

Input Voltage and Current: Maximum contribution 36VDC, input flow is 7MADC, 24VDC. The logic high level is greater than 15VDC, and the logic low level is less than 9VDC. The normal input reaction time can be specified as 10 milliseconds.

Product Functions

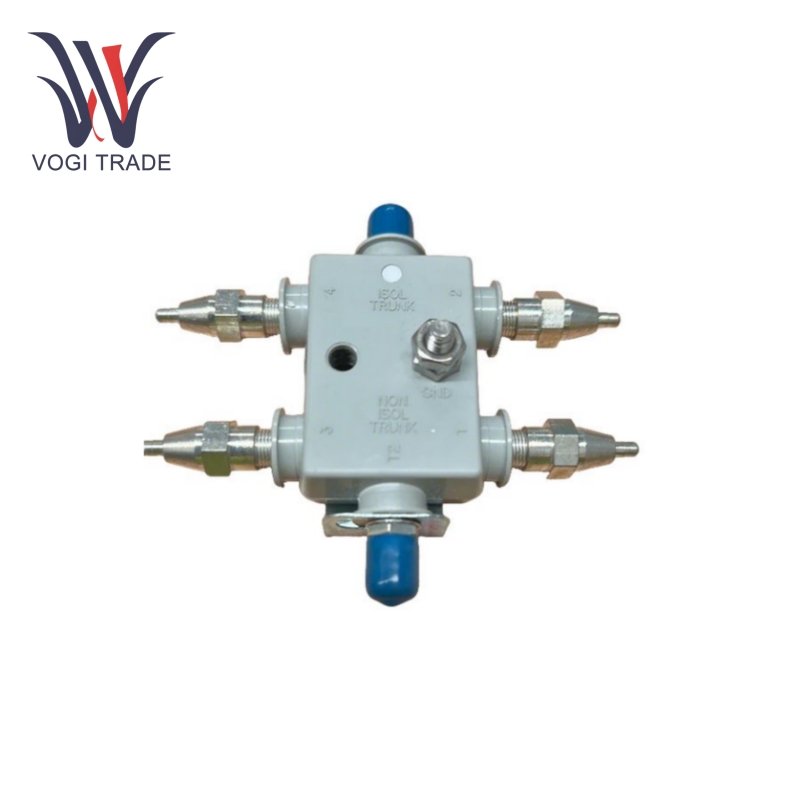

Signal Transmission and Connection: 51109693-100B is used as a 2-4 port UCN connector to introduce cable distribution grounding, which is an important element for signal transmission and connection within the control system. It effectively fixes other devices while allowing stable signal transmission for proper communication between different system parts.

Grounding function: This product provides an important grounding method, which is essential to ensure stable operation within the system. This means that it can suppress external interference through correct grounding, thereby eliminating the interference of the equipment to the environment, while ensuring the normal function of the distributed control system. It helps to maintain the stability and reliability of the signal reference potential, thereby improving the overall system performance.

System compatibility: HONEYWELL 51109693-100B is compatible with almost all other components of the Honeywell system, and there is little trouble when integrating into other modules, controllers and peripherals to form a complete and efficient control system, providing users with greater flexibility to expand the system configuration.

Application range

Industrial automation: 51109693-100B is used in various fields of industrial automation such as CNC machinery metallurgy, oil and gas, petrochemicals, chemicals, papermaking, printing and dyeing, machinery manufacturing, etc., to realize the automatic control of the production process, improve production efficiency, and ensure product quality.

Power industry: In the process of power generation, transmission and distribution, it is used for signal monitoring and control of power facilities such as power plants and substations to ensure the safe and stable operation of the power system.

Water treatment and environmental protection: Applied to water plants and environmental protection projects, regulating water quality, flow, pressure and other related parameters, which is conducive to the efficient operation of water treatment processes and the protection of the ecological environment.

Automobile manufacturing: On the automobile manufacturing production line, it plays an active role in the arrangement and control of assembly, painting, testing and other processes, ensuring the quality and consistency of automobile production.
