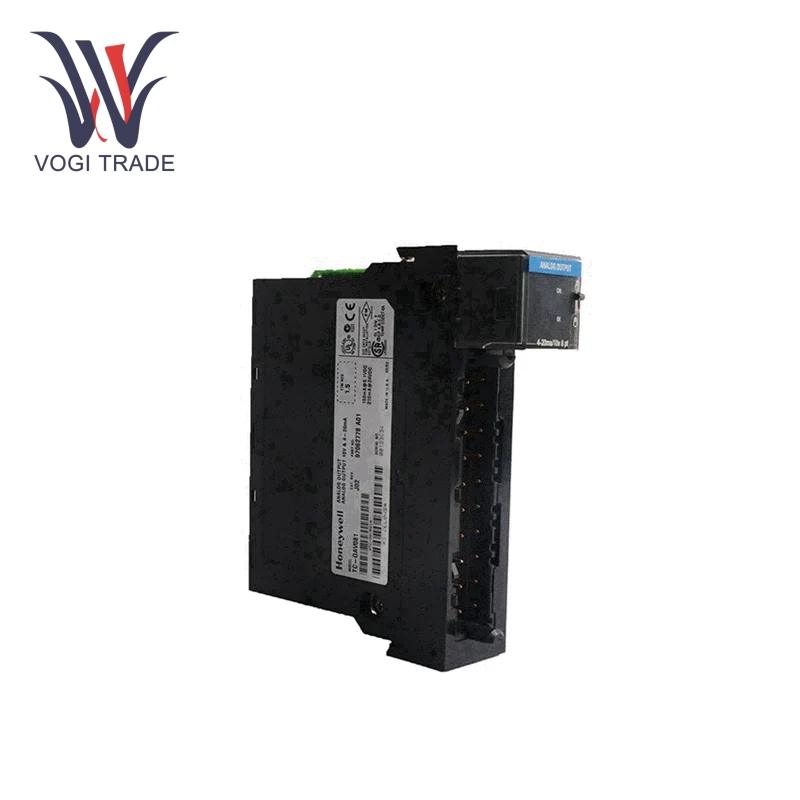

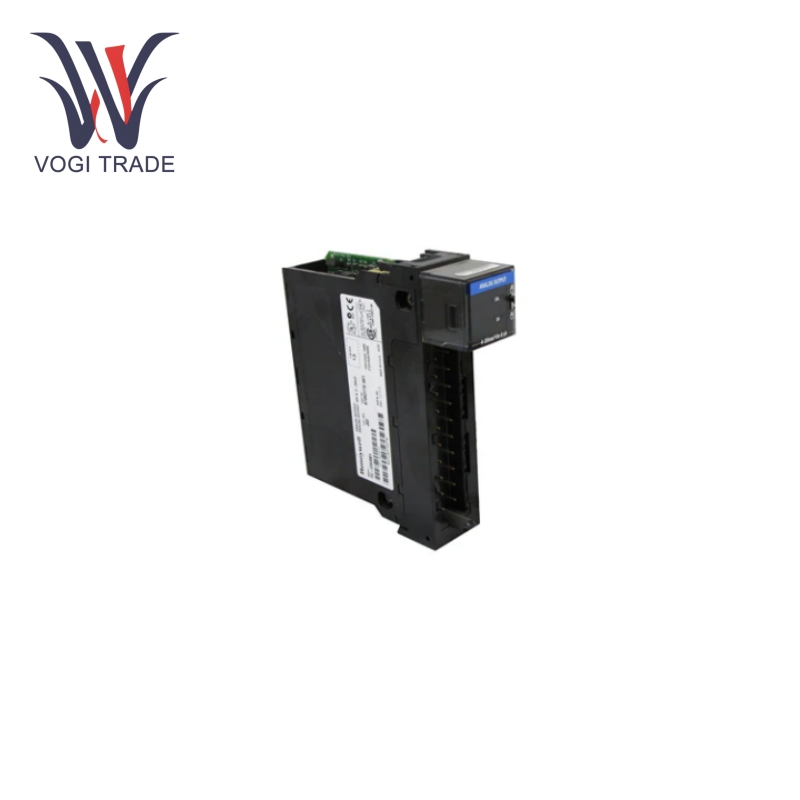

Honeywell TC-IXL061

Power supply parameters: Input current is 250mA

Temperature range: Operating temperature range -40 to +85

Storage temperature range: -40 to +100

Humidity range: 0 to 95% (non-condensing)

Response time: For quick temperature changes, the response time is <1 sec

Electrical isolation: 1500V AC electrical isolation between input and output

Number of channels: six-channel thermocouple input plus one cold end channel

Input voltage range: -12mV to +78mV, high resolution range--12mV-30mV

Supported thermocouple types: B, E, J, K, R, S, T, N, C

Resolution: 16 bits (typical-1.4µV)

Connection terminal block: TC-TBN H, 20-bit terminal block.

Features

Isolation protection: The isolation voltage between channels and channels, users, and systems have been correctly tested at 2546Vdc, allowing safety and reliable system operation to possibly prevent electrical interference and the propagation of faults across channels and from the system to the outside.

Fast module update rate: Honeywell TC-IXL061 update rate is 50 milliseconds from all channels, such temperature data can be obtained in time so as to ensure fast response control toward temperature changes to ensure precise temperature control and monitoring.

Short stabilization time: Stabilization time is less than 80 milliseconds to reach 5% of the full scale, allowing for quick stabilization and thereby fast output of accurate measurement values for improving the responsiveness and measurement efficiency of the system.

Application

Temperature control of the baking process: In the whole production process of baked goods such as bread and biscuits, the temperature distribution in the oven greatly affects the quality and taste of the product. The Honeywell TC-IXL061 can be installed at different positions in the oven to monitor the temperature level in real-time, thus helping bakers adjust their oven temperatures exactly, so they could bake uniformly heated products that sport the desired color, flavor, and texture.

Temperature monitoring of the sterilization process: Sterilization of foods and beverages is one of the most important keys to maintaining the quality and safety. By using Honeywell TC-IXL061 in sterilization equipment, the sterilization temperature and sterilization time can be accurately monitored to ensure hygiene standards were achieved during the sterilization process, which would also effectively kill pathogenic microorganisms during the process and prolong the products' shelf life.

Air conditioning-temperature control: For smart buildings, naturally, it must be the kind of air conditioning system that could balance indoor and outdoor temperatures, as well as those of personnel activities, to get a comfortable indoor environment. Indoor temperature can be .plugged in real-time by the Honeywell TC-IXL061 as a part-a temperature sensor-for the air conditioning system so it can fed back to the control system for more precise control of the air-conditioning unit, which could improve energy efficiency and reduce operating costs.

Ventilation-monitoring temperature: How the ventilation system works has a direct effect on indoor air quality and personnel comfort. Installation of the Honeywell TC-IXL061 to monitor the duct temperature of the ventilation system allows knowledge of its operation status in time, and ventilation volume and ventilation time can be properly adjusted, which ensures a fresh indoor air supply as well as circulation.
