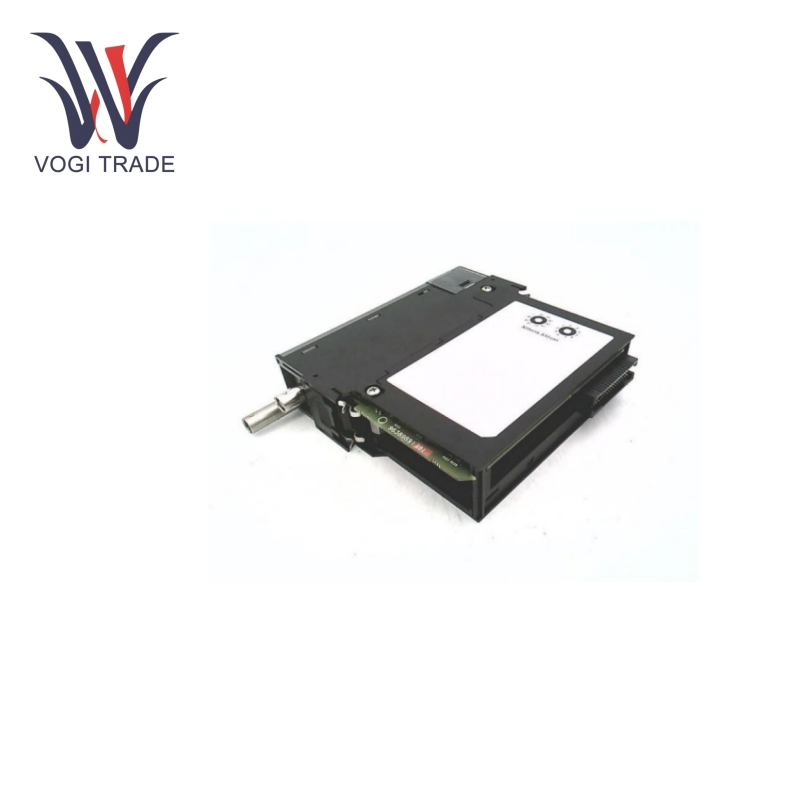

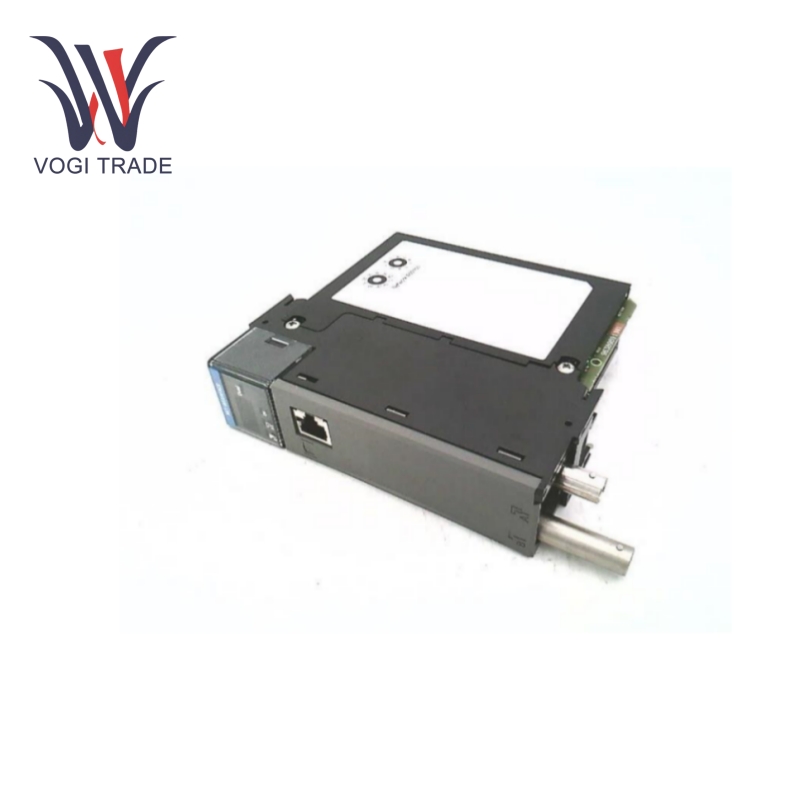

Honeywell TK-CCR013

Specification

Input voltage: 10 - 31.2 VDC

Input signal range: -20 to +85 mV, power consumption: 8.03W.

Communication: Honeywell TK-CCR013 supports ControlNet protocol with a maximum data-rate of 5Mbit/sec.  It can support single cable or redundant operation and is used to connect workstations, controllers and other devices. Honeywell TK-CCR013 uses RG-6 four-shielded cable, BNC connector, and bus topology.

Features

Triple redundancy function ensures system stability: Honeywell TK-CCR013 supports redundant configuration, such as dual network port redundancy, such that when there is a failure in the main network connection, a backup network connection can automatically be activated to maintain unbroken data communication and the orderly function of the system. This redundancy function, especially in highly arduous industrial scenarios with very high requirements of reliability-in key control systems of petrochemical production processes and core-monitoring networks of power systems-can effectively act as a deterrent to serious production accidents as triggered by network failures, disproportionately enhancing the reliability and fault-tolerability features of the overall industrial automation system and ensuring the safe yet smooth running of industrial production.

Accurate signal acquisition and conversion: Besides accurate signal acquisition right from their source to the ICT architecture, Honeywell TK-CCR013 also performs conversion regarding the analog and digital signals with a significantly high rate of precision. Thanks to some precision sensors transmitting weak analog signals such as millivolts voltage signals or milliamperes current signals, the Honeywell TK-CCR013 can have the digital signals suitably collected and accurately converted so as to inform the processes that require such. Honeywell TK-CCR013-dependent systems can accurately measure voltage, current, and other signals, convert them to digital quantities, and carry out very accurate power quality analysis and power parameter calculation, creating a reliable data basis for stable operation and optimizing control of any power system.、

Application

Transportation field: Within urban rail transit systems, Honeywell TK-CCR013 could be used in any monitoring and control systems operating in subway stations. For automatic ticket vending and ticket-checking systems, control systems for elevators, design flow and drainage systems, and control systems of shield doors, the integrated monitoring system could be connected through Honeywell TK-CCR013 to realize centralized management and control with automation of station equipment, enabling improvement in the operational efficiency and service quality of the station and, essentially, ensuring safety and comfort of its passengers.

Smart building field：In larger commercial buildings and a smart park, utilizes Honeywell TK-CCR013 to interconnect HVAC (heating, ventilation, and air conditioning) with the lighting units, water supply and drainage systems, and sprinkler-operating controls for elevator operation, among other things. For instance, through the Honeywell TK-CCR013, the central air conditioning controller is connected to the temperature sensors and fan coil controllers in each zone; this setup allows the air conditioning systems to automatically adjust for temperature and air supply in accordance with the indoor and outdoor environments, as well as personnel activity. The lighting system's dimming controller is connected to both the human body sensing sensor and the light intensity sensor for the intelligent lighting control to improve energy efficiency and comfort in the building.
