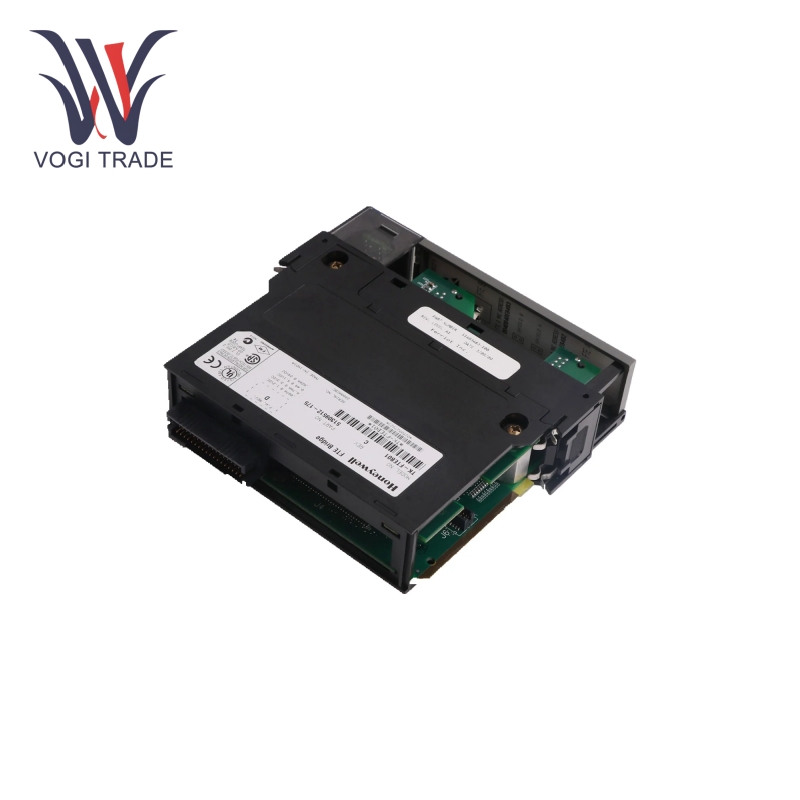

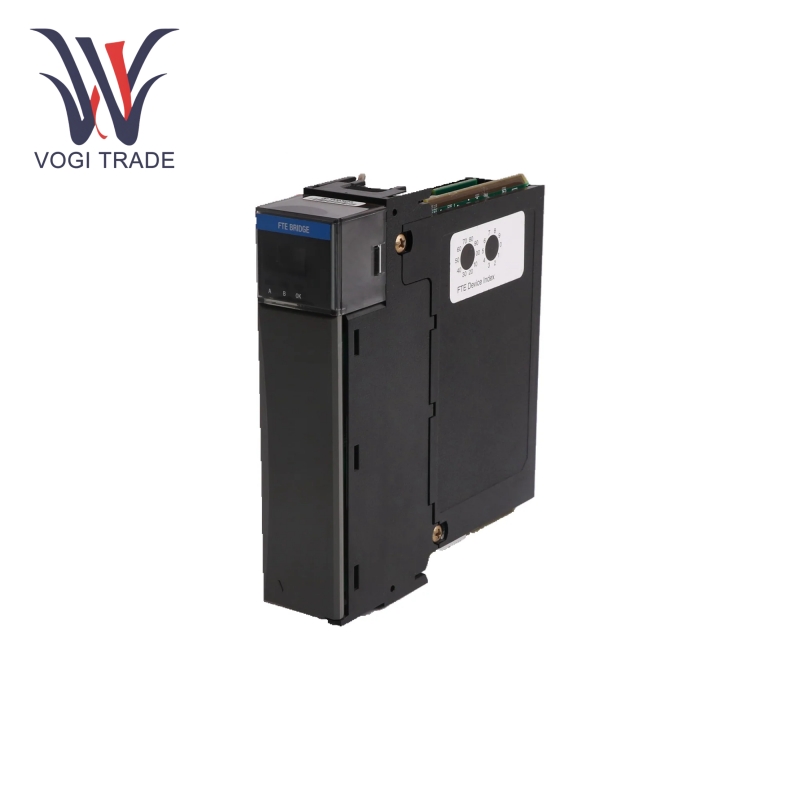

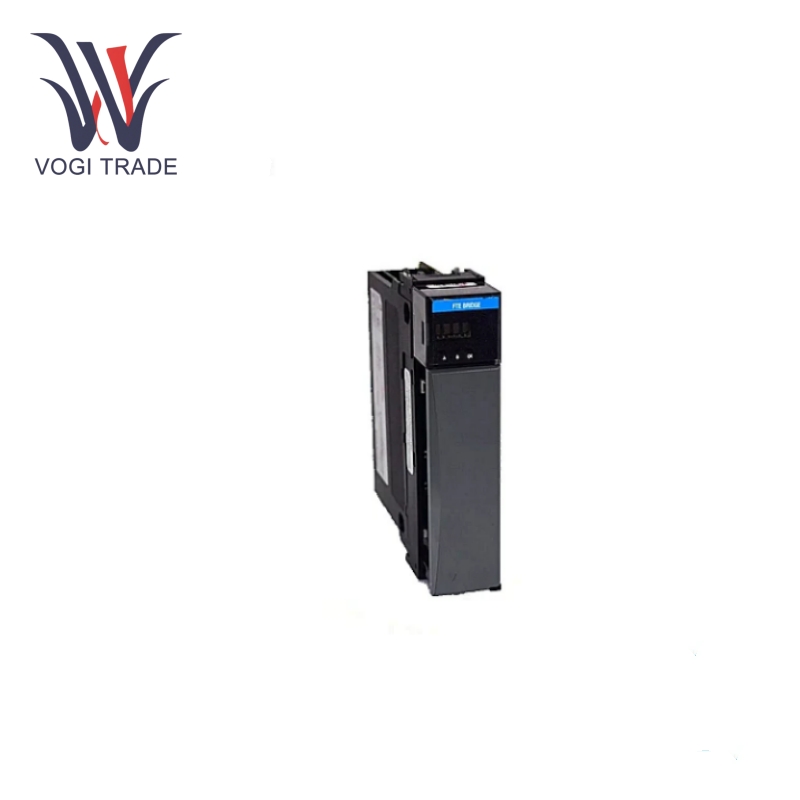

Honeywell TK-FTEB01

Supply voltage: 1.2 - 24 VDC.

Temperature range: from -20℃ to + 70℃.

Storage temperature: From -40℃ to +85℃.

Relative humidity: 5% to 95% (no condensation).

Protection level: IP65, proved dustproof and waterproof.

Speedy performance: Relying on an exclusive high-speed displacement sensing technology, speeds of Honeywell TK-FTEB01 can reach up to 500 mm/min, and measurement accuracies can be ±2um; therefore, working efficiencies increase by dozens of times as compared to other manual measuring instruments, such as tool microscope and measurement projector.

Displacement: Displacement drive is 0.1um, displacement resolution is 0.4um, overlap accuracy is ±2um, and linear accuracy is ±(2.5+l/200) um.

Mechanical load detection: Honeywell TK-FTEB01 has a unique seven-level mechanical load detection which can detect the increased or decreased load in the mechanical facility, sending stop, reverse, and other instructions to the stepper motor. It can offer stall protection position sensing and limit control allowing the decrease of the amount of mechanical limit and proximity switches needed for a design and therefore cost savings.

Features

Redundant design: As a redundant fieldbus interface control network card, Honeywell TK-FTEB01 supports dual power supply input with the reserve being able to take over when one fails, so as not to interrupt system service and facilitate geometric switching from one to another. This also enables redundant backup and fault switching for the fieldbus interface. When the main interface fails, the redundant interface takes over the task of data transmission very quickly and offers continuity to the network and integrity to the data.

Integration craves: One of the greatest advantages of the Honeywell TK-FTEB01 in system integration becomes the adoption of multiple protocols for communication, which adopt modular designs that allow easy coupling with former and third-party equipment/systems without complicated interface conversion and adaption. During the project, engineers can flexibly select the number and types of modules as per the immediate demand which makes the whole system upgrading or extending only as trivial steps. For example, within any automation transformation of a large plant, if a new monitoring point or control loop is supposed to be added, only the corresponding Honeywell TK-FTEB01 module has to be added with only simple configuration inside the control system, therefore easing the integration challenges and cost reductions significantly while at the same time rising project efficiency.

Precision and stability: Among these prove the important advantages of Honeywell TK-FTEB01 are mighty precision and stability in data acquisition and control output. The precise signals acquisition and processing together back the system to grab the exact field data, serving a basis for precise control. The fine adjustment of production process parameters and strict control of product quality are the two excellent key functions it plays.

Application

Grant Energy Management: Honeywell TK-FTEB01 can be fed into an energy management system for general monitoring and control of energy consumption and a reasonable allocation of energy. Real-time monitoring and analysis of energy consumption can be made possible through connection with energy metering equipment, saving devices, etc. It is possible to formulate reasonable energy management strategies that will bring energy savings and reduced costs.

Renewable Energy: For renewable energy generation plants like solar energy and wind energy, the Honeywell TK-FTEB01 is used for monitoring and controlling the operational status of generation equipment, including the output voltage and current of the solar panel, the speed and power of the wind turbine, etc. Power generation efficiency and stability are thus improved.

Aerospace: During the manufacturing and maintenance of aerospace equipment like aircraft and satellites, the Honeywell TK-FTEB01 can be used for monitoring and controlling various key parameters, including the attitude of the aircraft, engine performance, and fuel system status. The parameters being controlled, therefore, make for a safer and reliable operation of aerospace equipment.

Electronic manufacturing: In the production process of electronic goods, the Honeywell TK-FTEB01 controls different types of equipment, such as placement machines, plug-in machines, and wave soldering machines. Connection with the equipment's control systems would enable the precise control of the production process and increase production efficiency and quality of electronic goods. It can also be used to monitor temperature, humidity, static electricity, and other environmental parameters in the production environment, so as to ensure compatibility with requirements.
