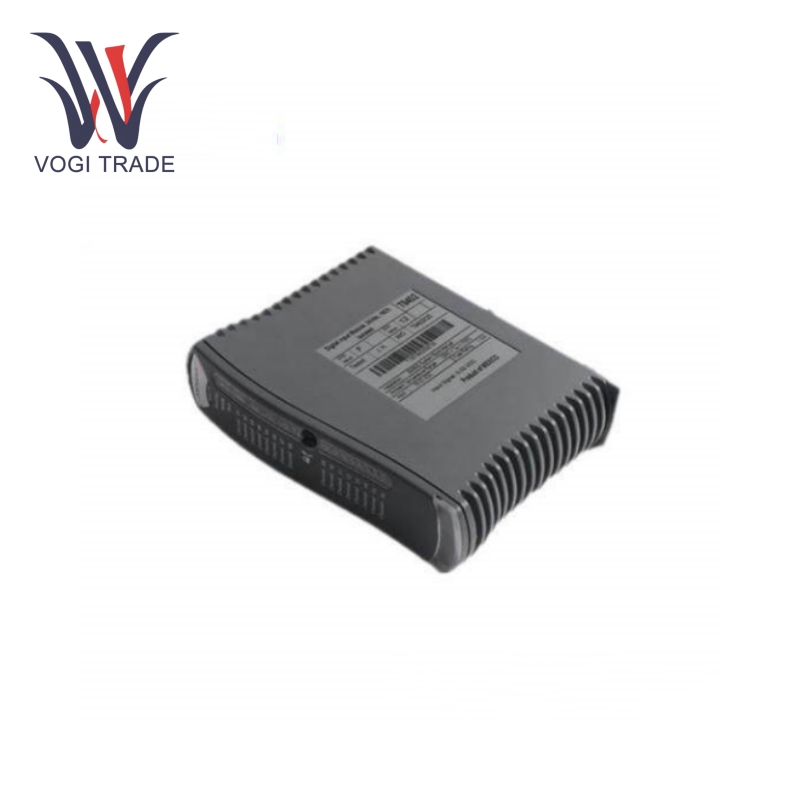

ICS Triplex T8193

Technical Parameter

Processor: 32-bit RISC processor.

Memory: 16 MB RAM, 8 MB Flash.

System Power Voltage Range: 20-32V DC.

Current Consumption: 3.5 A max at 24V DC. Power Dissipation: 80 W.

Digital Inputs: 16.

Digital Outputs: 16.

Analog Inputs: 4.

Analog Outputs: 2.

Operating Temperature: -40 °C to +70 °C.

Storage Temperature: -40 °C to +85 °C.

Relative Humidity: 5% to 95% non-condensing.

Safety: SIL 3 certified.

Channel-to-Channel Crosstalk: >-40 dB.

Typical Accuracy: 0.2% of full scale, maximum 0.5% of full scale.

Function Features

Triple Modular Redundancy (TMR): ICS Triplex T8193 makes use of three identical, independent processing modules running parallelly. Each module performs the same computation and then votes on the results. If any one module happens to fail, the other two will continue operation in a safe manner, thereby achieving an extremely high level of reliability and fault tolerance.

Versatile Programming Environment: ICS Triplex T8193 offers a plentiful programming environment that supports multiple programming languages such as ladder logic, functional block diagram, and structured text. Such flexibility enables engineers to choose the most suitable language for a certain control task and develop complex control strategies with ease.

Advanced Communication Ability: It offers various communication interfaces like Ethernet, serial ports, and field bus protocols like Profibus and foundation field bus. Therefore, it can easily be connected with other devices and systems in the industrial network for data exchange and coordinated control.

Flexible and Scalable: ICS Triplex T8193 is easily configurable and can be easily expanded to meet the changing requirements of industrial processes. Furthermore, adding new I/O points, expansion of memory, and integration of new functions can all be accomplished with relative ease.

Efficient Diagnostic and Maintenance Tools: It is equipped with many fully embedded diagnostic tools that detail faults in the system or within the connected devices with great precision and in good time. That is very important due to reduced maintenance of the repairs undertaken, which tends to maximize the overall system availability.

Applications

Oil and Gas Industry: ICS Triplex T8193 is used in offshore platforms and refineries in controlling critical processes such as wellhead control, pipeline transportation, and distillation operations. Its extended range of services provides high reliability in ensuring the safe extraction, processing, and transportation of oil and gas.

Chemical Processing: It controls complicated chemical cycle processes for process flow in chemical plants and temperature and pressure control in material flow in reactors. The fine degree of control provided by the ICS Triplex T8193 is what guarantees product quality and process safety.

Power Generation: It plays a crucial role in power plants, controlling the boilers, turbines, and generators. In addition, ICS Triplex T8193 does the grid synchronization and distribution of electricity ensuring a stable and reliable supply.
