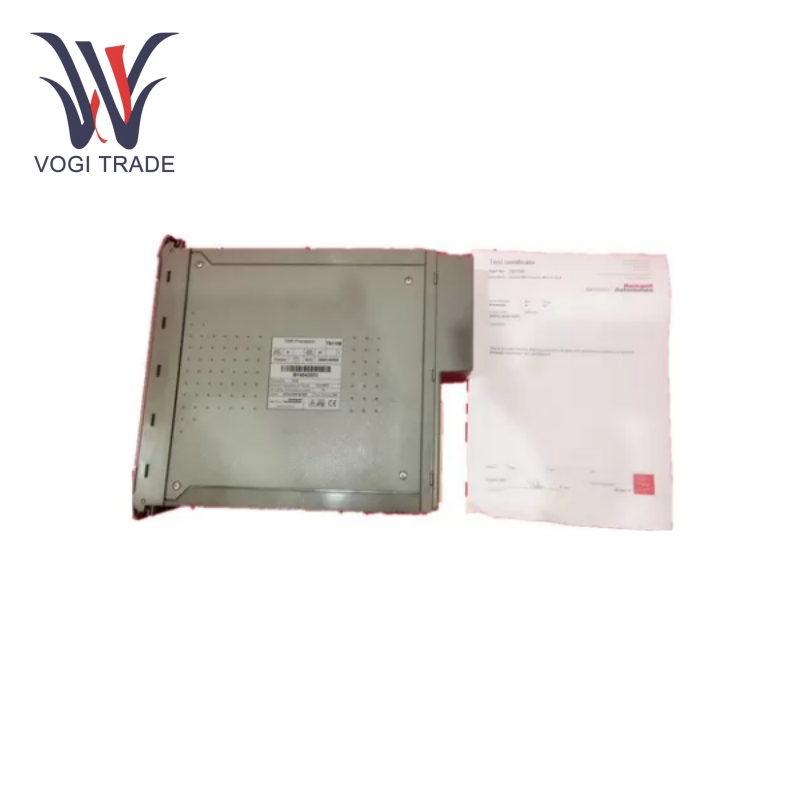

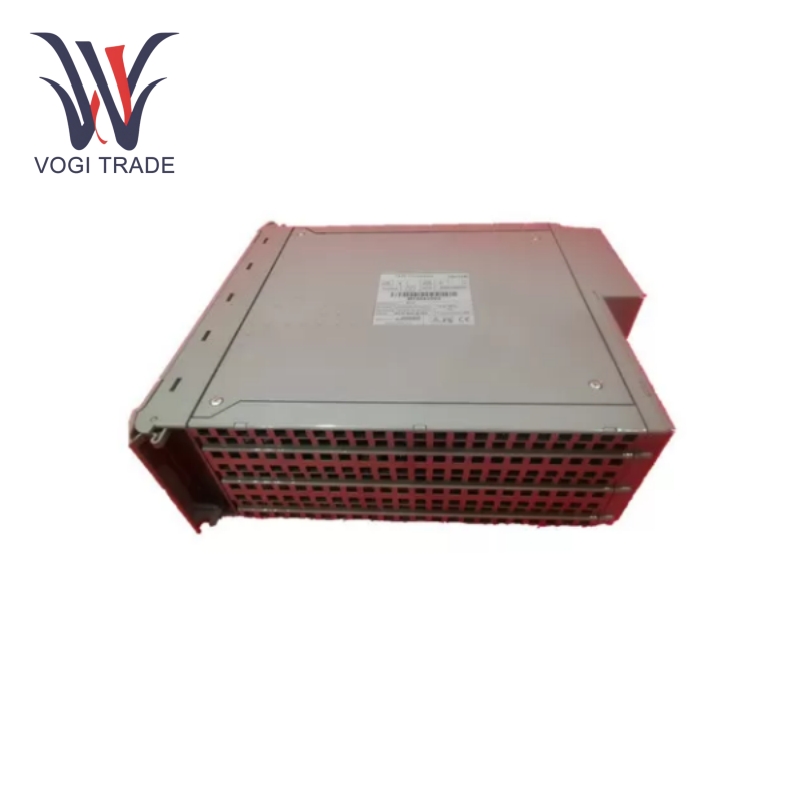

ICS Triplex T8292

Technical Parameter

Input Voltage: 24V DC.

Output Voltage Range: 0 to 60V DC (measurement range), -1 to 60V DC (tolerance).

Rated Output Current : 0.75A per channel, 6A per power group.

Output Update Rate: 4ms per channel.

Filter Response: Software adjustable with options of none, 8, 16, 32, 64, 128, 256, 512 and 1024ms.

Typical Accuracy: 0.2% of full scale, maximum 0.5% of full scale.

Operating Temperature: -40°C to 70°C.

Time Synchronization: Supports IRIG-B time signals.

Channel Crosstalk: >-40dB.

Output Short-Circuit Protection: Electronic (latching).

Function Features

Versatile Communication Interface: The communications interface includes Multitude: Ethernet, Modbus, and TCP/IP. ICS Triplex T8292 has been designed to communicate with a wide range of industrial equipment, including sensors, actuators, PLCs, and SCADA systems. The interplay of these numerous interfaces therefore allows for total control and monitoring of entire industrial processes.

Fault Monitoring and Indication: ICS Triplex T8292 builds in monitoring circuits and alarm outputs to ensure that problems with power distribution or internal components can be detected and asserted without delay. This can facilitate proactive maintenance while reducing the risks of surprises with system failures.

Time Synchronization: ICS Triplex T8292 can synchronize with the IRIG-B time signal, which can support time stamping events and data. This is essential in certain applications like power generation and process industries where data logging and the analysis requires synchronization with specific time.

Power Distribution and Protection: Power distribution and protection by separate MCB for each output channel would provide power to various components while also protecting from overcurrent and short-circuit conditions.

Reliability: Strong protection against power output, connection to fault-tolerant processors, and complete monitoring functions make ICS Triplex T8292 one of the most reliable models. ICS Triplex T8292 provides virtually continuous operation in a harsh industrial environment with minimum down-time, thus ensuring that production processes are not interrupted.

Flexibility: The wide range of communication protocols and the configurable ports allow it to adapt to differing industrial arrangements and requirements. It can be integrated into old or new systems to control processes easily, irrespective of the specific devices and technology in use.

Applications

Industrial Automation: It is most widely used in factory automation systems for driving and controlling motor drives, solenoid valves, and industrial robots. ICS Triplex T8292 helps in the coordination of these devices and enables a smooth-running production line.

Power Generation: It can be used in power plants for distributing power to control systems, instrumentation, and auxiliary equipment. The time synchronization feature is very useful for synchronizing events and data across different subsystems in the power generation process.

Process Control: ICS Triplex T8292 serves in the chemical, petrochemical, and pharmaceutical industries to provide power and protection for process control equipment. This ensures the reliable operation of sensors, controllers, and actuators for maintaining critical process parameters such as temperature, pressure, and flow.

Oil and Gas: ICS Triplex T8292 is used for interior and exterior oil and gas setups to power and track equipment in drilling, production, and transportation processes.
