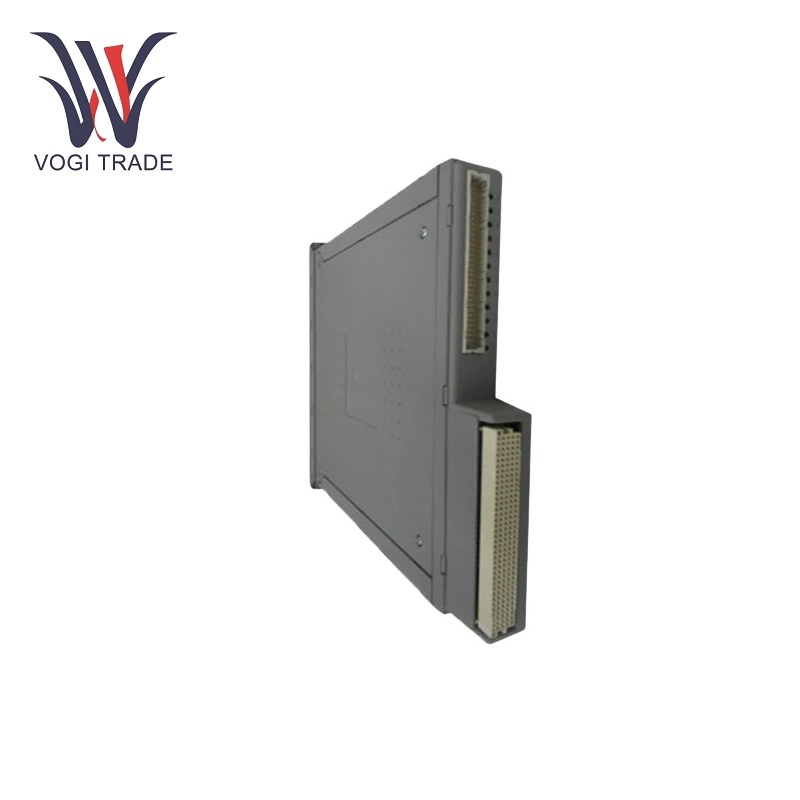

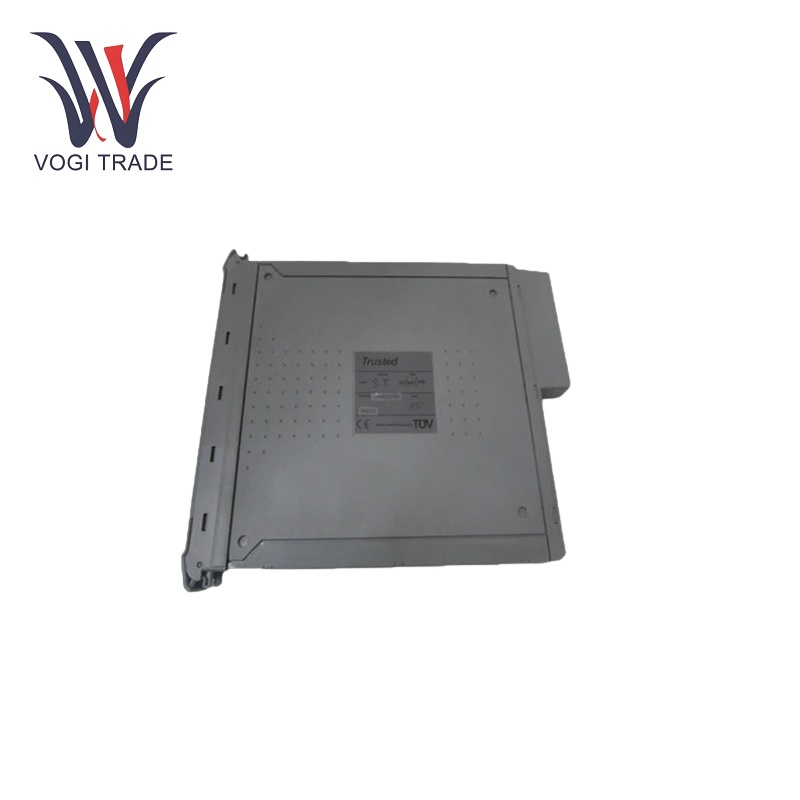

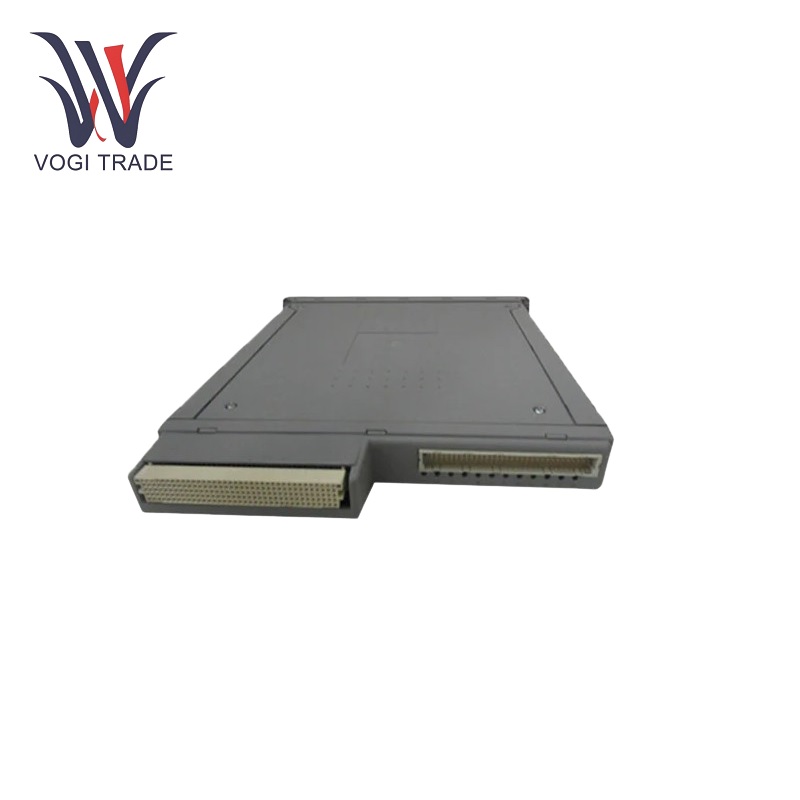

ICS Triplex T8431C

System range: 20-32V DC

No. of inputs: 40 channels.

User-defined thresholds: 4-off.

Input current range: 0 to 22mA.

Input voltage range: 0 to 6 VDC.

Sample update time: 0.5 ms.

Resolution: 3.9 µA (1/256mA).

Safety accuracy: ±1% of full scale.

Calibration accuracy: 0.03%.

Sustained working: ±250 V DC.

Maximum withstanding: ±2.5 kV DC.

Channel-to-channel crosstalk: -40 to -60 dB.

Event resolution: 1 ms.

Time-stamp accuracy: ±0.5 ms.

Operating temperature: -5 °C to 60 °C.

Non-operating temperature: -25 °C to 70 °C.

Temperature change rate: 0.5ºC/min.

Functional Features

Advanced Programming Environment: ICS Triplex T8431C provides a comprehensive and user-friendly programming environment for a variety of programming languages such as ladder logic, function block diagram, and structured text. Thus, engineers are empowered to develop custom control strategies and applications with ease and to tailor them to the specific requirements of their unique industrial processes.

Real-Time Monitoring Diagnostics: The system continuously monitors its internal components, I/O channels, and connected field devices in real time. ICS Triplex T8431C can well detect any faults, errors, or abnormal conditions that may arise, providing the operator with meaningful diagnostic feedback. This active monitoring leads to effective preventive maintenance that minimizes downtime while maximizing system availability.

Hot-swappable Components: Many critical components, such as I/O modules and power supplies, are hot-swappable so that replacement can be done without shutting down the entire system, certainly reducing the impact on the industrial plant and further increasing uptime.

Seamless Integration: With multiple communication interfaces and diverse industrial protocols, ICS Triplex T8431C smoothly integrates into existing industrial control and automation systems. It may thereby communicate and interact with other devices and systems in forming a total industrial ecosystem characterized by efficiency.

Applications

Petrochemical Industry: ICS Triplex T8431C is extensively used in refinery and chemical industries for controlling complex processes like distillation, polymerization, and catalytic cracking. This ensures fine control of temperature, pressure, and flow with respect to product quality and process safety.

Power Generation: It is applied in power generation, it is turbine control, generator protection, and grid synchronization. This aims at optimizing power generation efficiency and maintaining grid stability and reliability.

Aerospace and Defence: ICS Triplex T8431C is used in aerospace manufacturing and defence systems for control and monitor critical components and processes. It provides high-reliability control for flight systems, missile guidance and military equipment operation.

Industrial Automation: ICS Triplex T8431C is extensively used in a vast range of manufacturing industries in process automation, robotic control, and quality control. This allows for efficient assembly lines, less human error, and an improvement in productivity.
