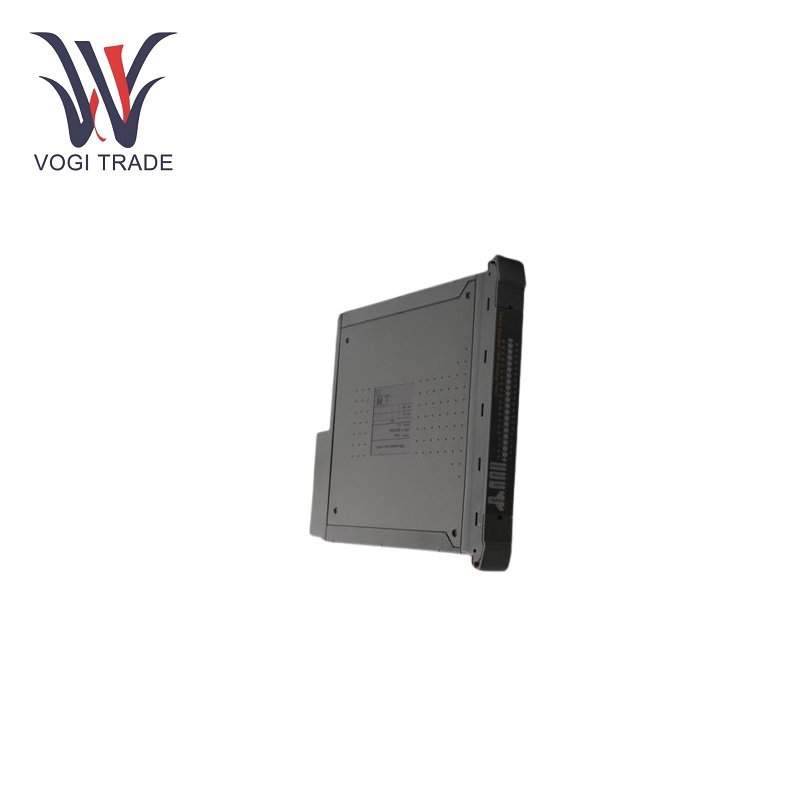

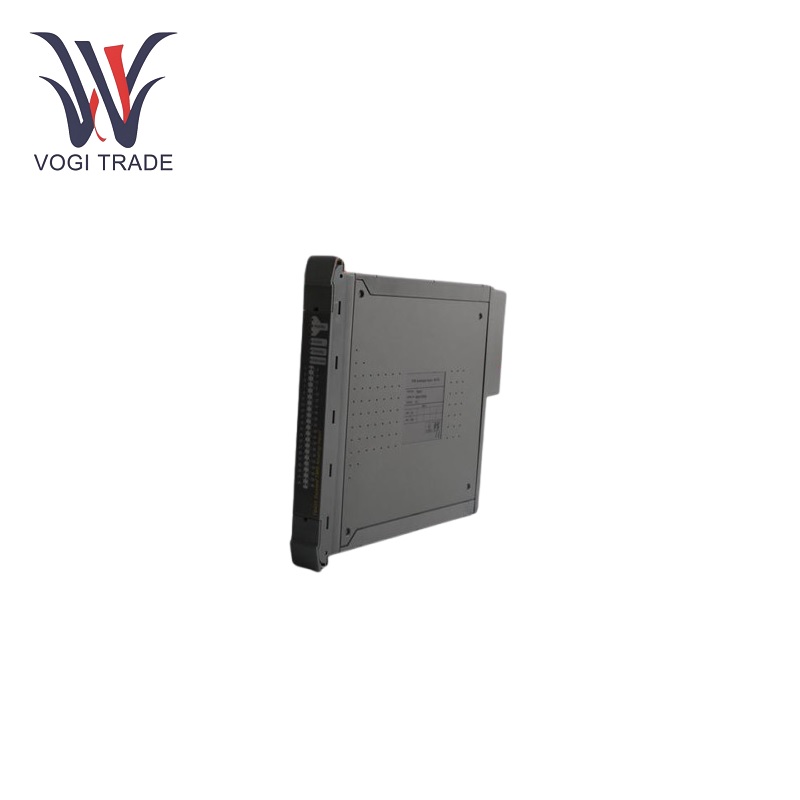

Brand: ICS Triplex Description: Trusted TMR 24/48Vdc Digital Output Condition: New Certificate:COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment term: T/T Shipping Port: ShenZhen Strong core processing capabilities enable ICS Triplex T8442 to deal quickly and precisely with massive amounts of industrial data.
Manufacture |
ICS Triplex |
Model Number |
T8442 |
Ordering Number |
T8442 |
Catalog |
- |
Country Of Origin |
United States |
HS CODE |
8538900000 |
Dimension |
3*30.5*26.5cm |
Packing Dimension |
6*33*29cm |
Weight |
1.24kg |
Technical Parameter
System Power Voltage Range: 20 to 32Vdc.
Work Output/Field Voltage Range: 18 to 60V DC.
Rated Output Current: 0.75A per channel, 6A per power group.
Power Consumption: 18W for field power.
Monitoring Output Quantity: 40 channels.
Independent Power Group: 8 outputs with 5 each.
Output Voltage Measurement Range: 0 to 60V DC;
Output On-State Resistance: 0.6Ω .
Output Short-Circuit Protection: Electronic (latching) .
Channel Crosstalk: >-40dB .
Update Rate per Channel: Every 4 ms .
Software Adjustable Filters: No, 8, 16, 32, 64, 128, 256, 512 and 1024mS .
MTBF: >200,000 hours .
Function Features
Quadruple Modular Redundancy (QMR) Architecture: ICS Triplex T8442 comprises four independent and identical modules that process simultaneously, with a voting scheme in place to determine the output at fault. This specific architecture gives the system a very high fault tolerance and reliability because it can still continue operating during failure of up to two modules.
Comprehensive Programming Environment: ICS Triplex T8442 has an immensely powerful and flexible programming environment. It supports the programming environment consisting of an array of visual programming languages, including ladder logic, function block diagrams, and structured text. With it, the engineering staff can develop custom control strategies and protection functions to the specific requirements of the industrial process.
Real-Time Monitoring and Diagnostic Tools: ICS Triplex T8442 has, besides very advanced real-time monitoring and diagnostics capabilities, a capacitive monitoring and diagnostic based in the real-time status evaluation of its internal components, input and output channels, and connected field instruments that, in case of failures or abnormal events, can analyze and report faults quickly. This maintenance-oriented approach thus minimizes downtime with productive realizations in the industry.
Applications
Petrochemical and Chemical Processing: ICS Triplex T8442 can control and monitor complex processes, including the reactor operation, distillation columns, and pipeline systems. It enables precise process control, safe interlock operation, and reliable operation in those hazardous atmospheres.
Nuclear Power Generation: ICS Triplex T8442 plays a significant role in nuclear power stations controlling reactor systems, the facilities of the emergency shutdown and monitoring of key characteristics. High reliability and safety features of it are very important for the safe and efficient operation of nuclear reactors.
Aerospace and Defense: ICS Triplex T8442 has wide-ranging uses in the aerospace and defense fields for applications like flight control systems, missile guidance, and other important applications where reliability and security are of prime importance. These industries have the kind of harsh operating conditions and high demand that can be ably met by it.
Process Automation in General Industry: ICS Triplex T8442 automates production processes, enhances product quality, and assures the safety and reliability of industrial operations.
