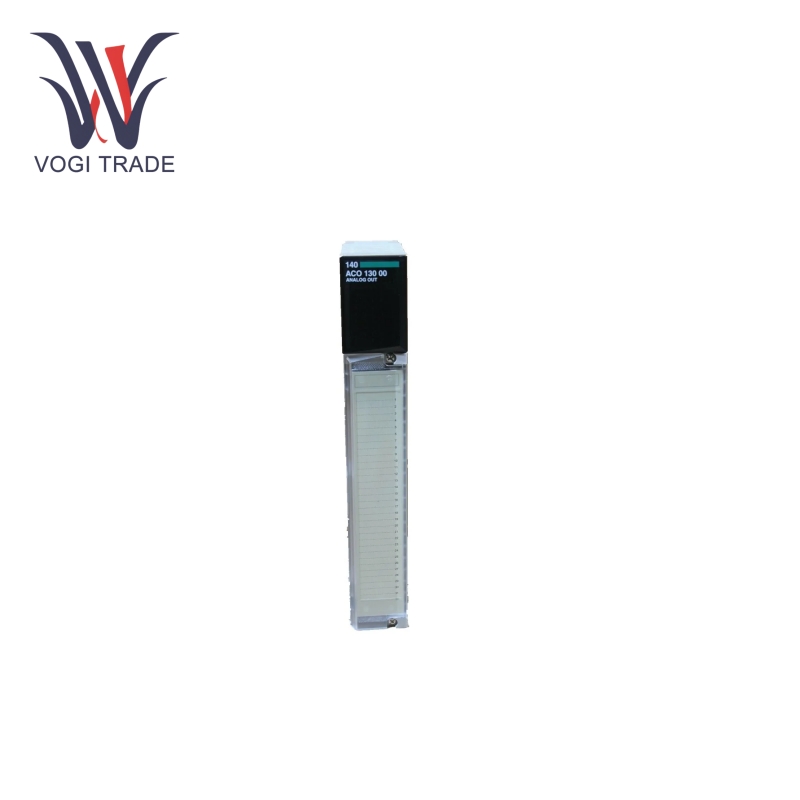

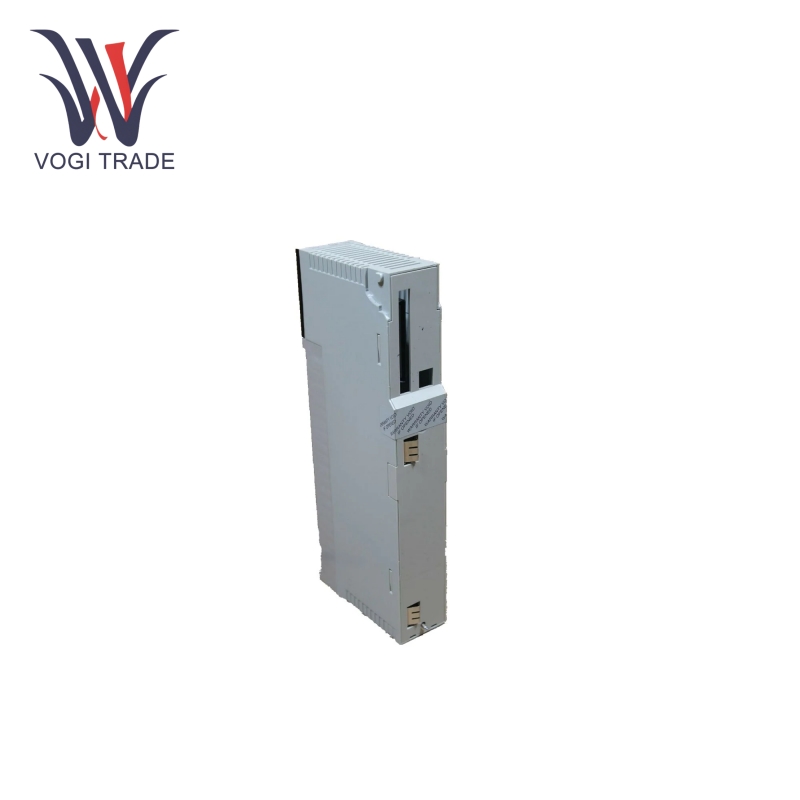

Schneider 140ACO13000

Specification

Output channel: Out of all 8 output channels, the Schneider 140ACO13000 can precisely control multiple devices simultaneously.

Output range: Including 0-10V, ±10V, 0-20mA, 4-20mA, etc. Multiple Options Addressing Different Input Conditions For Several Devices.

Resolution: 16 bit resolution enables high accuracy of the output analog signal and guarantees the accuracy and stability of the output signal.

Update rate: The update capability of the Schneider 140ACO13000 is at a level of 100kHz to fit the real-time control situations where system delays need to be made small in responding very quickly to the control signal.

Setting time: From 1.6 ms for 95% of the final value and 3.2 ms for ±0.1% of the final value ensuring accurate and efficient control of the analog output.A 2500Vrms-isolation voltage, achieved with an isolation design between the channel and the bus, effectively prevents the interference of external interference signals and improves the system's reliability and stability.

Working voltage: The range is 6 to 30V DC; the Schneider 140ACO13000 is able to adapt in a wide voltage range and ensure compatibility with various devices and systems whose voltage drop characteristics lead to a stable performance under varying loading conditions.

Power consumption: 5W is its power consumption; efficient power management enables moderate external power supply requirements from 6 to 30V - in order to save energy from the controller's operating conditions.

Features

High-precision output: The Schneider 140ACO13000 implements analog output with an ambiguity of 16 bits and full-scale absolute accuracy error of ±0.2% at 25°C, delivering remarkable accuracy and linearity that grant the analog output actual control over physical measures like temperature, pressure, flow, and other industrial processes.

Monitor the faults: Schneider 140ACO13000 features 8 channel fault indicators (LEDs), 8 channel friction indicators; some more indications for external faults and status indicators for the bus communication that can show in real-time, working and fault information of the module, thus providing for a user to find and troubleshoot promptly, increasing reliability and maintainability of the system.

Application

Chemical production: On the production lines in large chemical companies, Schneider 140ACO13000 analog output modules are responsible for controlling temperature, pressure, and content of various chemical reactors. With a combination of PLC control systems and sensors, valve opening motor speeds can be precisely tuned to the preset process parameters, thus allowing the chemical reaction processed under optimal conditions which not only enhances the output and quality of the product but also cuts down on energy consumption and production costs.

Smart Building: Most of the modern commercial office buildings use Schneider 140ACO13000 analog output modules for sophisticated control of their HVAC systems. To maintain a thoroughly pleasant indoor environment, it automatically adjusts the cooling capacity, air volume, room temperature, outdoor air volume, and similar features according to temperature and humidity inside and outside the building, as well as real-time information on many other parameters-examples being office occupancy and so forth. The energy savings are remarkable, along with savings in operating costs-attainable by optimizing disposal strategies.

Water Treatment Field: In the water filtering and sedimentation field, the municipal wastewater treatment plant uses Schneider 140ACO13000 analog output modules to control some of the key equipment in the sewage-disinfection process. For example, the Aeration subsystem of Schneider1394 controls the concentration of dissolved oxygen in the effluent through adjustable airflow into the aeration tank and flow to the dosing pump for precise feeding of the required amount of chemical reagents for the disinfection process, per its set point to ensure compliance with the national sewage discharge standards. With the guaranteed high reliability and accurate output of the Schneider 140ACO13000, the treatment system runs smoothly, effectively safeguarding the urban environment.
