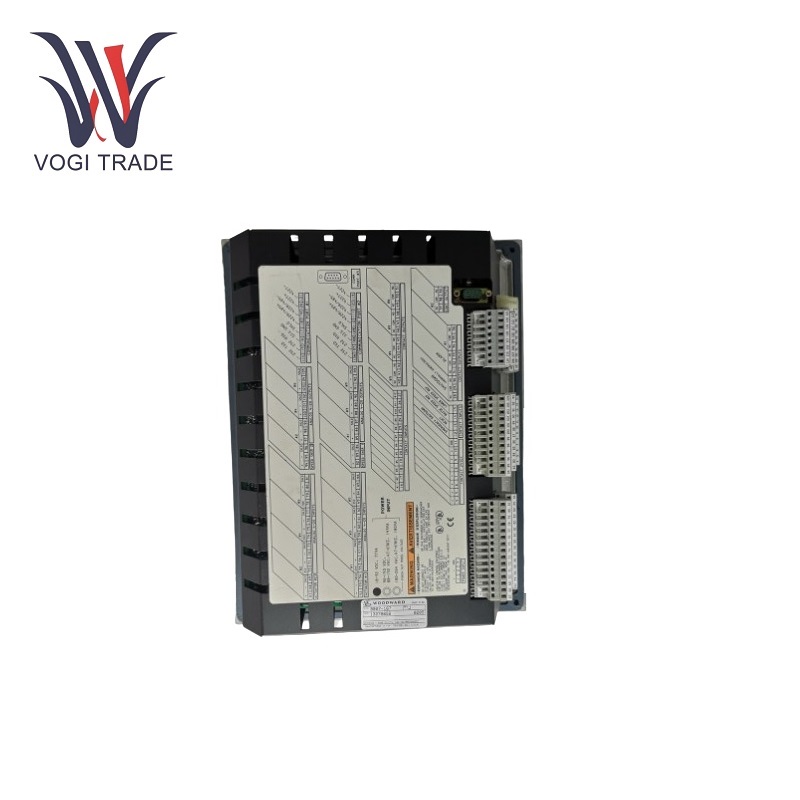

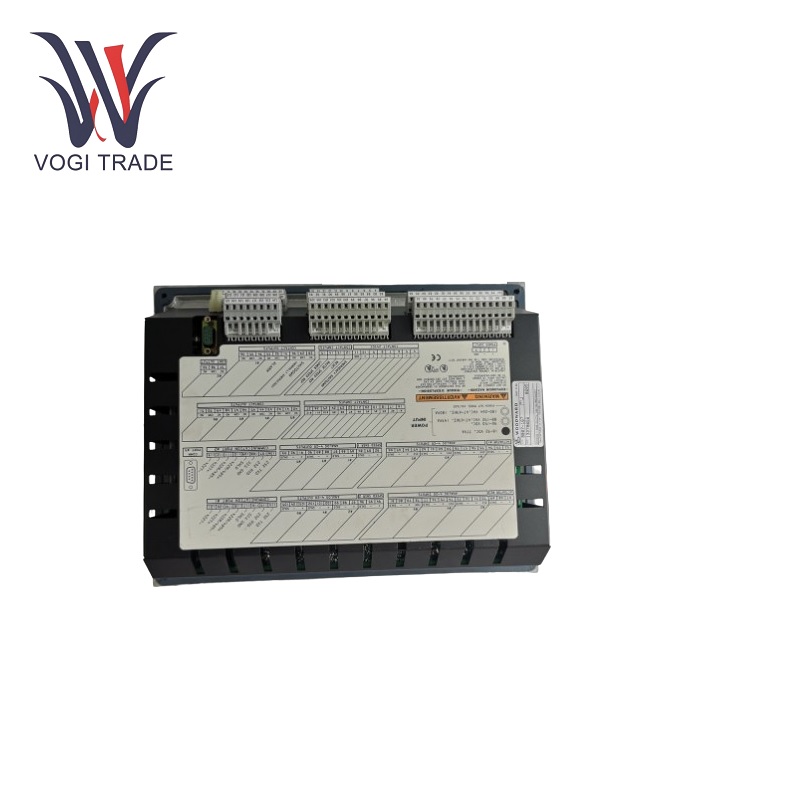

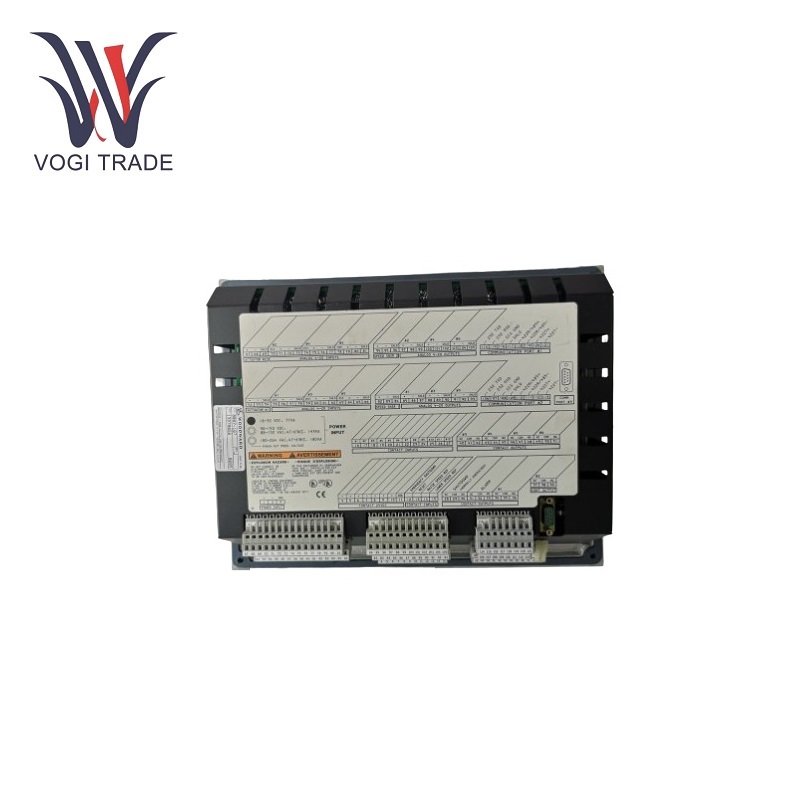

Woodward 4-314871-1

Technical Parameters

Power Input: The input voltage range of Woodward 4-314871-1 is generally 100 - 240 VAC, so it is compatible with common power ranges to adapt to industrial environments. It can operate in a wide voltage range of 10V to 30V, making it compatible with a variety of electrical systems.

Rated Current Meaning: The rated current of a device indicates that the device can handle large currents, that is, ultra-high power requirements of various connected peripherals and loads. (This is critical to keep the operation stable when dealing with relatively high power consumption devices.)

Response Time: A fast response time value, such as less than 10 milliseconds, can quickly respond to changes in input signals. Such a low response time is very important for applications that require instant changes.

Features

Type - Advanced Control Algorithms: The Woodward 4-314871-1 uses sophisticated control algorithms, and it can use these algorithms to perform complex control tasks such as proportional integral derivative (PID) control. This PID (proportional integral derivative) control function continuously calculates the error value as the difference between the desired set point and the measured process variable, and applies corrections based on the proportional, integral, and derivative terms, hence the name. - For example, in temperature control applications, it can maintain very tight tolerance temperatures.

Fault Detection and Diagnosis: This product is installed with an intelligent fault detection and diagnostic system. TATVD9E - Limited to internal and external function detection - continuously monitors and detects anomalies. When a fault is detected, it not only alerts the operator but also provides diagnostic information. This feature minimizes downtime because it enables maintenance personnel to quickly identify the problem and take corrective action. For example, if one of the sensors fails, the system can accurately determine which sensor failed and what type of fault occurred.

Modular Design: It has a modular structure that allows for easy customization and expansion. Some modules can be replaced or others can be added. This modularity enhances its versatility, making it ideal for a variety of industrial applications. In addition, a communication module can be added to make it compatible with a variety of industrial networks.

Data logging and analysis: The device can record data over a period of time. For example, in the figure, the Woodward 4-314871-1 records the important parameters of the system: input and output values, operating time, and fault events. It can be used when you want to analyze how the system performs at a certain point in time, because the data is recorded and can be called up. Operators use this data to optimize system performance, predict potential failures, and plan maintenance and upgrades.

Application scope

Power plant: It is applied to power plants to control the entire power generation process. It controls the speed and load of the turbine to achieve efficient and stable power generation. It also synchronizes the generator output to the grid to ensure the quality of power supply. Whether it is coal-fired, gas turbine or hydroelectric power generation, the Woodward 4-314871-1 helps improve the efficiency of the entire device.

It is deployed in manufacturing plants, such as machine tools, conveyor systems, and automated production lines. It controls the spindle speed and feed rate for precision machining tasks in machine tools. In the case of conveying systems, it controls the speed and torque of the motor to provide smooth and efficient material handling. It also coordinates the operation of multiple machines and processes on automated production lines to improve productivity and product quality.

Oil and Gas Industry: It is used in pumps, compressors, and drilling equipment in the oil and gas industry. It is used to control the speed and power of pumps and compressors and enhance the flow of liquids and gases. The Woodward 4-314871-1 is used in drilling applications to control the power and speed of the equipment and provide precise monitoring of the drilling process.

Power Regulation and Control in Wind Turbines and Solar Inverters: such as the Woodward 4-314871-1. For wind turbines, it regulates the blade pitch and generator speed to optimize power generation and avoid overloading the turbine. It is used in solar inverters to convert the DC power generated by solar panels into AC power while keeping the current stable for injection into the grid
