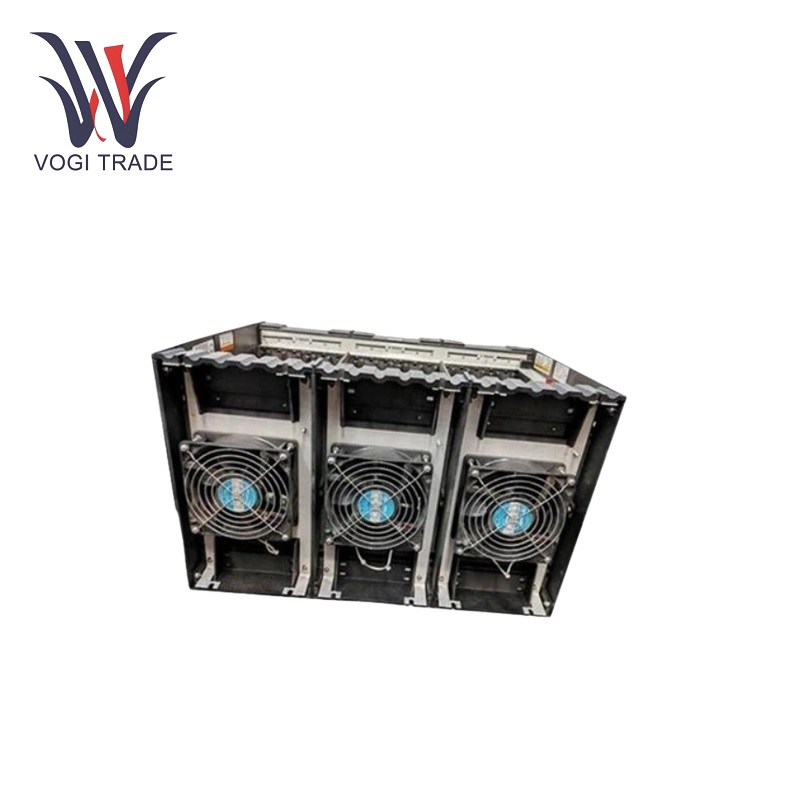

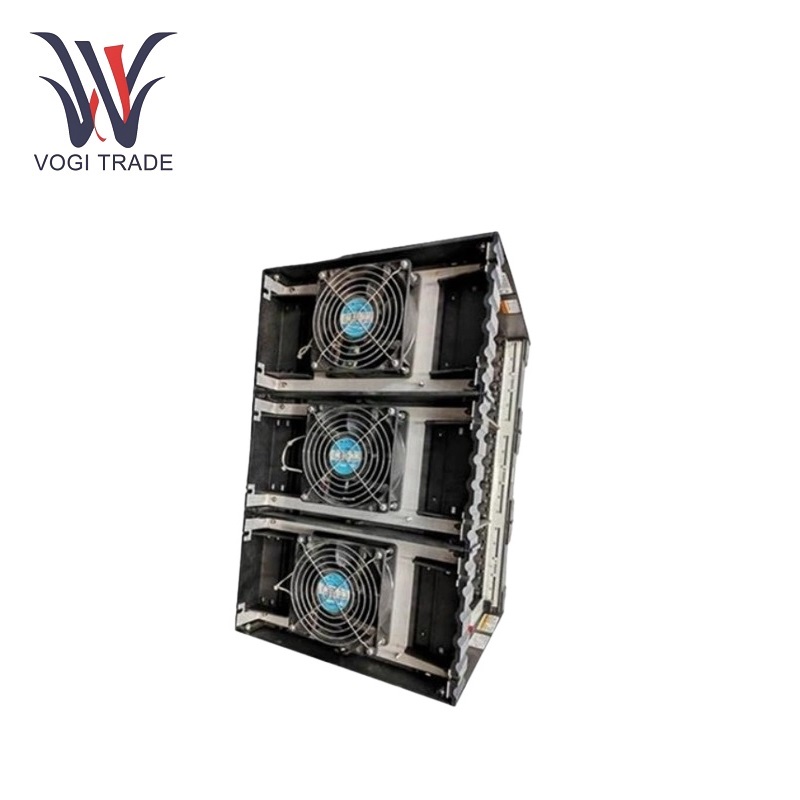

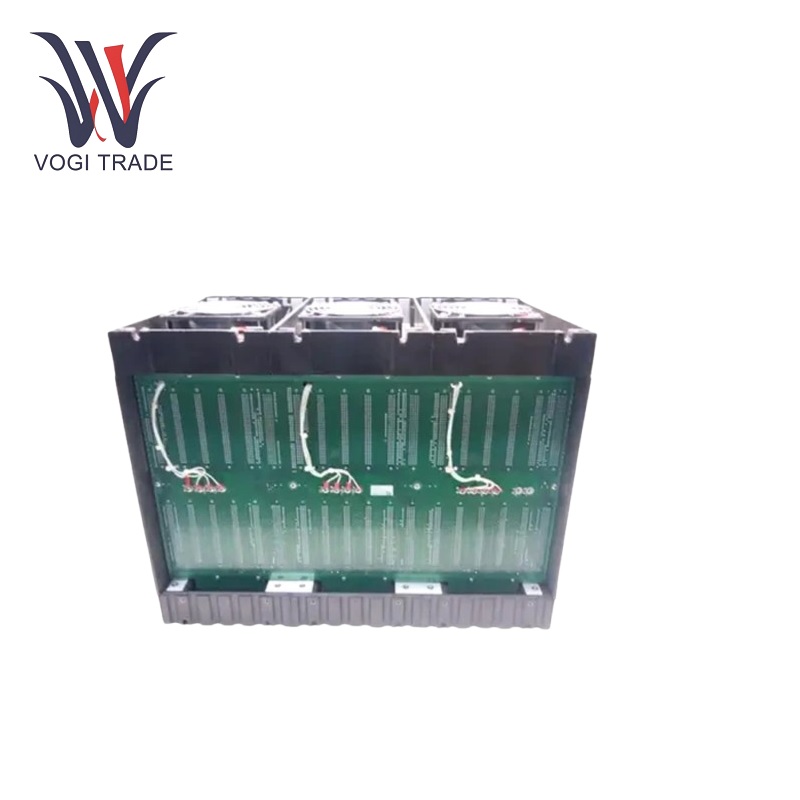

Woodward 5453-279NEW/5501-424D

Technical parameters

Voltage compatibility: The Woodward 5453-279NEW/5501-424D is voltage compatible with 12-32 VDC. The wide input voltage range allows it to adapt to many power configurations in industrial facilities. It should have an internal voltage regulator to stabilize the voltage level and allow the device to operate normally, no matter how high or low the input voltage is.

High ampere handling capability: The device can handle currents up to 24A. This enables it to control the power requirements of a range of connected modules. Whether it is a small current draw from a sensor or actuator, or a more power-hungry device, it can provide the appropriate amount of power in proportion.

Data verification: All measurement data is verified according to predetermined logic to avoid unnecessary control actions. It can detect and adapt to small changes in the monitored parameters, coupled with high resolution, thereby improving the performance of the entire system.

Fast response: The response time is less than 5 milliseconds, which can quickly respond to changes in input signals. This fast feedback response is critical in many industrial processes, as control parameters must be adjusted simultaneously to maintain stability and optimize performance.

Features

Advanced control algorithms: Woodward5453-279NEW/5501-424D employs intelligent control algorithms. Examples of such methods include PID (proportional-integral-derivative) control, which continuously adjusts the output value based on the error between the desired setpoint and the measured process variable. It can also use adaptive control algorithms to automatically fine-tune control parameters as system characteristics evolve. This enables optimal control at different operating points and throughout the life of the equipment.

Powerful protection mechanism: The product has comprehensive protection functions. It has overvoltage and overcurrent protection circuits to prevent internal components from being damaged during surges or excessive current draw. It also has thermal protection to prevent overheating, providing long-term reliability and durability for the equipment. If any abnormality occurs, the protection mechanism will start to notify the operator or implement corrective measures.

Data logging and analysis capabilities: The system can record and analyze key parameters (such as input and output values, operating hours, and any fault events) over time. It finds recorded inputs and analyzes them afterwards to provide an overview of system performance. Operators can predict potential failures, better plan maintenance activities, and optimize system settings—all by analyzing trends and patterns in the data. This data-driven approach optimizes the uptime and efficiency of equipment industrial processes.

Communication Interface: Woodward 5453-279NEW/5501-424D Communication interfaces include RS-485 and Ethernet. These interfaces can be easily embedded into industrial networks and communicate with other controllers, sensors, and actuators. It can receive control commands from a central controller through these communication channels and report status and diagnostic information. It enables these complex industrial systems to operate in a coordinated manner and be centrally monitored.

Application Scope

Industrial Manufacturing: One of the common architectures used by manufacturing plants to control processes. It is used to control the spindle speed and axis motion of CNC machine tools with high precision, so that parts can be accurately processed. In factories, it controls the speed and function of conveyors and robots to optimize production efficiency and product quality. It is also used to maintain the correct temperature, pressure, and flow in industrial furnaces and chemical reactors.

Power Generation and Distribution: Woodward 5453-279NEW/5501-424D is also used in power plants to operate generators and distribution equipment. It plays a vital role in controlling the voltage and frequency of power generation, ensuring that they match the needs of the power grid. In addition, it protects the power generation and distribution systems from faults, ensuring a stable power supply. It participates in power regulation and grid integration of renewable energy power plants such as wind and solar farms, helping to optimize the conversion and transmission process of energy.
