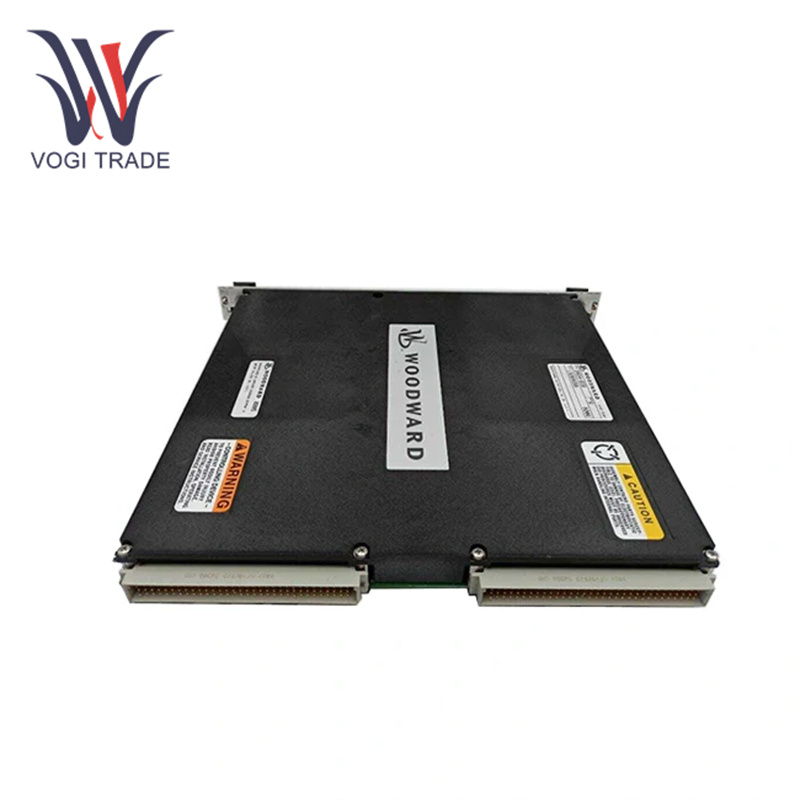

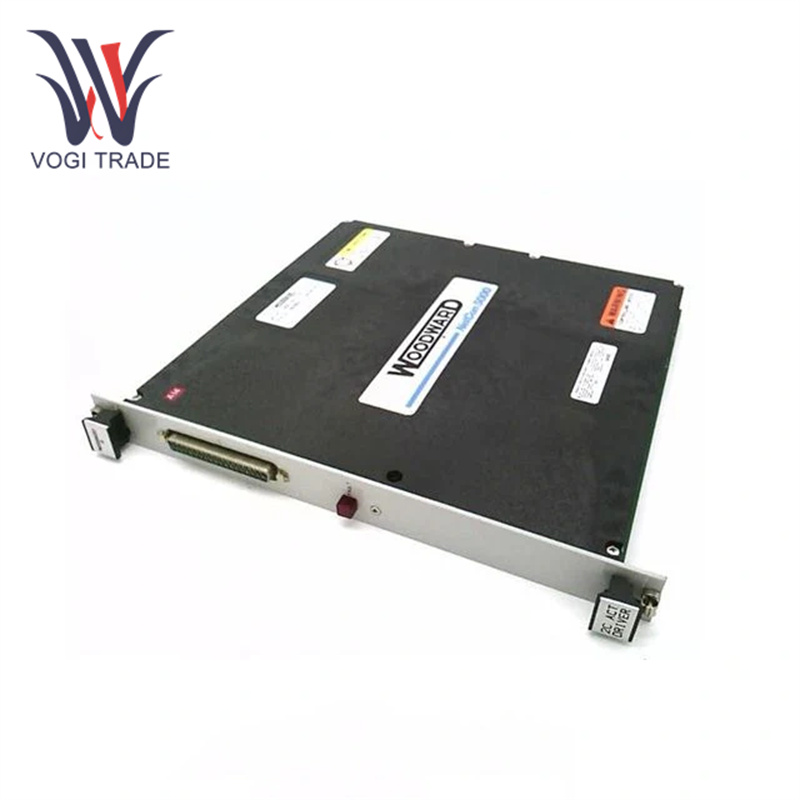

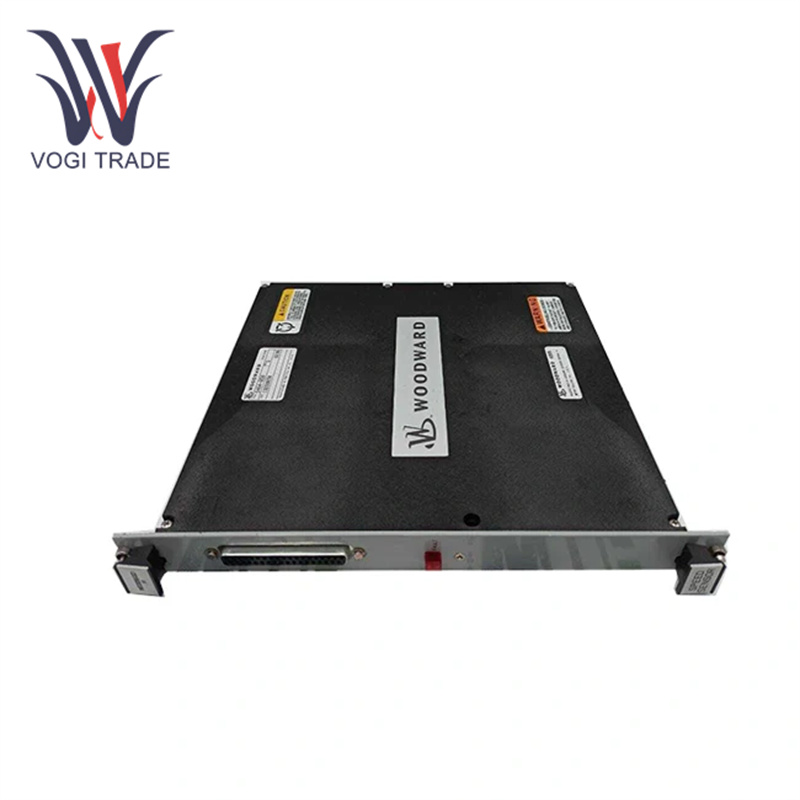

Woodward 5466-348

Technical parameters

Voltage input range: 18 - 32 VDC. This specific range allows it to be used in a variety of industrial power supply environments while ensuring power supply stability and flexibility. Tolerance to slight voltage changes: The durable LED power supply operates at a low DC voltage, allowing it to resist slight changes without affecting functionality.

Output current capacity: The Woodward 5466-348 has a high output current capacity. This enables it to power a wide range of industrial loads from relatively small actuators and sensors to more power-hungry devices. Controlling such current is key to maintaining the normal function of connected components and systems.

Frequency response:  Woodward 5452~5466 5466348. Its wide bandwidth enables it to effectively process signals of various frequencies. This enables the Woodward 5466-348 to effectively process signals and direct outputs for use in situations such as motor speed control or vibration analysis, where frequency-related selling points are critical.

Accuracy and Resolution: Large accuracy values (approximately ±0.2%) and high resolution enable you to detect and control subtle differences in monitored parameters. This accuracy is critical in applications that require high precision, such as fine-tuning high-end manufacturing processes or controlling the stability of important industrial systems.

Features

PID control: It implements a PID control algorithm that continuously calculates the error value as the difference between the desired setpoint and the measured process variable. In addition, it can include other sophisticated control techniques such as model predictive control or adaptive control, which can adapt to changing system dynamics and optimize performance over time.

High level of fault detection and protection: The product can detect a variety of problems and take appropriate protective measures. It can monitor internal and external parameters and quickly detect faults and abnormal conditions such as overvoltage, overcurrent or short circuit. When a fault occurs, it not only alerts the operator, but also takes immediate protective measures to help prevent damage to the equipment and connected equipment while minimizing downtime.

Data Logging and Communication: The Woodward 5466-348 is able to log critical data such as input and output values, operating hours, and fault occurrences. The logged data is available for analysis and can be used to gain insight into system performance and predict failures. It has serial communication interfaces such as RS-485 or Ethernet, allowing it to communicate with other industrial devices and integrate into larger automation systems. This is what allows for seamless exchange of data and coordinated control of complex industrial environments.

Modular Design: You need all these modules to fulfill the functionality, and all you have to do is specify which modules you want to use. These modules can be replaced and added based on the application requirements. If the device requires more functionality and connectivity options, additional input or output modules can be plugged in, allowing for a variety of distributed setups with multiple PLCs.

Application Scope

Industrial Machinery: It is a use case for controlling motors, pumps, and compressors in different industrial machinery. Ensuring efficient and reliable performance, it can precisely control motor speed and torque. It is used in pumps and compressors to ensure proper flow and pressure, improving the efficiency of fluid and gas transmission systems. In addition, Woodward 5466-348 is also used for spindle speed control and axis positioning of machine tools to achieve high-precision machining operations.

Power Generation: It is used for generator control and power distribution in power plants. The generator can be customized according to the grid voltage, kW, frequency and other requirements to minimize the mismatch between the grid and the generator and maintain the stability of the power supply. In addition, it can protect the generator and other power equipment from failure/high load, thereby improving the reliability and safety of the power generation process.

Smart Grid: In smart grid technology, it helps manage distributed generation, load balancing and the integration of renewable energy. In wind turbines, Woodward 5466-348 adjusts blade pitch and generator speed to maximize power capture and protect turbines from extreme wind speeds. For solar inverters, it converts DC power generated by solar panels into AC power for efficient injection.
