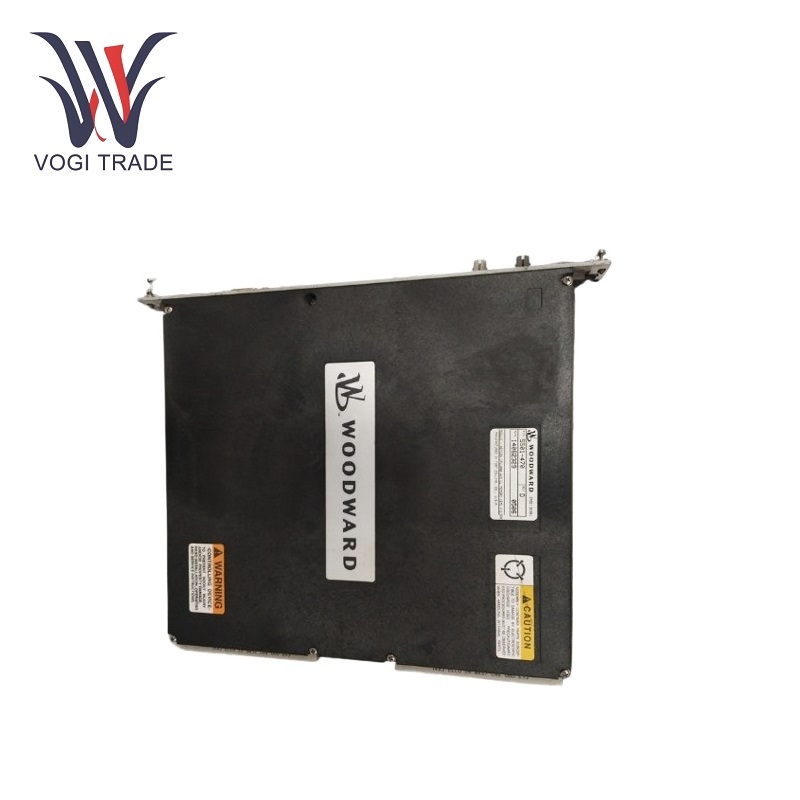

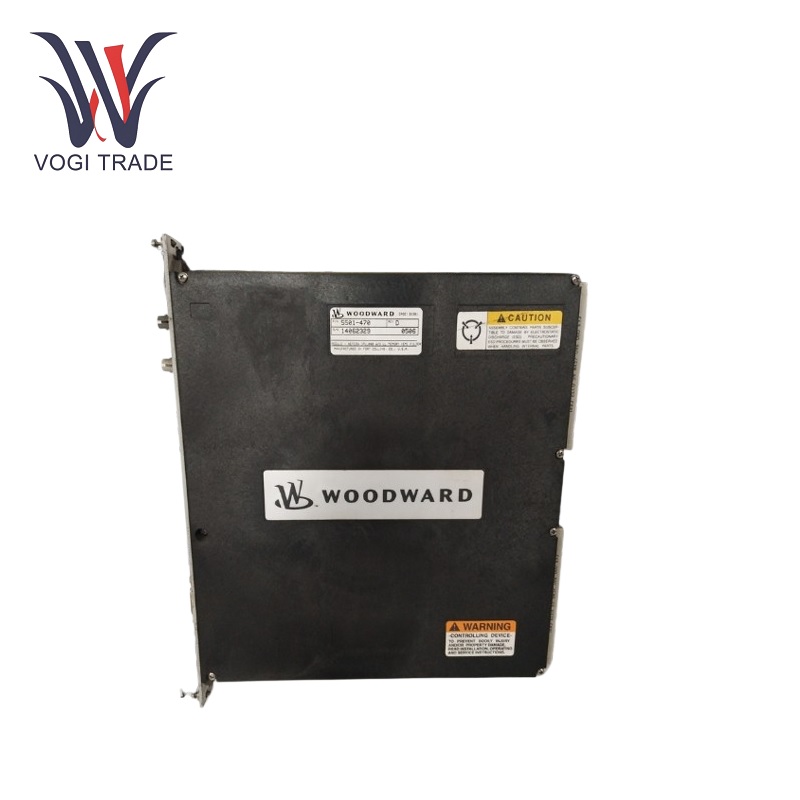

Woodward 8440-1706

Technical Parameter

Voltage: 24 VDC.

Maximum power consumption: 18W.

Temperature range: -55 °C to 105 °C

Working Temperature: -40°C to 70°C.

Humidity: 95% at 38°C.

Resolution: Voltage accuracy grade 0.1; urrent accuracy iac 0.5 grade.

Discrete Input: 18 to 40VDC,10mA.

Relay Driver Output: 18 to 40 VDC at 200 mA sink.

Analog Input: 4 to 20 mA.

Function Features

Precision Control Features: Woodward 8440-1706 offers advanced control features that allow for precise regulation of industrial processes. Control routinesThese algorithms may modify their behavior when various parameters in the controlled system behavior themselves change, for instance, in the speed control of the drive motors or the flow control of liquid.

Multiple Communication Interfaces: Woodward 8440-1706 Features Multiple Communication Interfaces It enables compatibility with other industrial devices and systems, ensuring smooth data transfer and synchronized control throughout the industrial network.

Programmable Logic Capability: 8440-1706 Woodward possesses a built-in capability for programmable logic functions. Users can customize the control logic according to specific application requirements, without the need for additional external controllers.This allows flexibility in system design and enables better operation of the industrial process in its entirety.

Full fault detection and diagnosis available: It has full fault detection and diagnosis capabilities. It can monitor its own operation and the connected components in real time to quickly detect faults or abnormal conditions. Woodward 8440-1706 then gives extensive diagnostic data for fast troubleshooting and reduced downtime.

Scalability: It features comprehensive fault detection and diagnosis capabilities. Its versatility allows it to be continuously updated as required.

Applications

Power Generation: In power plants, it is utilized for the controlling and monitoring of generators, turbines and respective auxiliary systems. It assists in stabilizing the power output, synchronizing generators with the grid, and protecting the equipment from overloads and faults.

Manufacturing Systems: It is commonly used in industrial automation systems in factories and other manufacturing plants. Woodward 8440-1706 is designed to operate treatment plants, gym equipment and semiconductor manufacturing systems.

Renewable Energy: It is important in renewable energy systems such as: wind turbines and solar inverters which convert and regulate the power generated. It enables optimization of energy harvests and reliable integration of renewable power sources into the power grid.

Marine and Offshore: Woodward 8440-1706 is utilized in marine vessels and offshore structures for managing propulsion systems, power distribution, and onboard equipment.
