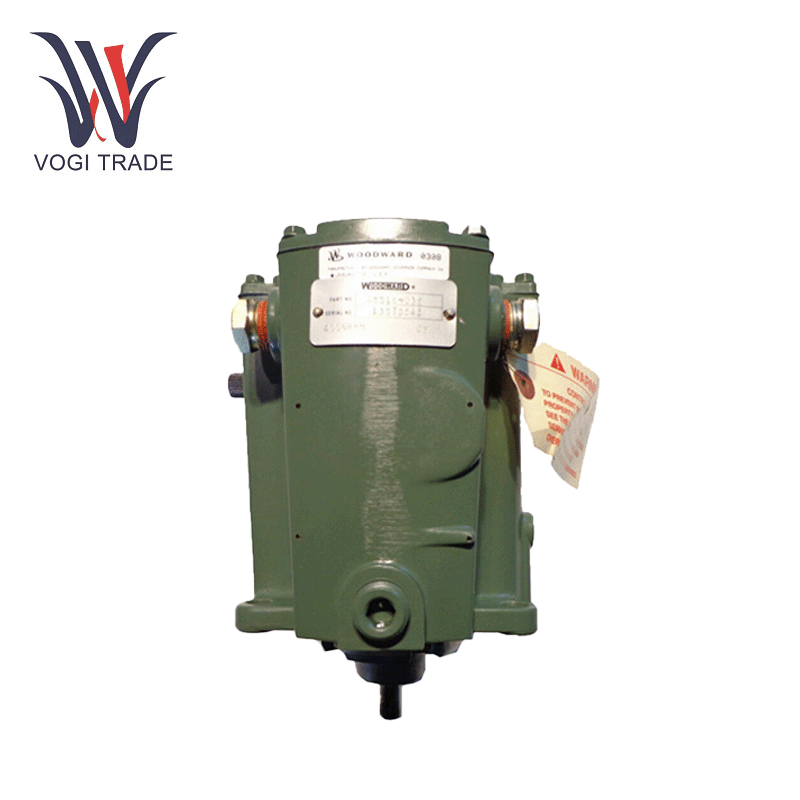

Woodward 8516-039

Brand: Woodward
Description: TG-13 GOVERNOR
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 1
Payment Term: T/T
Shipping Port: Shenzhen
Woodward 8516-039 is an advanced digital control module specialized in regulating engine management and critical machinery for industrial applications.

Send Inquiry

Product Description

Manufacture
Woodward
Model Number
8516-039
Catalog
/
Country Of Origin
USA
HS CODE
85389091
Dimension
16*16*12cm
Packing Dimension
18*18*14cm
Weight
8kg

Technical Parameters

Voltage Range:  Runs at 18-32V DC — for reliable power supply in demanding industry conditions.

Communication Protocols: Incorporates CANbus and J1939 interfaces for efficient data communication with engine systems.

Temperature Tolerance: Operational from -40°C to +85°C, trying to make performance at extreme thermal conditions.

Protection Rating: IP67 enclosure for dust/water resistance and vibration resilience.

Figure diagnostic capabilities: supported through real-time fault logging and predictive maintenance alerts using embedded analytics.


Functional Features

The Woodward 8516-039 combines mechanical and hydraulic engineering for reliable performance:

Adjustable Speed Range: Offers a screw-driven speed setting range of 2400–4000 RPM, with a rated speed droop of 4035 RPM at 2° angular adjustment, enabling fine-tuned turbine control.

Sensorless Feedback Integration: Utilizes an input drive shaft to directly sense turbine rotor speed, compare it with operator-defined targets, and automatically adjust steam flow via output shaft torque (12 ft-lb) to maintain stability.

Programmable Flexibility: As a modular servo controller, it supports customization through analog/digital I/O configurations, adapting to diverse automation requirements.


Compatible Equipment

The Woodward 8516-039 seamlessly integrates with critical turbine components:

Control Valves and Actuators: Directly interfaces with steam control valves through its counterclockwise-rotating output shaft, ensuring precise flow regulation under 16 N·m torque.

Woodward Ecosystem: Compatible with Woodward SPC series valve controllers and PEAK150 monitoring systems for unified industrial automation solutions.


Installation & Maintenance

Orientation-Sensitive Setup: Ensure the input drive shaft rotates counterclockwise during installation to align with turbine mechanics. Follow torque specifications (12 ft-lb) for output shaft connections to avoid misalignment.

Preventive Servicing: Periodically inspect the servo mechanism and lubrication system. Use Woodward-certified replacement parts for components like adjustment screws or seals to prolong the Woodward 8516-039’s lifespan.
