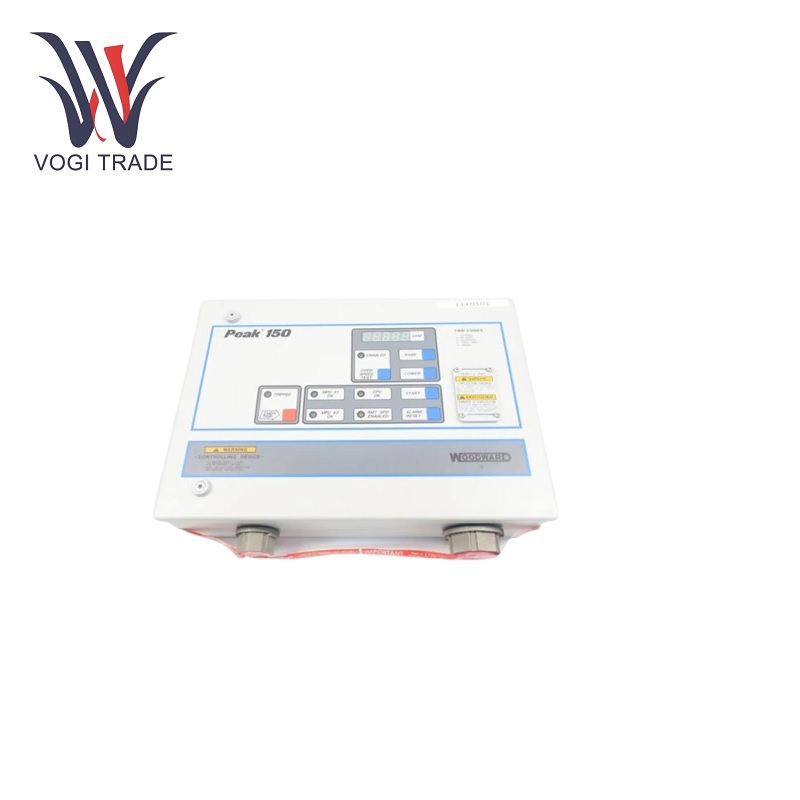

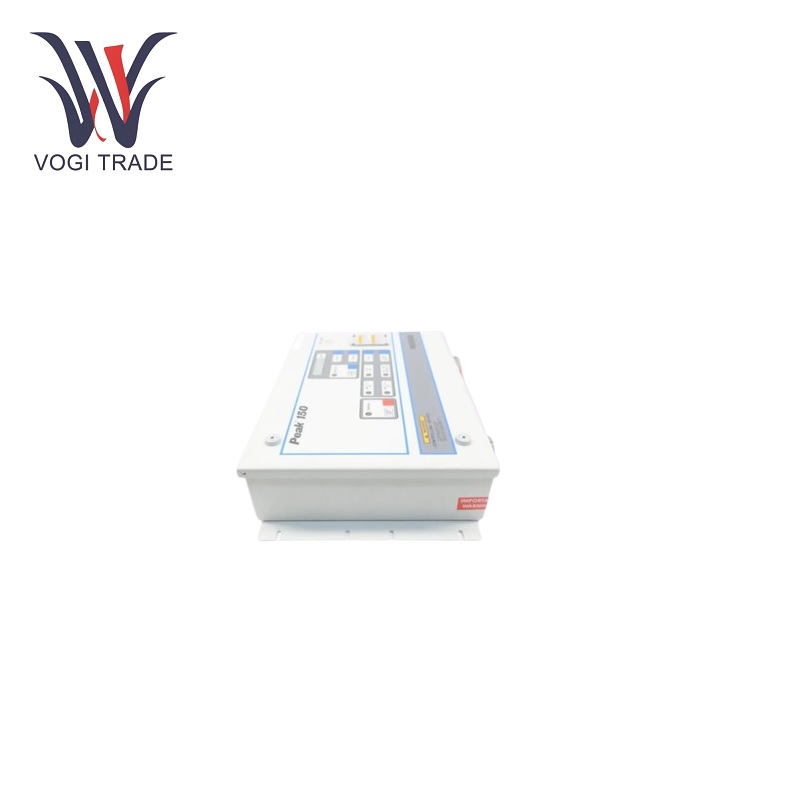

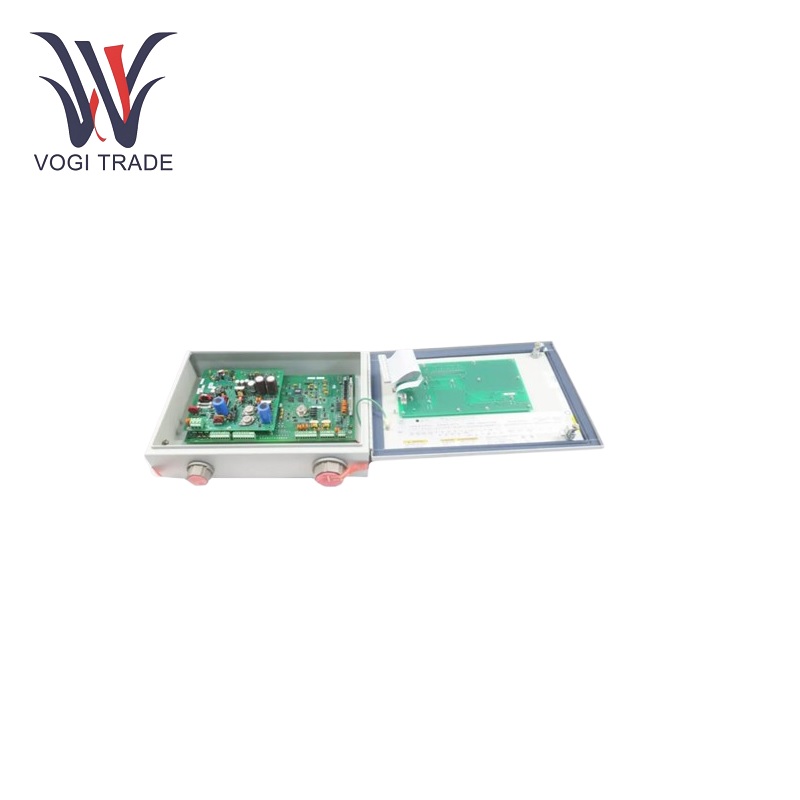

Woodward 9905-860

Technical Parameter

Communication Protocol: Modbus RTU.

Communication Interface: RS-485

Display: 5-digit LED speed display directly.

Operating Temp: -25 to +60°C.

Storage Temperature: -40°C to +85°C.

Humidity: 0 to 95% non-condensing .

Vibration Resistance: 5g, 10-500Hz.

Shock Resistance: 30g, 11ms.

Mounting Type: DIN rail mount.

CPU: 16-Bit Microprocessor, 12MHz.

Input Voltage: 24VDC.

Powered Consumption: 38W Max.

Function Features

Dual-Channel Capability: Woodward 9905-860 has two independent channels that can be isolated, whether that means separate cabling or operating the box in an architectural set-up that allows for two channels fully separated. Doing this enables the device to control or monitor two separate processes, or two separate components simultaneously, providing the versatility and flexibility needed for many modern applications.

Adaptive Control Algorithm: Woodward 9905-860 uses an adaptive control algorithm that can update its parameters automatically or continuously with the change in operating conditions. This allows it to make real-time adjustments to optimize performance and correct for things like temperature fluctuations, shifting loads or input voltage variations.

Comprehensive Built-in Diagnostics Functions: Woodward 9905-860provides comprehensive built-in diagnostic functions. It is capable of self-diagonosing the internal components, as well as the external circuits and sensors connected to it. It can quickly determine the abnormality or fault in case anything goes wrong, and along with that, it provides visual diagnostic details for effective troubleshooting and maintenance.

Remote Configuration and Monitoring: It enables remote configuration and monitoring through communication interfaces like Ethernet or RS-485. This allows the engineer to control the device and monitor the behavior without being physically present, which can be more convenient in large industrial plants or throughout distributed systems.

Applications

Power Generation: It can be utilized in power plants for controlling and monitoring different subsystems, like generator excitation systems, fuel injection control in diesel generators, and voltage regulation in substations. Woodward 9905-860 possesses unique dual channel feature which helps control various sub-systems in the power generation process in a systematic way to support a stable and seamless power generation.

Industrial Manufacturing: It is used in industrial manufacturing processes including CNC machining, robotic assembly lines, and industrial heating and cooling systems. It is able to control motors, valves, and sensors, providing precision operation and quality control with Woodward 9905-860. These remote configuration and monitoring features are especially valuable in larger manufacturing facilities that need centralized control and management.

Oil and gas: It is capable to work under the severe environmental conditions and intricate control needs of the oil and gas industry. Built-in diagnostics assist in quickly detecting and resolving issues with critical equipment, minimizing production losses and safety risks.

Solar and Wind Power Plants: Woodward 9905-860 can be used for system control, grid synchronization, and more. It can adapt to input conditions that vary in time and optimize for power output, characteristics that suit the intermittence of renewable energy sources. Such high reliability ensures that the renewable energy systems keep on working, thus maximizing energy generation and use.
