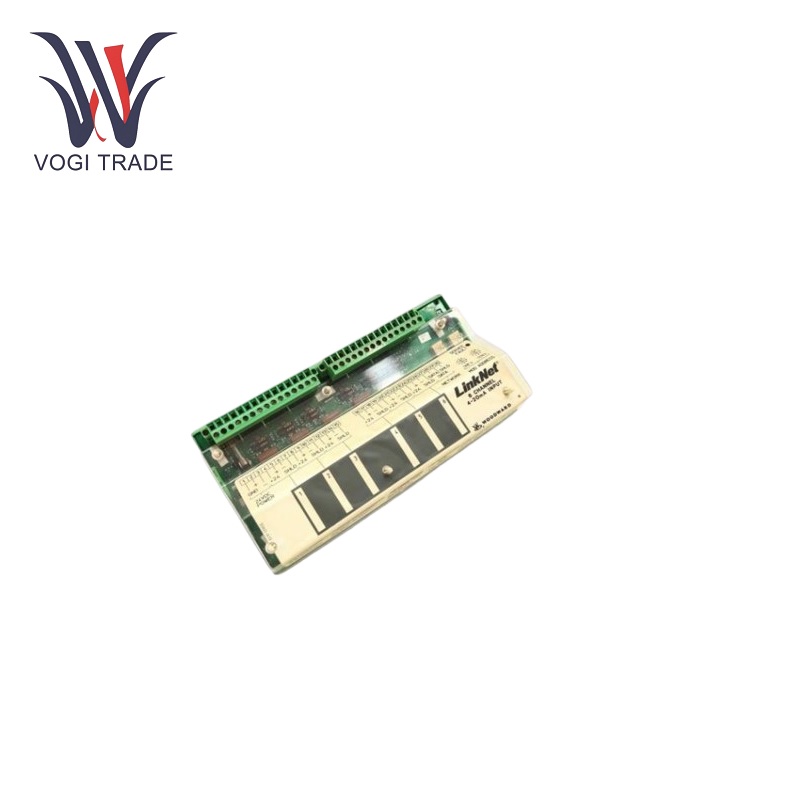

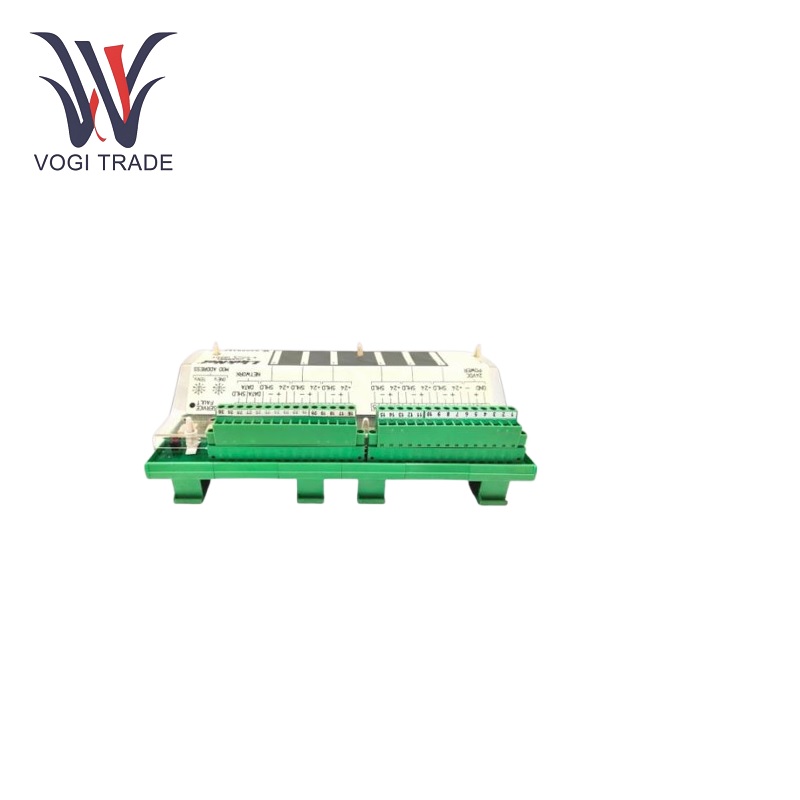

Brand: Woodward Description: Analog Input Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen Woodward 9905-969 has high-quality analog signal input solution for industrial automation control systems with high accuracy, high reliability, configuration flexibility and good communication capabilities.
|
Manufacture |
Woodward |
|
Model Number |
9905-969 |
|
Ordering Number |
9905-969 |
|
Catalog |
- |
|
Country Of Origin |
American |
|
HS CODE |
85389091 |
|
Dimension |
12.7*2.5*20.3cm |
|
Packing Dimension |
18*6*25cm |
|
Weight |
0.59kg |
Technical Parameter
Input Range: 0 to 20 mA.
Resolution: 12 bits.
Input Voltage: 24 VDC.
Power Consumption: 15W.
Ambient Operating Temperature: -40°C to +70°C
Operating Temperature: -55 °C to +125 °C.
Commodication: It supports Modbus RTU communication protocol.
Function Features
Digital Control and Monitoring: Woodward 9905-969 also provides a digital control interface for precise configuration and monitoring of the power supply parameters. The users can adjust output voltage, current limits, and other settings through digital commands.
Overvoltage and Overcurrent Protection: A built-in overvoltage and overcurrent protection circuit. The Woodward 9905-969 will close its output if the output voltage or current rises abnormally. This provides a very important layer of protection in terms of removing the level of risk to the overall system.
Power Good Signal: It provides a power good signal output. This signal indicates whether the output voltage is within the specified range and stable. Woodward 9905-969 can be used by other components in the system to ensure proper startup and operation sequencing, facilitating system integration and fault diagnosis.
Synchronization Ability: It can synchronize its switching frequency with other similar devices. This can be commonly used in applications, which involves the use of multiple power supplies in parallel, or within systems where electromagnetic interference (EMI) is required to be maintained to a low level.
Applications
Industrial Automation: Woodward 9905-969 is used in industrial automation systems to provide power to various control modules, sensors, and actuators. Its output voltage remains stable and the operation is reliable, characteristics which significantly contribute to guaranteeing both the accuracy and precision of control in many industrial processes, such as in manufacturing plants, assembly lines, or even robotic systems.
Telecommunications: In telecommunications equipment, Woodward 9905-969 supplies power for use in powering base station controllers, transceivers, and other critical items. In turn, the overvoltage and overcurrent protection mechanisms safeguard the sensitive telecommunications components against power spikes and faults, maintaining communication services without interruption.
Aerospace and Defense: Woodward 9905-969 is commonly used in aerospace and defense systems, where reliability and performance are critical. It has the ability to drive avionics systems, guidance systems for missiles and other mission-critical electronics. With a wide operating temperature range and compact design, it is suitable for the demanding and space constrained worlds of aerospace and defense applications.
Medical Equipment: In medical devices like patient monitors, imaging systems, and laboratory apparatus, Woodward 9905-969 delivers power to the internal electronics.
