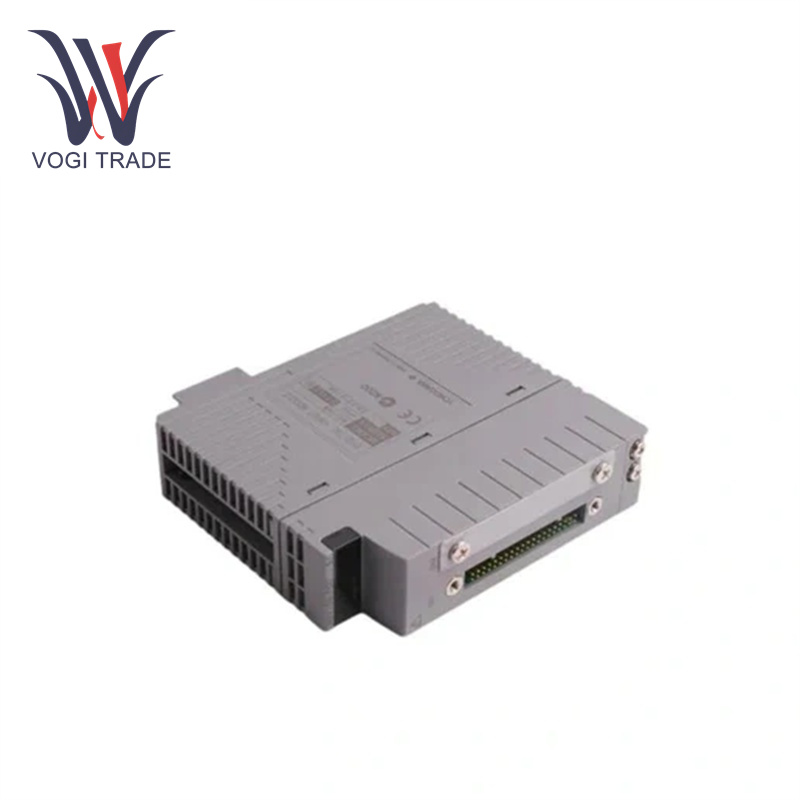

Yokogawa AAI543-H00 S1

Working Parameters

Input Signal Range: It dynamically accepts neutral fluids. This includes, for example, accepting voltage inputs between -10V and +10V, current inputs between 4 and 20mA. Interoperability features can interface with a variety of common industrial type sensors and transducers.

Accuracy: The Yokogawa AAI543-H00 S1 maintains high accuracy, typically within the range of ±0.05%. This measurement accuracy allows the processed signal to be used for critical control and monitoring purposes.

Response Time: Typically, it responds within a few milliseconds. This fast response and action enables it to quickly respond to changes in input signals, generating appropriate outputs within the required time, which is an important feature for control systems that need to take immediate action based on process conditions.

Operating Temperature: The Yokogawa AAI543-H00 S1 has an operating temperature range of -20 °C +60 °C, which means it is suitable for a variety of industrial environments, from indoor working conditions to outdoor, factory conditions.

Product Features

Analog Input Module: Converts incoming analog signals to digital values. The Yokogawa AAI543-H00 S1 also handles signal conditioning, such as noise filtering and compensating for nonlinear responses of the input signal. This means that the processed signal is clean and accurate and can be used as input to a control algorithm or displayed and logged.

Standard communication protocols: such as FOUNDATION Fieldbus or PROFIBUS, allow you to easily communicate with other devices in a distributed control solution (DCS) or programmable logic controller (PLC) network. It can be smoothly integrated into a larger industrial automation architecture, facilitating fast data transfer and joint control operations across a variety of infrastructures.

Diagnostic and Alarm Capabilities: The module has built-in diagnostic capabilities. In addition, it is able to continuously monitor its performance and verify its own input signal integrity. When it detects any abnormal conditions, such as sensor failure or signal out of range, it can generate alarms and send diagnostic messages to the control system. By doing so, they are able to prevent catastrophic failures, which in the big picture can save time and costs to maintain the efficiency of industrial processes.

Applications

Refineries and petrochemical plants: Used to measure and monitor various process parameters such as temperature, pressure, and flow in refineries and petrochemical plants. For example, it can be turned into a pressure transmitter that can be connected to pipes and containers to monitor their pressure to ensure that the plant operation process runs efficiently and safely.

Power plants: It can be used to measure electrical quantities such as voltage and current in the power distribution system of power plants. These sensors help track the performance of generators and turbines by measuring temperature, vibration, and other parameters. This data is essential to ensure that the power generation process remains stable and reliable.

Pharmaceutical engineering and food processing: In these industries, the control of process parameters must not only be accurate, but also ensure minimal contamination. For example, the Yokogawa AAI543-H00 S1 is suitable for measuring and controlling the temperature, humidity, and flow of raw materials. In pharmaceutical production, for example, the technology can facilitate the precise metering of raw materials and monitor and maintain ideal temperature and pressure conditions during the production process.
