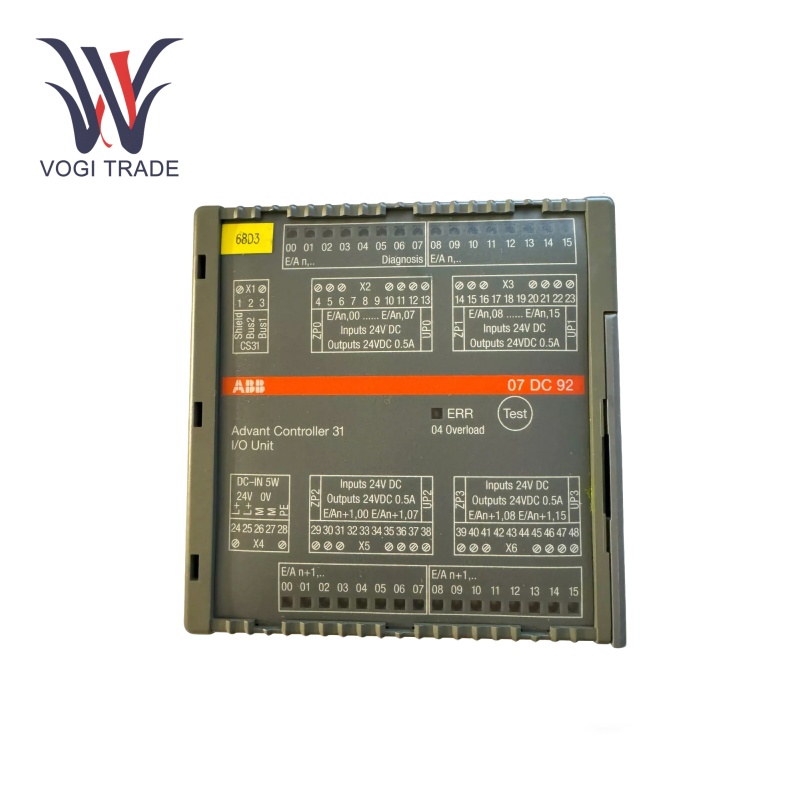

ABB 07DC92

Operational Parameters

Voltage: 24 V DC

Input Current: Approximately 7 mA per channel

Signal Delay:1 ms

Type: Transistor outputs

Nominal Load: 0.5 A per channel

Protection: Overload and short circuit protection

Isolation: Each of the four I/O groups is electrically isolated from one another and from the rest of the unit.

Product Features

Digital Input Function:The ABB 07DC92 module's digital input section is primarily used to acquire digital signals from field devices. These equipment types can include sensors, switches, and digital - output devices.

Electrical isolation: Between the CS31 system bus and the rest of the unit, and between groups of inputs. By isolating the control system, it protects control system from electrical interference and faults in the field devices.

Signal Conditioning: The Signals to be introduced into the control system are conditioned by the module. Such conditioning can include filtering noise, amplifying weak signals and making sure those signals are in the appropriate Volts-per-range for the control system to operate on. Based on modern integrated circuit technology they use to deal with different types and levels of input signal, making them compatible with a large number of types of devices in the field.

Generation Control Signal: The digital output part of the ABB 07DC92generates control signals to control field devices. In accordance with the commands received from the control system, the module switches the output channels on or off to control the operation of devices like relays, solenoids, and motors.

Output driving: The ABB 07DC92 4 channel output can drive up to 500 mA per channel, with a total of 4 A across the entire group. In addition, it can be directly used to control low power devices, or it can be used in conjunction with a power amplifier to drive a larger power load. The module's transistor outputs are also solid-state, capable of handling resistive and inductive loads with some limits on inductive load switching frequencies to protect both the module and the load.

Digital Output Control: Provides the PLC with control signals to actuators, relays, and other field devices to enable real time operational control.

Flexible Configuration:The 32 channels can be configured as an input or output independently, offering flexibility.

Diagnostic: Supports Diagnostic features like status LEDs & error reports to help monitor the performance of modules and debug issues.

Installation

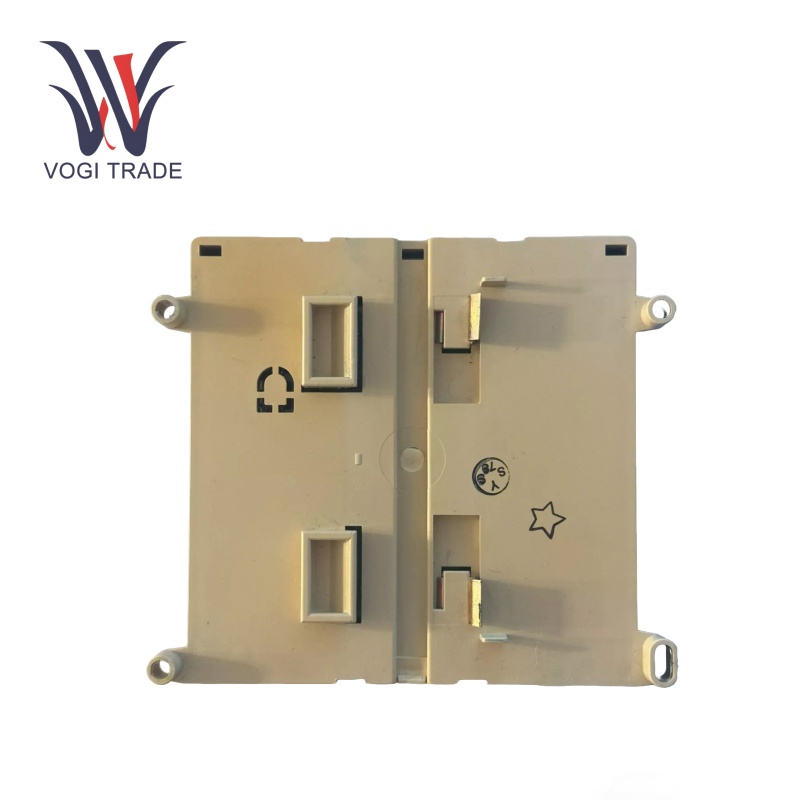

Mounting:This ABB 07DC92 is a DIN Rail mounted module which is a standard 35 mm Rail for easy integration into existing control panels.

Electrical Connections:24 V DC power supply.

I/O Connections:Since the system will have a total of 32 configurable channels, make sure you pair them up correctly according to whether they are used for input or an output configuration.

System Bus: Incorporate the ABB 07DC92 into CS31 system bus to be able to communicate with PLC.

Configuration: Normally set at the factory, the configuration of the module, such as setting the module's address and defining the function of each of the I/O channels.

Application range

Manufacturing Automation: Automates the control of machinery and processes on production lines, increasing both efficiency and product quality.

Process Control: Monitoring operations in industries like chemical processing, oil and gas, pharmaceuticals, or any industry that requires precise handling of operations.

Energy Management: Monitors and controls electrical systems in power generation and distribution, optimizing energy usage and ensuring system reliability.

Transportation Systems: Works with the control systems of railways, airports, and other transportation infrastructures to improve operations.

Troubleshooting

Diagnostic Alerts: Immediate signaling in case of module functionalities.

Error Messages: Use the diagnostic features of the PLC to read error messages and system logs.

Electrical connections: Ensure all wiring and connectors are intact and correctly positioned.

Configuration Settings: Make sure that all channel configurations and module addresses are correct.

Load Conditions: Ensure loads do not exceed 0.5 A/ch to avoid overloads.
