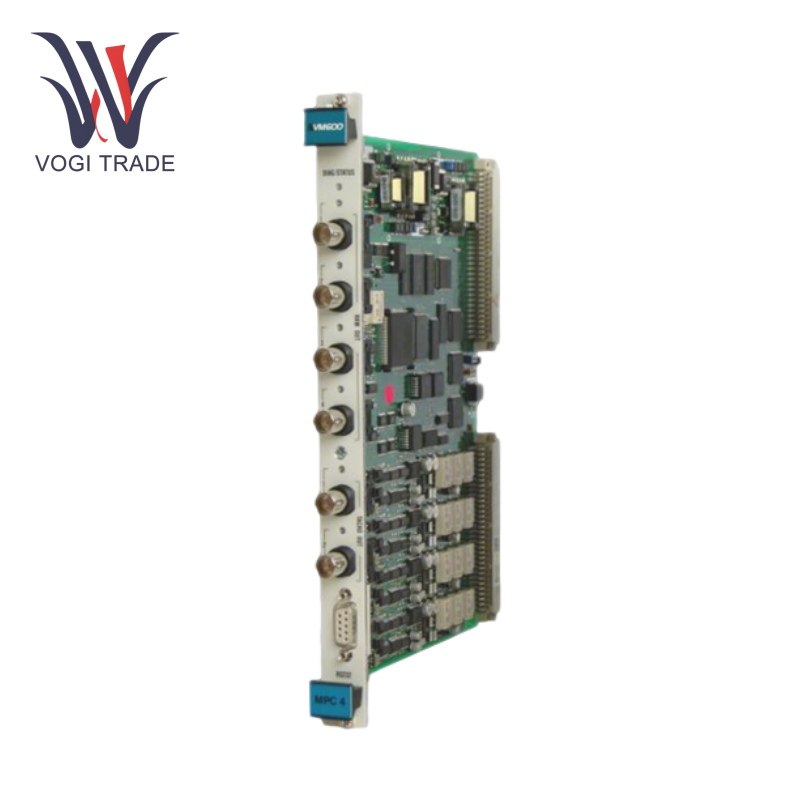

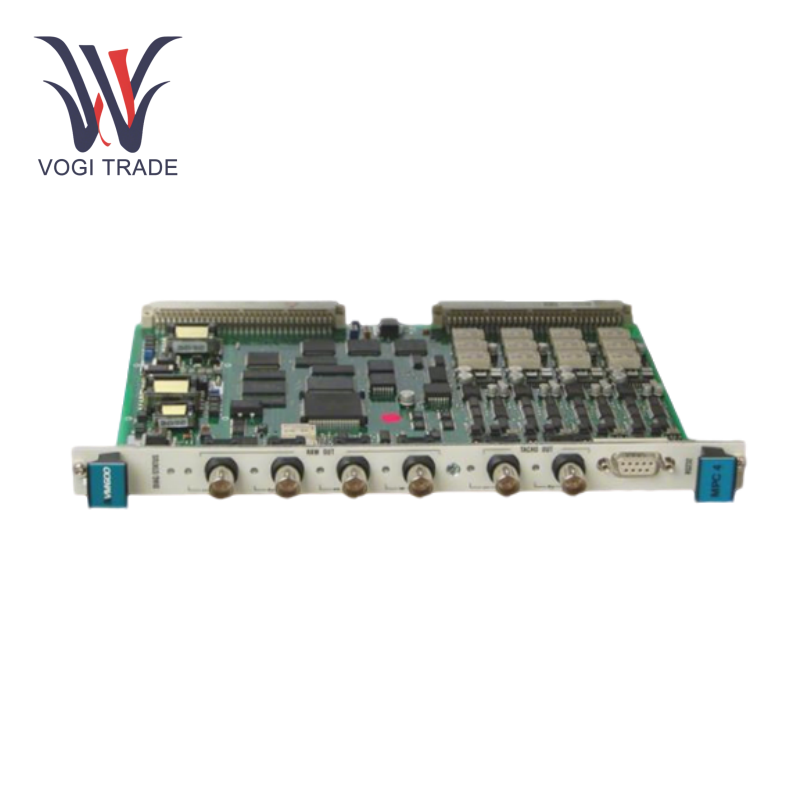

Brand: Vibro-Meter Description: Machinery Protection Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: ShenZhen MPC4 200-510-063-034 is a mechanical protection module dedicated to vibration monitoring and fault diagnosis of industrial equipment. By real-time acquisition of mechanical vibration, temperature and other parameters, combined with high-precision signal processing technology, it realizes equipment status warning and protection functions. It is suitable for industrial scenarios with high reliability requirements such as gas turbines, compressors, and generator sets.
|
Manufacture |
Vibro-Meter |
|
Model Number |
MPC4 |
|
Ordering Number |
200-510-063-034 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
27*19*3CM |
|
Packing Dimension |
30*22*5CM |
|
Weight |
0.8kg |
Technical parameters
Processor: Multi-core architecture, supports real-time data processing and parallel computing, sampling rate ≥10kHz.
Input channels: 4/6 channels (depending on the version), supports accelerometer, displacement sensor and other signal inputs.
Communication interface: Ethernet, RS-232/485, CANopen, supports Modbus TCP/IP and OPC UA protocols.
Power supply requirements: DC 24V (±10%).
Power consumption ≤15W,
Operating temperature -20℃~+70℃
Dynamic signal output: 0-10V voltage or 4-20mA current signal.
Functional features and principles
Multi-version support: MPC4 200-510-063-034 provides "standard version", "independent circuit version" and "safety version (SIL)", the latter is certified by IEC 61508 and ISO 13849, suitable for SIL 1/PL c Safety level scenarios.
Fault isolation: The safety version (SIL) cancels the VME interface to avoid configuration interference of non-safety modules and prevents misoperation through hardware isolation.
Real-time monitoring and alarm: MPC4 200-510-063-034 identifies fault modes such as bearing wear and shaft misalignment through FFT spectrum analysis.
Compatibility and supporting products
VM600 series modules:
Input/output modules: such as 200-560-101-017 VM600 IOC4T (supports analog signal output.
Vibration monitoring module: such as 620-001-001-116 VM600 XMV16 (16-channel vibration analysis).
Third-party integration: Compatible with Bently Nevada 3500 series monitoring instruments, supporting interaction with DCS/SCADA systems through OPC protocol.
