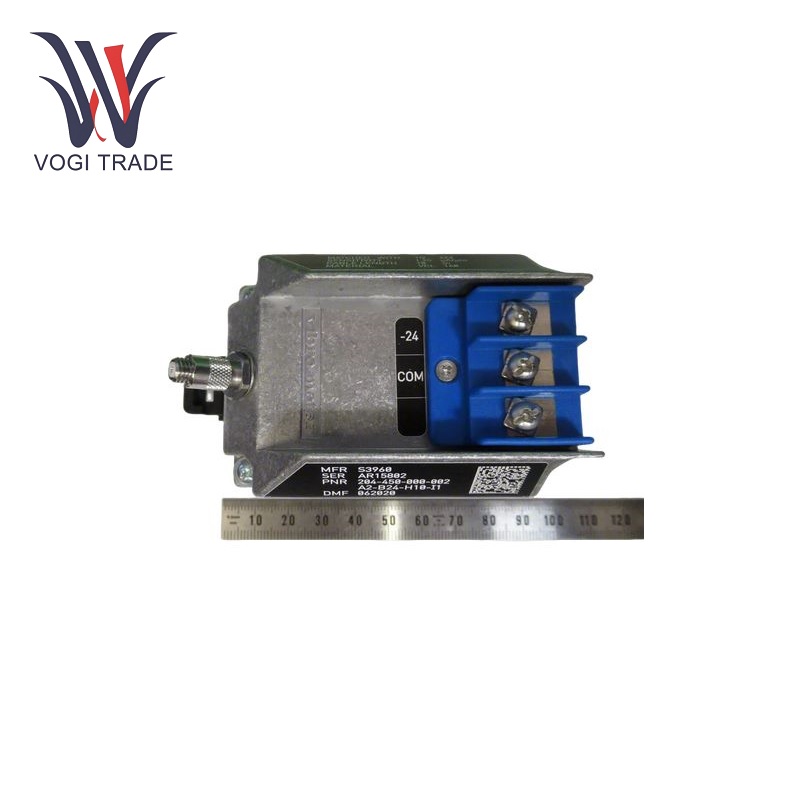

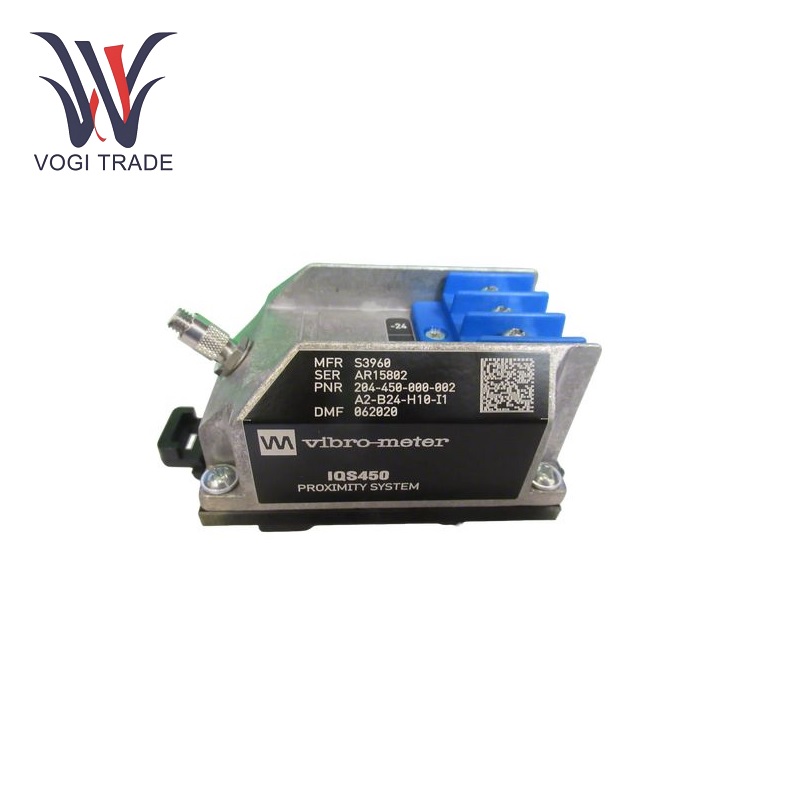

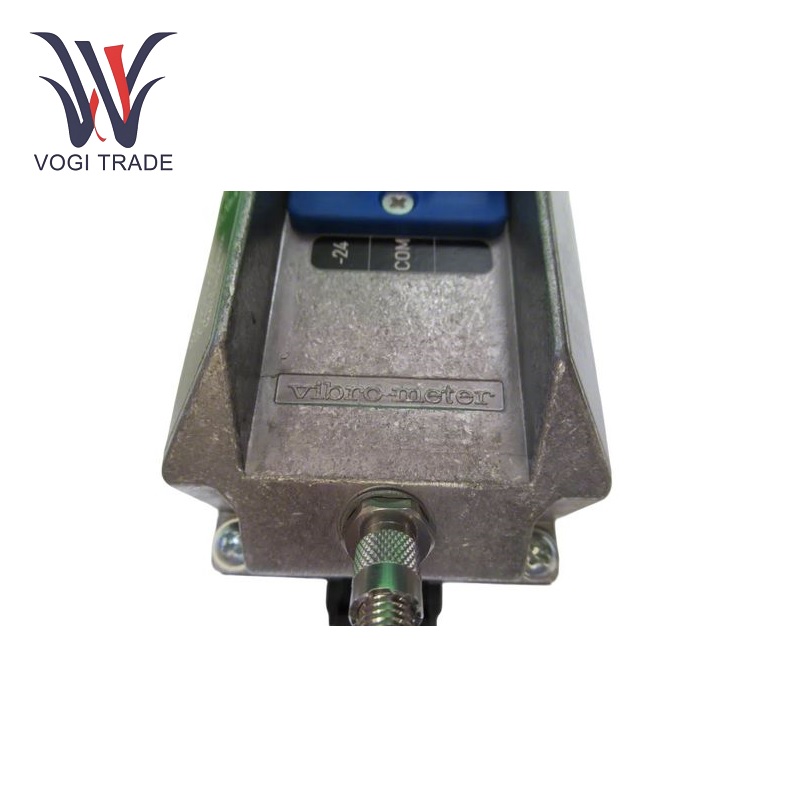

Vibration IQS450

Usage Parameters

Output Type: Vibration IQS450-2-wire current output, voltage output-3-wire. When the current output is, the current gap range is -15.5 to -20.5, and the dynamic range is 5mA (1nF output capacitor; 100μH output inductor). When the voltage output is, the voltage gap is between -1.6 and -17.6V, the dynamic range is 16V, and the output impedance is 500Ω.

Power Supply Requirements: The power supply voltage range for both output configurations is -20 to -32 volts. The 2-wire current output requires a current in the range of -15.5 to -20.5mA, while the 3-wire voltage output requires -13mA±1mA, with a maximum of -25mA.

Measurement System: Designed specifically for TQ proximity sensors, it provides a highly configurable measurement system to accurately measure proximity.

Frequency: Widely used in the frequency range from DC to 20,000Hz, it can measure and process a wide variety of signals and can effectively detect various vibration and proximity-induced phenomena.

Operating temperature range: Its operating temperature range is -30°C to 85°C, storage temperature is -40°C to 85°C, and maximum humidity is 95% non-condensing and 100% condensing (but non-immersed) conditions, suitable for use in various environmental conditions.

Protection level: The device has an IP40 protection level, which can resist solid objects larger than 1 mm and splashing water, ensuring normal operation under general industrial conditions.

Hazardous area certification: The Vibration IQS450 is ex ia and ex na certified, and its design and construction enable it to operate in potentially explosive environments, thereby improving safety and reliability when operating in hazardous areas.

Product Features

Signal conditioning: It can be used as high-quality signal conditioning for TQ proximity sensors. It converts the signal from the sensor into a form more suitable for further processing and transmission, thereby improving the quality and stability of the signal.

Configurable Transfer Function: The transfer function in the Vibration IQS450 is highly configurable, allowing the user to adjust the measurement range, sensitivity, and total measurement system length to specific application criteria. This enhances the versatility of the device, allowing it to adapt to different measurement modes and sensor configurations to achieve accurate and reliable measurement results.

Output Options for Long/Medium Distance Signaling: The Vibration IQS450 offers a wide range of signaling options, including current output for long distance signaling or voltage output options for medium distance. Current output is ideal for situations where signal transmission is more affected by resistance and interference over long distances, while voltage output satisfies effective integrity for shorter distance transmission.

Compatibility with VM600 Systems: The Vibration IQS450 natively connects to the VM600 System, a comprehensive machinery protection and monitoring system. This compatibility ensures seamless and reliable integration into existing monitoring setups, facilitating operational functionality and enhancing data processing and management.

Built-in Diagnostics: The device may include built-in diagnostics that continuously monitor the health of the measurement system, including the sensor, cable, and signal conditioner itself. This helps catch premature system failures or anomalies, enabling early maintenance response and minimizing downtime.

Applications

Aerospace Uses: The Vibration IQS450 is widely used in the aerospace sector to monitor blade vibration and tip clearance at the aircraft engine level. These settings provide early warning of possible failures and encourage predictive maintenance by continuously monitoring parameters such as blade tip clearance and vibration levels, ensuring safe and smooth operation of aircraft engines.

Power Generation: The Vibration IQS450 can be used in thermal, hydroelectric and nuclear power plants to monitor turbine blade vibration and equipment proximity. It enables power generation equipment to achieve optimal performance and reliability, prevent failures and save maintenance costs.

Industrial Manufacturing: In various industrial production processes such as automotive manufacturing, the Vibration IQS450 is used to monitor the vibration and proximity of production equipment, including motors, pumps and conveyor belts. This monitoring enables manufacturers to detect and correct mechanical problems at an early stage, thereby improving production efficiency, reducing downtime and improving product quality.

Oil and Gas Industry: The Vibration IQS450 is used in exploration and production activities in the oil and gas fields under extremely competitive and explosive conditions.
