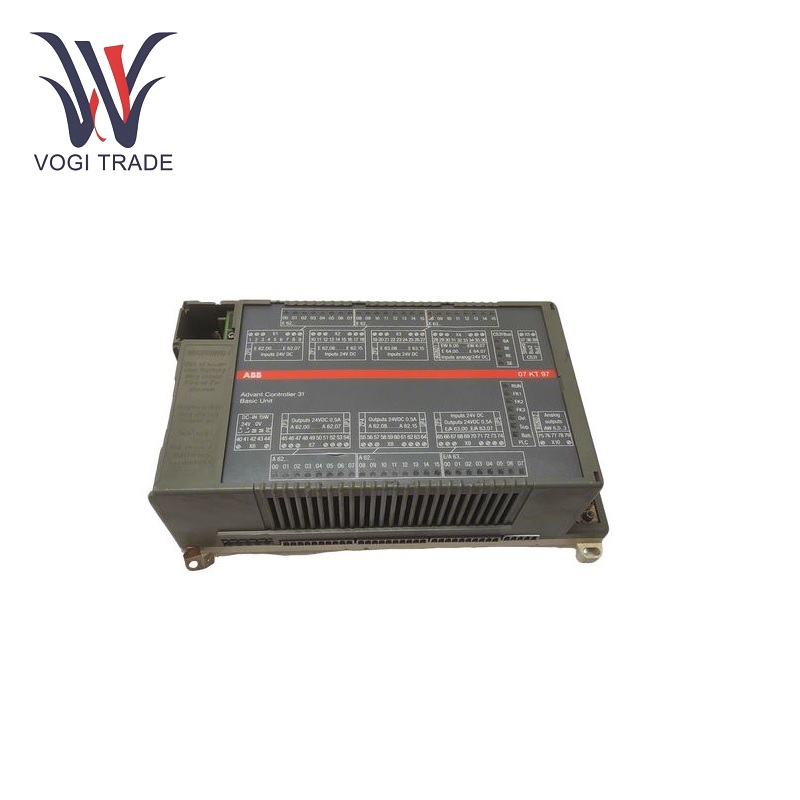

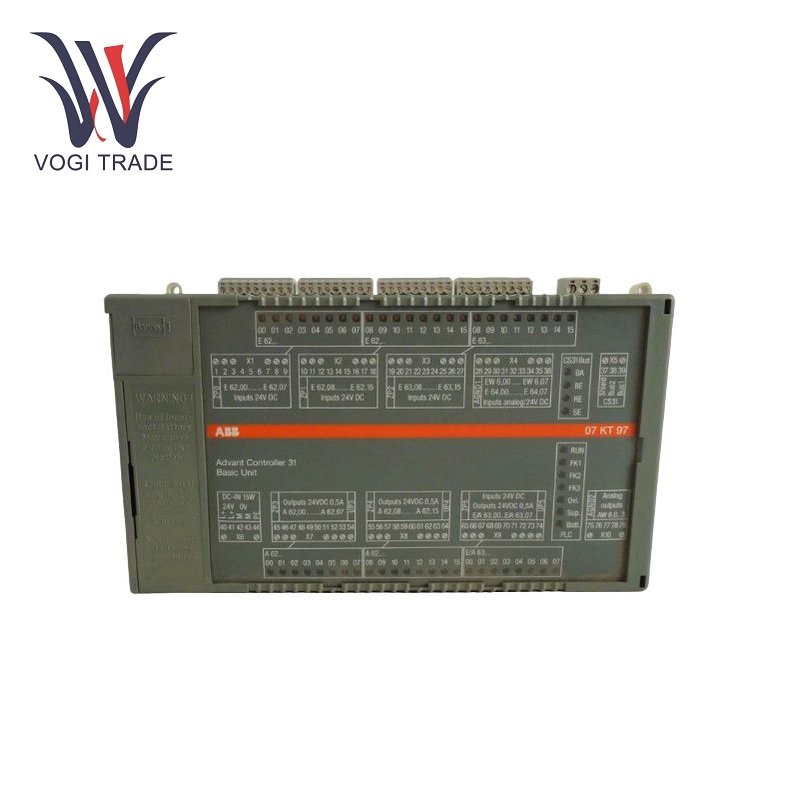

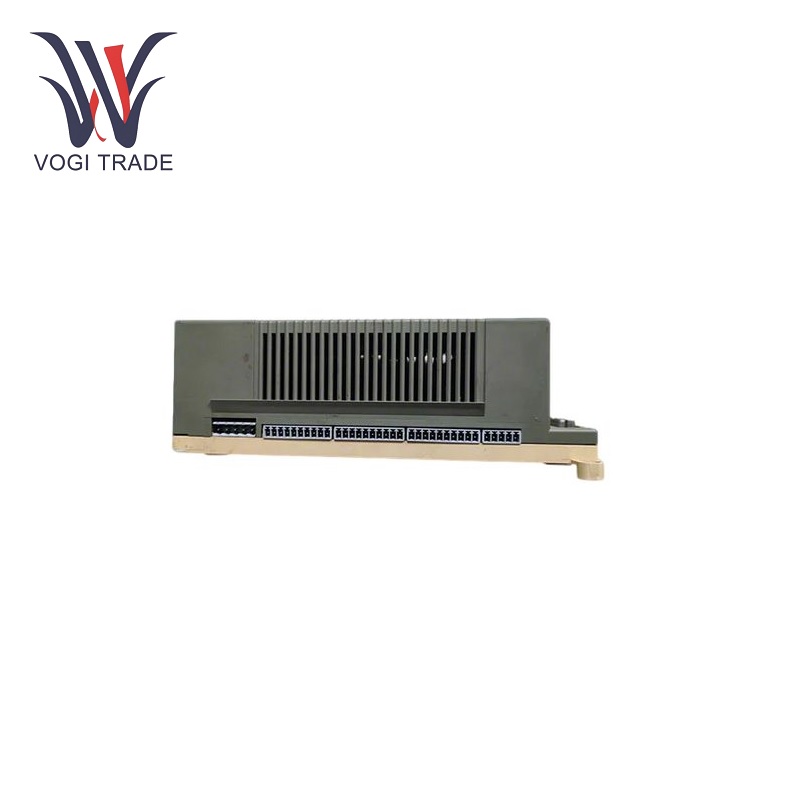

ABB 07KT97

Working Parameters

Power supply: The power supply voltage of ABB 07KT97 is 24 V DC, which ensures stable and reliable operation of the equipment.

Storage capacity: Equipped with 480 KB of user program memory and 256 KB of user data memory (Flash EPROM), it can be used to store complex control programs and their related data.

Input/output points: 24 electrically isolated 24 Vdc inputs, divided into 8 groups (3 groups in total). It adds 2 groups of 8 electrically isolated transistor outputs (16 in total) and 1 group of 8 electrically isolated digital inputs/outputs. In addition, it has 1 group of 8 analog inputs, each of which can be configured as a measurement value of different ranges (0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA, 4...20 mA, Pt100 (2-wire or 3-wire) or differential or digital input). It also has 1 set of 4 analog outputs, which can be individually configured as 0...10V, 0...20mA or 4...20mA.

Interfaces: 07KT97 Features Serial interfaces COM1 and COM2 can be used as Modbus interfaces for programming and test functions. Couplers such as 07 KP90 (RCOM), 07 KP93 (2 x Modbus) and 07 MK92 (freely programmable) can be connected via the parallel interface. In addition, it includes a high-speed counter with numerous configurable functions and a real-time clock.

Product Features

Flexible control logic: As a programmable device, the ABB 07KT97 enables the creation of custom control programs for unique automation needs. This allows precise adjustment of industrial processes, equipment and systems to different operating requirements.

Multiple communication options: The platform supports other communication protocols (e.g. Profibus, CANopen, DeviceNet, Arcnet) to facilitate integration and communication with other devices and systems within industrial networks. It facilitates seamless data sharing, real-time monitoring and control, thus providing optimal support for complex automation structures.

Memory Space: Microprocessor technology is also powerful. This can process and store deployment operation data, configuration parameters and historical data, providing useful information for process optimization and troubleshooting.

Intelligent Diagnostic Function: Provides an effective way to locate faults and defects in the system. Real-time monitoring of inputs, outputs and internal components allows users to quickly perform maintenance to minimize downtime.

Modular Expansion: ABB 07KT97 adopts modular and configurable interface design, which can be easily expanded by additional I/O modules or functional units to meet changing application needs and system expansion.

Application Range

Industrial Automation: ABB 07KT97 is used for sequential and assembly control and material handling of industrial production lines. It is able to control motors, pumps, conveyors and other equipment to provide efficient and reliable production.

Intelligent Power System: Used in power generation, distribution and management systems for power monitoring, load control and protection relay control, etc. It helps to optimize power consumption and maintain grid stability and reliability.

Chemical and petrochemical industries: used for process control in chemical plants and refineries, such as temperature, pressure, flow and level control of different fluids. Chemical manufacturing involves complex processes, which require chemical processes to operate safely and efficiently.

Building automation: ideal for intelligent building management systems to manage lighting, heating, ventilation and air conditioning (HVAC), access control and other building services to improve energy efficiency and occupant comfort.

Robotics and motion control: can be integrated into robotic systems to manage the movement and function of robots, facilitating precise positioning, pathfinding and operation in areas such as welding, painting and material handling.
