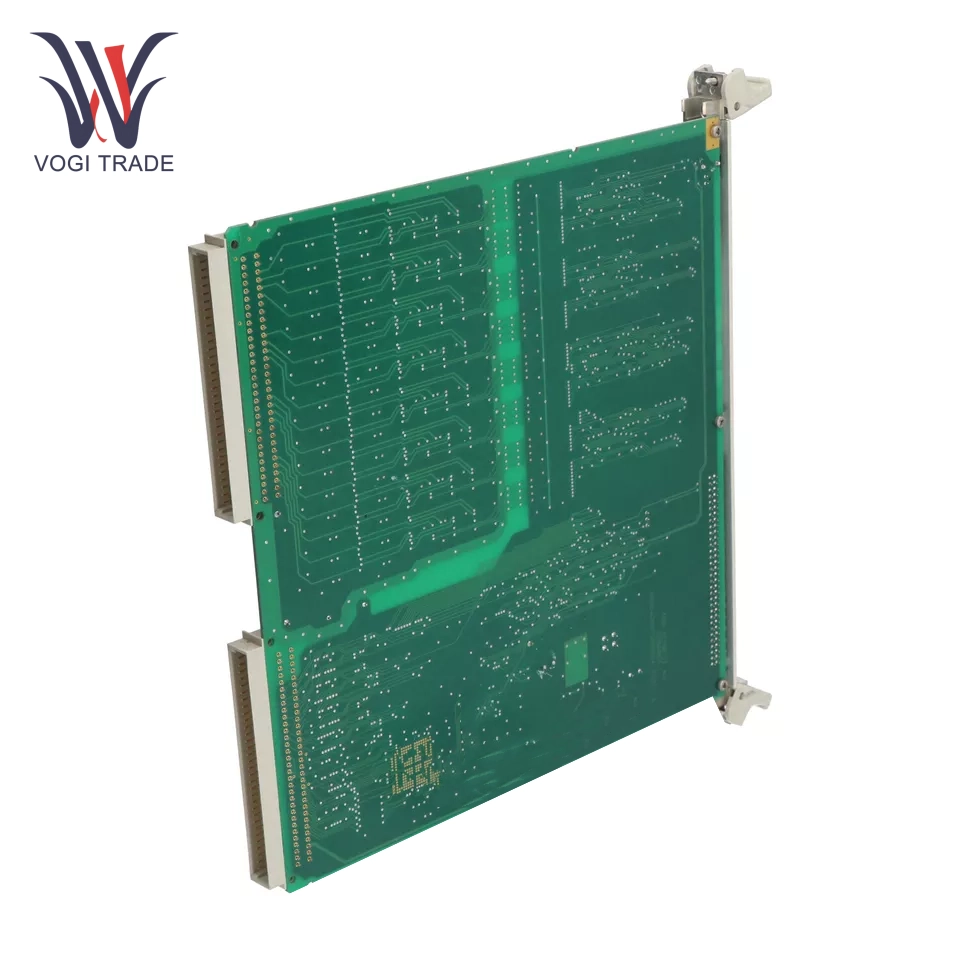

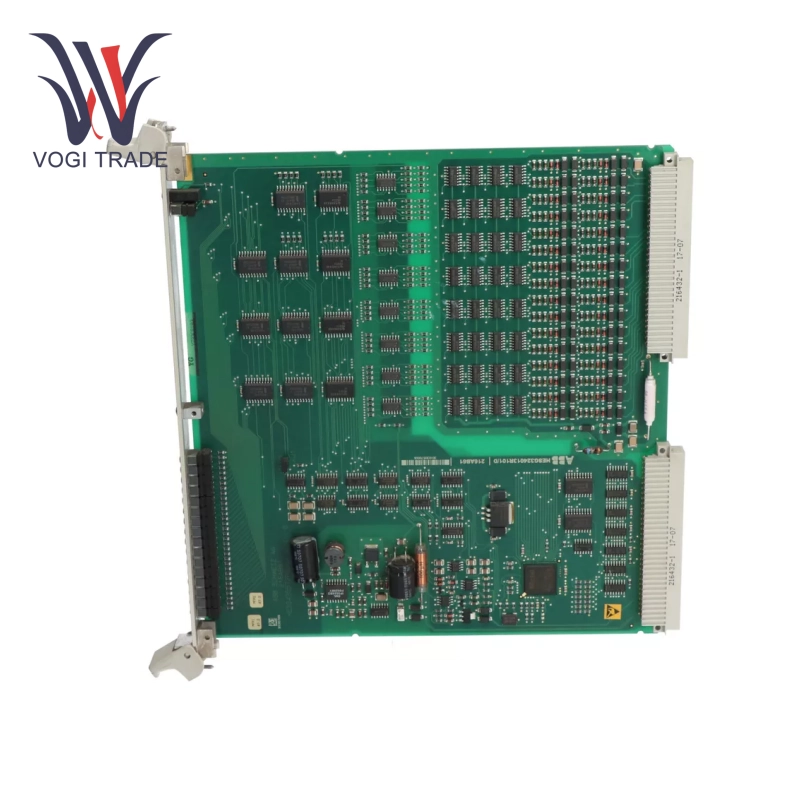

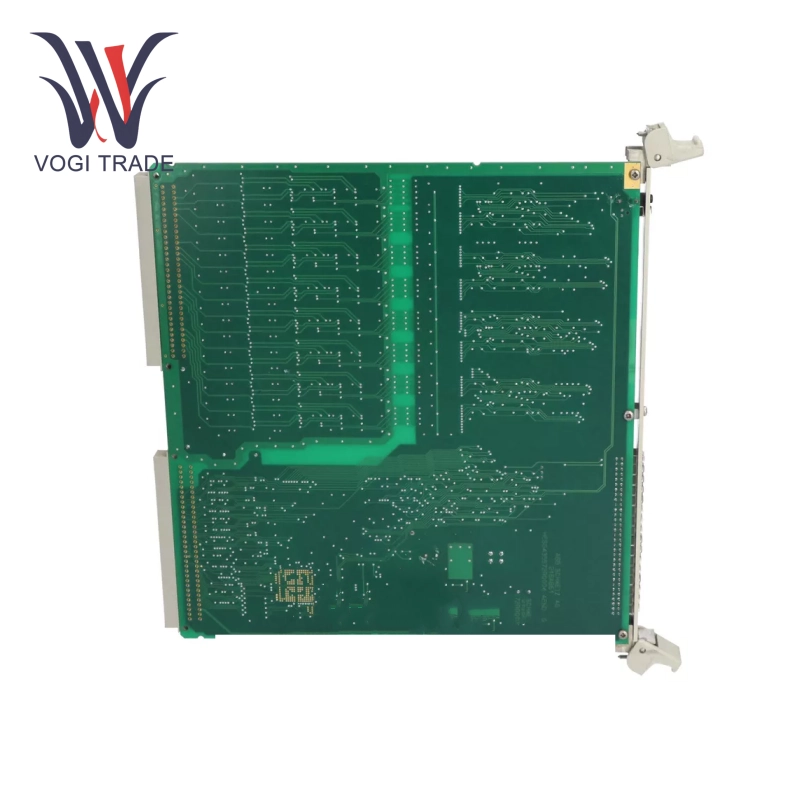

Brand: ABB Description: Analog Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB 216GA61 is an output auxiliary relay module in the ABB Advant OCS (Open Control System) series, mainly used in industrial automation control systems to provide potential isolation and reliable control of digital signals.
|
Manufacture |
ABB |
|
Model Number |
216GA61 |
|
Ordering Number |
HESG112800R1 |
|
Catalog |
Advant OCS |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
20*15*2CM |
|
Packing Dimension |
22*17*5CM |
|
Weight |
0.8kg |
Technical Parameters
Working voltage: supports 24V DC input, compatible with industrial standard power supply.
Output capacity: ABB 216GA61 can accommodate up to 16 auxiliary relays, and each signal channel provides two sets of potential-free contacts (normally open/normally closed).
Communication interface: supports industrial communication protocols (such as Modbus, PROFIBUS, etc.), which is convenient for integration with other control devices.
Environmental adaptability: the operating temperature range is -10℃ to +55℃, and the relative humidity is ≤95% (no condensation), which meets the needs of harsh industrial environments.
Functional Features
Potential isolation: the complete potential separation of input and output is achieved through relays to avoid electromagnetic interference affecting signal stability.
Redundant design: ABB 216GA61 supports multi-module collaborative work. When the main module fails, the backup module can take over seamlessly to ensure continuous operation of the system (requires redundant control system).
High reliability: adopts industrial-grade components, supports long-term stable operation, and has a high mean time between failures (MTBF).
Flexibility: the modular design allows the number of channels to be expanded according to needs, suitable for automation systems of different sizes.
Application Scenarios
Power protection system: In the REG216 digital generator protection solution, 216GA61 is used to control trip signals and status indications to ensure the safe operation of generators and transformers.
Industrial automation: Applicable to equipment control (such as motor start and stop, valve control) and process monitoring in the manufacturing industry.
Distributed control system: As the output unit of the PLC or DCS system, ABB 216GA61 realizes remote signal transmission and equipment linkage.
