Brand:ABB
Description:I/O CONTROL BOARD IOEC
Condition:New
Certificate:COO TEST REPORT WARRANTY LETTER
Warranty:1 year
Inventory Qty:6
Payment term:T/T
Shipping Port: Xiamen

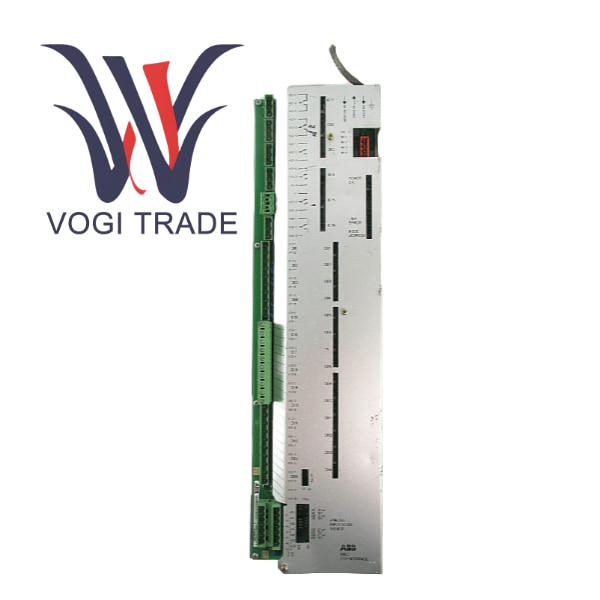

ABB 3BHB003041R0001 UFC719AE is a dedicated I/O control board designed and manufactured by ABB for its industrial automation and drive systems. According to the provided data table, this board card is not an independent modular I/O device that can be directly used on-site, but is integrated as a core functional component into a more complex Kit.
|
Manufacture |
ABB |
|
Model Number: |
UFC719AE |
|
Ordering Number |
3BHB003041R0001 |
|
Catalog |
VFD Spares |
|
Country Of Origin |
Sweden |
|
HS CODE: |
8517795000 |
|
Dimension |
45.7*5.1*16 CM |
|
Packing Dimension |
47*7.5*18CM |
|
Weight |
1.3kg |
Applicable Industry Scope
Since this I/O control board is part of the ABB PMAC series kit, the applicable industries for 3BHB003041R0001 depend entirely on the application field of the PMAC system. ABB's drive and automation products are widely used in
machining equipment, material handling, packaging machinery, printing machinery in the manufacturing industry.
The control of pumps, fans, compressors in the process industry, which is common in industries such as chemical engineering, petroleum and natural gas, water treatment.
Infrastructure HVAC, building automation.
Energy, renewable energy, auxiliary equipment for traditional power plants.
Comparison of advantages and disadvantages
|
Advantages |
Disadvantages |
|
Factory quality guarantee As an original ABB component, the quality and performance are exactly the same as the original equipment |
Non-independent product Cannot be purchased separately for new project development or non-ABB systems |
|
Perfect compatibility Specifically designed for the specific PMAC suite, ensuring seamless replacement without compatibility issues |
High cost As an original factory-specific spare part, the price is usually higher than general alternatives |
|
High reliability Inheriting the robust and durable characteristics of ABB industrial products |
Limited flexibility Functions and specifications are fixed and cannot be modified or expanded according to requirements |
|
Simplified maintenance Replacement by board cards is possible, resulting in high maintenance efficiency |
Dependence on ABB ecosystem Can only be used in ABB's specific product line |
|
Technical support Official ABB technical support and warranty services are available |
|
Installation Guide
Important Note! Since 3BHB003041R0001 is a board card integrated within the PMAC kit, the installation process does not mean installing it onto a DIN rail or frame. Instead, in a maintenance scenario, it should be replaced onto the corresponding PMAC kit motherboard. This operation must be carried out by an ABB-certified service engineer and must strictly follow ABB's official maintenance manual. Operation Procedure
Safety Preparation
Complete power outage ensures that the entire PMAC suite and its upstream power sources have been completely disconnected, and the locking/labeling procedure is executed.
Release residual energy. Wait for a sufficient amount of time for the DC bus capacitors inside the drive to fully discharge.
Anti-static measures Wear an anti-static wristband and operate on an anti-static workbench.
Remove old boards
Open the casing of the PMAC suite, find the UF C719 AE I/O control board.
Carefully disconnect all cables, connectors, or terminals connected to this board, and mark them for prevention of confusion.
Loosen and remove the screws or clips that fix the board.
Smoothly remove the old board from the socket or track.
Install new board
Visual inspection of the new 3BHB003041R0001 board confirms no physical damage.
Align the direction and smoothly, vertically insert the new board into the corresponding socket on the main board, ensuring all pins are fully in place.
Re-fix the screws or clips of the board.
Reconnect all cables and connectors according to the markings, one by one and firmly.
Power on and verification
Reassemble the casing of the PMAC suite.
Release LOTO, power on step by step according to the procedures.
Use ABB DriveComposer or related HMI to check if there are any I/O-related fault codes in the system.
Test I/O functions to verify if the input signals can be correctly read and the output signals can correctly drive the field equipment.
Again, emphasize!! This installation process involves high-voltage power electronic equipment. Improper operation may lead to serious personal injury or equipment damage. Non-professionals are strictly prohibited from operating.
