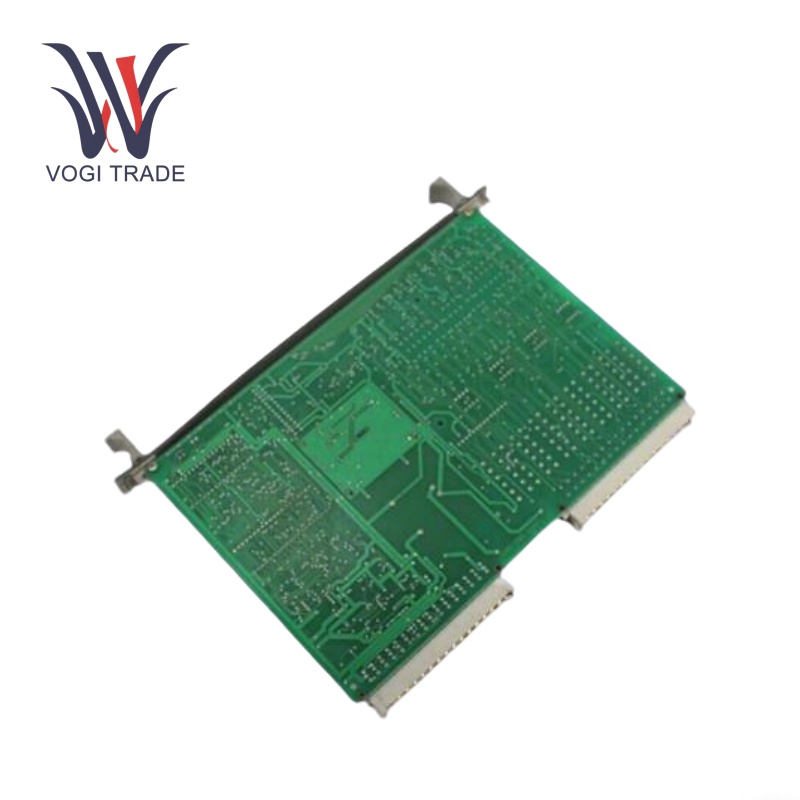

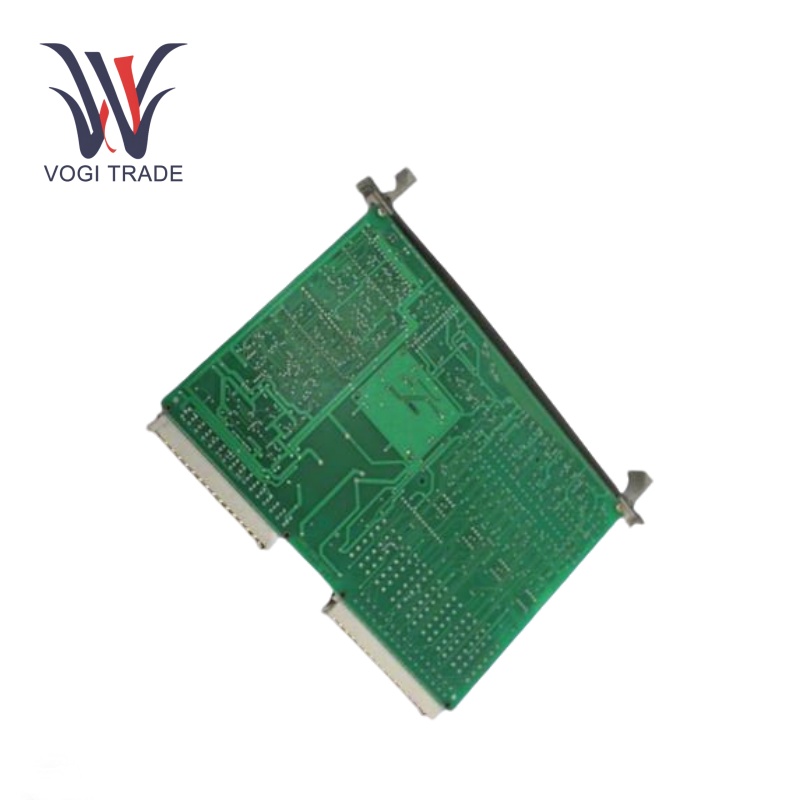

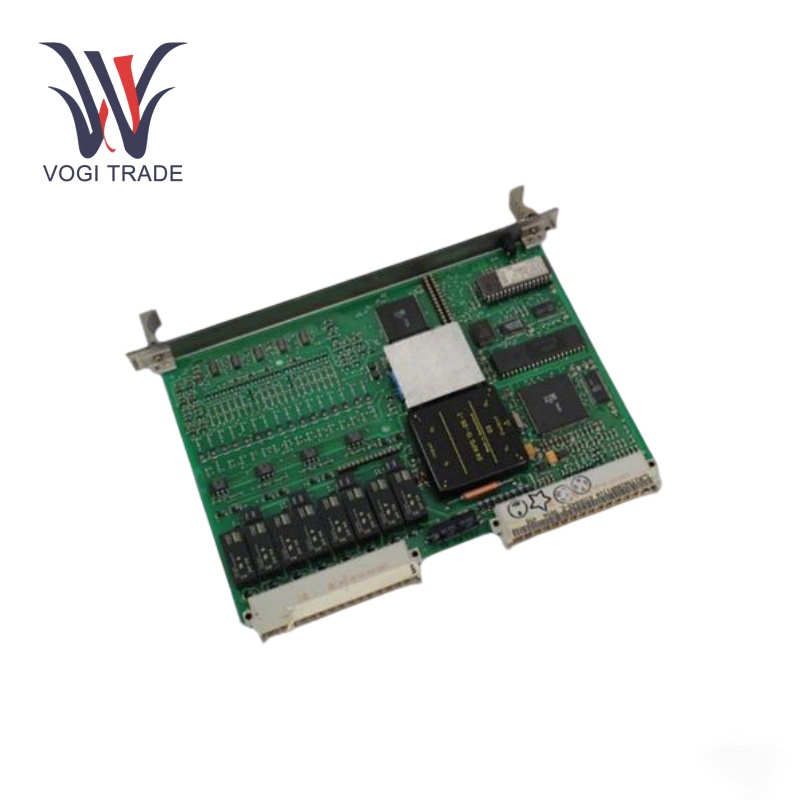

ABB 3BHL000986P0006

Operating Parameters

Voltage Range: Typically operates between 24V DC.

Current Rating: Designed to handle currents up to 2A.

Temperature Range: -25°C to +55°C.

Humidity: 95% relative humidity non-condensing.

Switching Frequency: Capable of high switching frequencies, suitable for rapid control tasks.

Protection Rating: The generally rated at IP20.

Product Functions

Communication Interface: The ABB 3BHL000986P0006 acts as a communication interface between field devices and higher level control systems. This allows for the secure transfer of data such as HTTP or Modbus and Profibus.

Processor State: The ABB 3BHL000986P0006 processes both analog and digital signal, so output signals like control commands and process data as well as display, can be spanned in all types of status. Makes it easy for seamless integration with other automation equipment.

Data Conversion: Data conversion itself, ability to convert signals from field devices into formats that are understandable by central controllers and vice versa. Enabling easier integration in multi protocol environments.

System Integration:The ABB 3BHL000986P0006 is instrumental in system integration, connecting various devices and systems together for holistic process monitoring, control, and automation.

Alarming and Diagnostics:The device offers diagnostic features to assist in detecting communication errors or system malfunctions. It can also set off alarms to notify operators about the faults or abnormal system conditions.

Installation

Site Arrangements: The area needs to be dry and clean and not subjected to excessive vibration and temperature. This device is designed to be installed in a control panel or an electrical enclosure to protect against environmental influences.

Attach the Device:Make sure that the mounting is safe to prevent mechanical stress from affecting performance.

Wiring the Device: Connect wiring as per the wiring diagram. Make sure input and output connections are solid and insulated.

Set up: Once installed, configure the device using your connected control system or programming interface Specifiy communication parameters, input output configuration, and any other, appropirate settings according to the application.

Error proof: After installation and configuration, comprehensive tests are conducted to confirm that the device is functioning as desired.

Application Scope

Industrial Automation:Se utiliza mucho en automatización de fábricas, para interconectar PLCs, HMIs y conmutadores. This kind of device frees up the complexity of the system but makes sure that all sides of the system talk to each other.

Process Control: The ABB 3BHL000986P0006 supports monitoring and controlling of equipment such as pumps, valves, and temperature controllers in industries such as chemical processing, oil and gas, and food manufacturing. It allows for real-time data exchange and system interoperability.

Energy and Utilities: The ABB 3BHL000986P0006 in generation plants and utility networks, it enables communication between electrical components like generators, circuit breakers, and transformers for reliable operation and monitoring.

Building Automation: The ABB 3BHL000986P0006 can be integrated into building management systems to monitor and control systems such as HVAC, lighting, and security, reducing energy consumption and enhancing building management.

Applications in Remote Monitoring: It is frequently used in remote monitoring systems to transmit essential information from sensors or other equipment over long distances to a centralized control system.

Troubleshooting

Check Power Supply: Make sure it is getting the right 24V DC power supply.If it does not go there, check that the power source itself is OK, check for blown fuses or loose wires.

Check Wiring Connections: Ensure that the wiring is securely connected and that there are no shorts or breaks. Referencing the wiring diagram, ensure all wiring connections are secure and making the proper contacts.

Communication Issues: If the device is not communicating with the control system or other devices, check the communication settings. Make sure you have the parameters set properly and matching the configuration of the connected devices.

Reset Device: If the device is completely frozen or not working properly, try resetting it to factory settings. This helps eliminate the possibility of software glitches or configuration errors.
