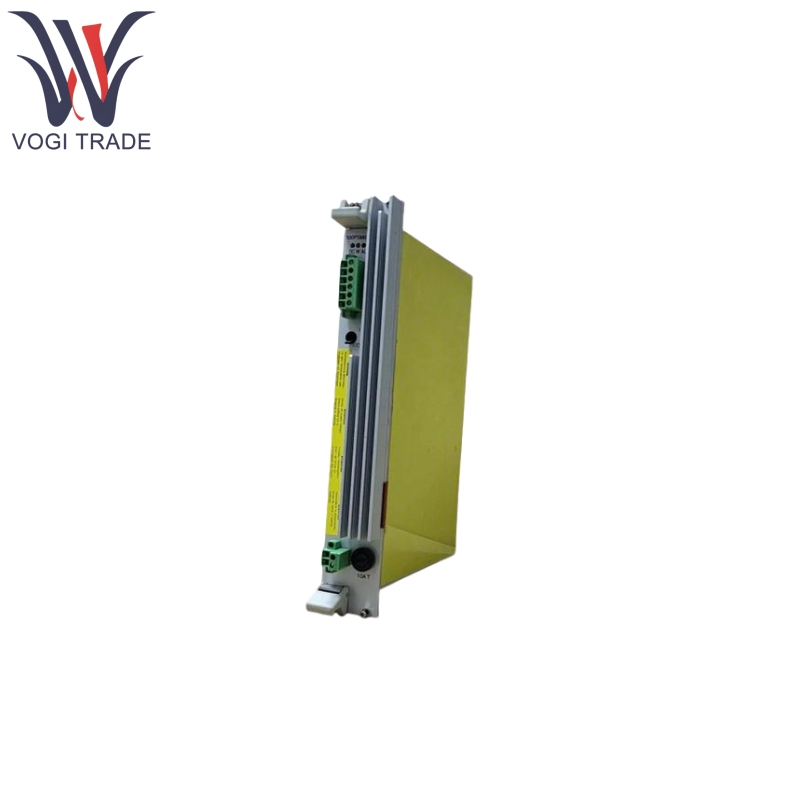

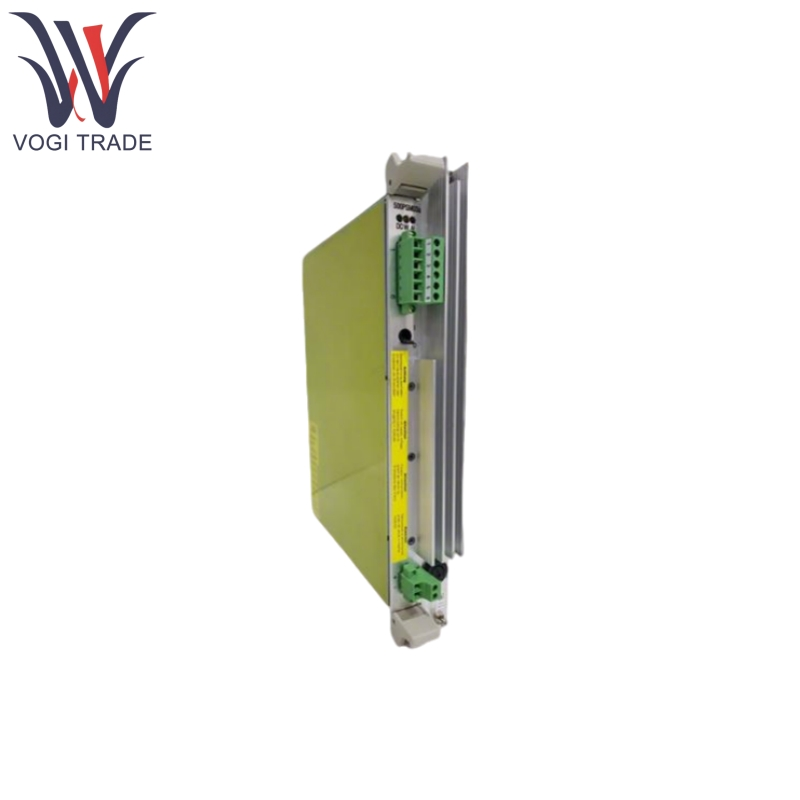

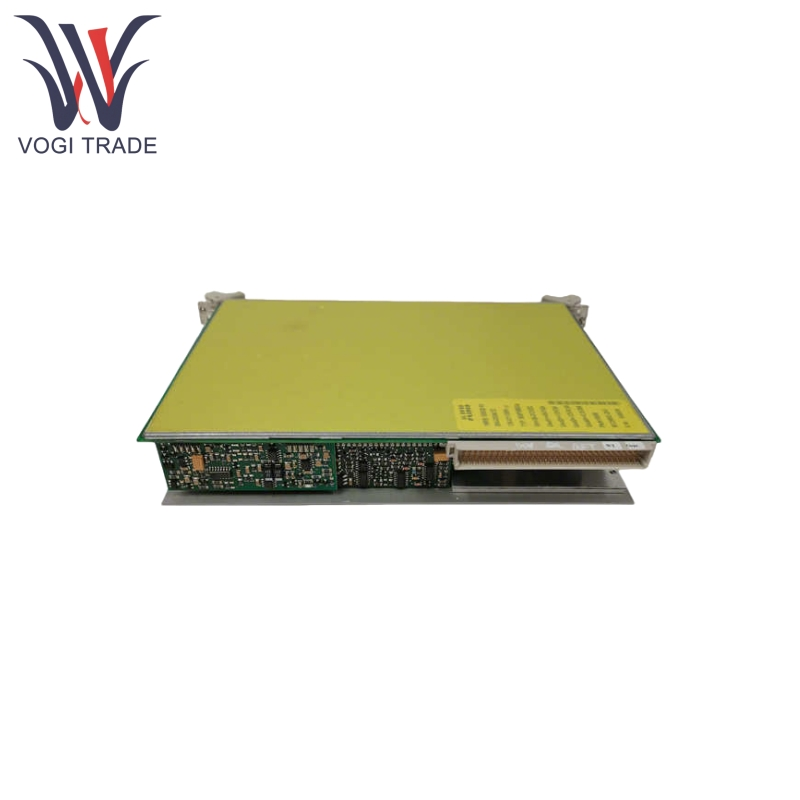

Brand: ABB Description: Power Supply Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB 500PSM03A 1MRB150038R1 is designed for use in space-constrained control cabinets or within equipment. Its core function is to convert wide-range AC power into a stable 24VDC output, providing reliable power support for industrial equipment such as PLCs, HMIs, and sensors. Featuring integrated multiple protection mechanisms, it ensures continuous operation in harsh industrial environments.
|
Manufacture |
ABB |
|
Model Number |
500PSM03A |
|
Ordering Number |
1MRB150038R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
16*12*6cm |
|
Weight |
0.6kg |
Product Features
ABB 500PSM03A 1MRB150038R1 supports 88-264VAC input (covering global mainstream grid standards), is suitable for large voltage amplitude difference of industrial environment.
ABB 500PSM03A 1MRB150038R1 offers up to 92% efficiency at full load, reducing energy loss and heat generation, making it suitable for extended operation.
ABB 500PSM03A 1MRB150038R1 features overload/short-circuit protection that automatically cuts off output to prevent equipment damage.
ABB 500PSM03A 1MRB150038R1 incorporates overvoltage/undervoltage protection that activates during abnormal input voltage conditions.
ABB 500PSM03A 1MRB150038R1 employs active surge current limiting to reduce inrush current impacts during power-up, extending module lifespan.
Product Functions
Rectification and Filtering:
ABB 500PSM03A input AC power is converted into high-voltage DC through a bridge rectifier, then smoothed by electrolytic capacitors.
High-Frequency Switching:
ABB 500PSM03A internal controller drives MOSFET switching transistors to chop the DC voltage into high-frequency pulses, achieving electrical isolation and voltage transformation via a transformer.
Secondary Rectification and Voltage Regulation:
ABB 500PSM03A high-frequency pulses from the transformer's secondary output are rectified by fast diodes and processed through an LC filter to produce a stable 24VDC output.
Feedback Control:
ABB 500PSM03A output voltage is fed back to the controller via an optocoupler, dynamically adjusting the switching transistor's duty cycle to ensure output accuracy.
Product Parameter
The following detail is for ABB 500PSM03A 1MRB150038R1 Power Supply Module.
|
Parameter |
Value / Range |
|
Input Voltage |
88-264VAC (47-63Hz) |
|
Input Current |
Maximum 2.3A (at full load) |
|
Output Voltage |
24VDC ±1% (adjustable range ±5%) |
|
Output Current |
Maximum 4.2A |
|
Power |
100W |
|
Efficiency |
Up to 92% |
|
Ripple and Noise |
≤1% of output voltage (typical) |
|
Protection Class |
IP20 (dust-proof, suitable for indoor installation) |
|
Dielectric Strength |
Input - Output: 3kVAC (for 1 minute) |
|
MTBF (Mean Time Between Failures) |
＞500,000 hours (at 25°C environment) |
