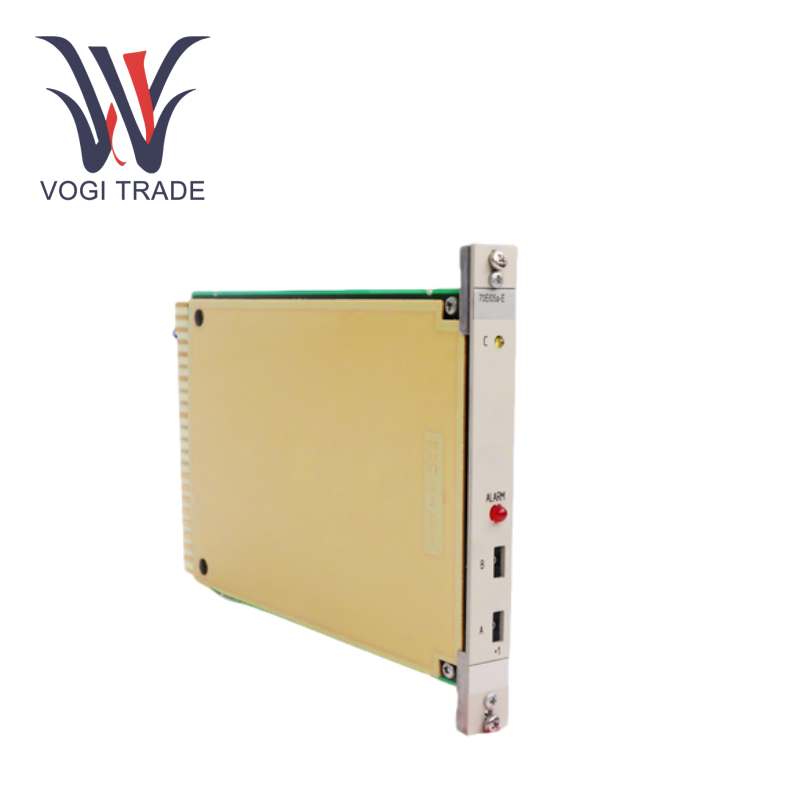

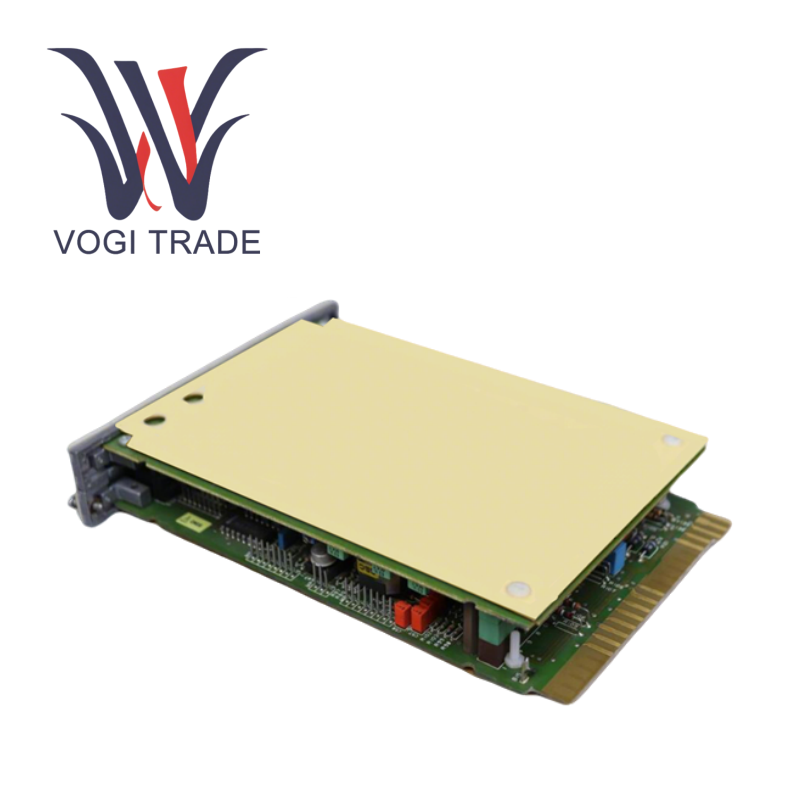

Brand: ABB Description: Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:4 Payment Term: T/T Shipping Port: Shenzhen ABB 70EA02A-ES HESG447308R1 is an input module that enables real-time data transmission and significantly improves the response accuracy and reliability of automation control systems.
|
Manufacture |
ABB |
|
Model Number |
70EA02a-ES |
|
Ordering Number |
HESG447308R1 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
25*3*12.5cm |
|
Packing Dimension |
27*5*14.5cm |
|
Weight |
Weight0.5kg |
Technical parameters
Working voltage: 24V DC
Number of channels: 8 analog input channels
Input type: Support digital/analog signals
Communication interface: Ethernet (10/100), Inline interface
Data processing: Support real-time online communication and large-capacity data transmission
Functional features
1. Multi-signal compatibility: ABB 70EA02A-ES HESG447308R1 supports a variety of sensor input types (such as temperature, pressure, flow, etc.), adapting to the diverse data acquisition needs of complex industrial scenarios
2. High anti-interference and stability: The module adopts industrial-grade design and built-in anti-noise technology. It can maintain stable operation in harsh environments such as high humidity and dust, ensuring zero error in signal transmission
3. Intelligent integration capability: ABB 70EA02A-ES HESG447308R1 integrates FTP function and WEB server, supports remote monitoring and data management, and is compatible with PLC, DCS and other control systems (such as ABB AC500 series)
4. High-efficiency processing: Through fast data conversion and real-time response mechanism, the system control accuracy and efficiency are significantly improved to meet the needs of high-speed and high-precision automated production lines.
Application scenarios
1. CNC machine tool tool positioning monitoring
In precision machining, ABB 70EA02A-ES HESG447308R1 collects tool position sensor data in real time through 8 analog input channels, with a control error of ≤0.1mm, ensuring high-precision cutting
2. Key parameter acquisition in power plants
In the gas turbine/boiler monitoring system, continuously collect temperature and pressure sensor signals (4~20mA) and transmit them to DCS via Ethernet to achieve overload warning and energy efficiency optimization
3. Intelligent warehousing and sorting production line
Connect photoelectric sensors and barcode readers to process cargo location and ID information in real time, trigger robotic arm sorting actions, and support high-throughput operations of ≥2,000 pieces per hour
