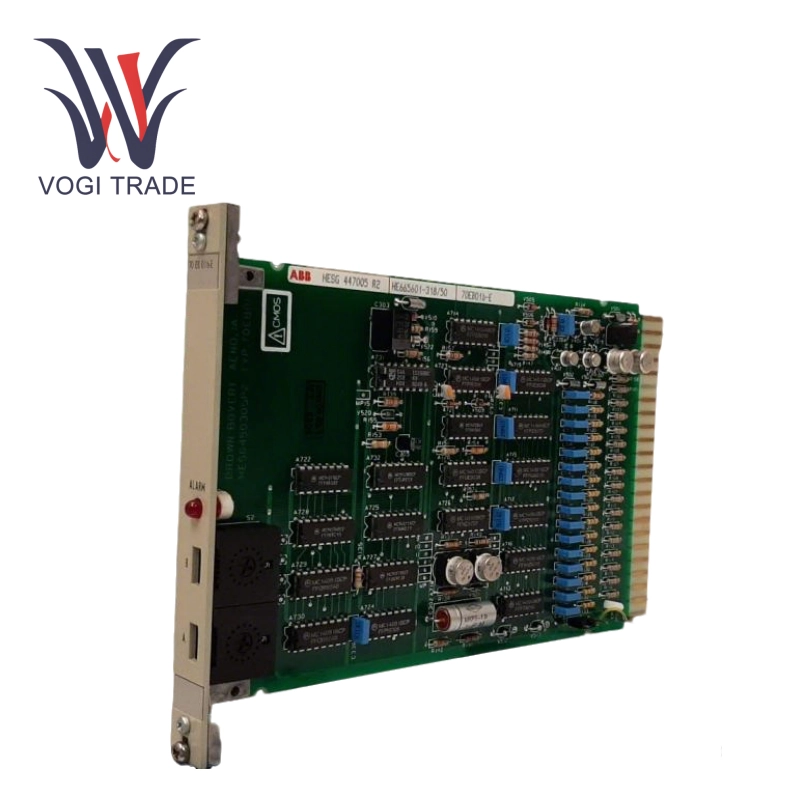

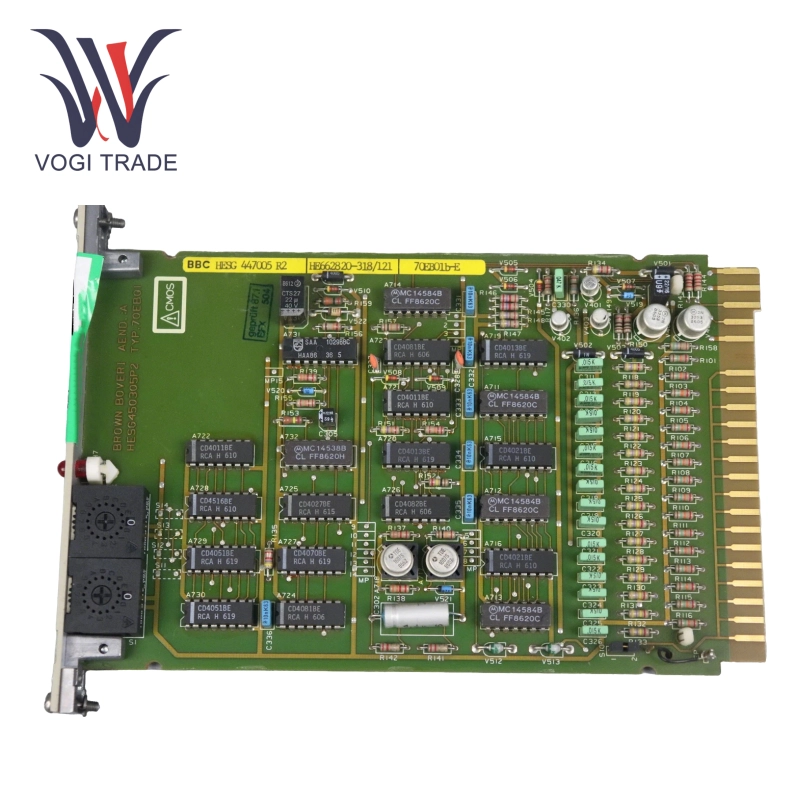

ABB 70EB01B-E HESG447005R2

Detailed technical parameters

Processor: High-speed industrial-grade processor, supporting real-time multi-task computing and complex control algorithms.

I/O expansion capability: Supports digital/analog input and output modules (such as DSDX451L, DSCS140), and can be expanded to a maximum of 128 signal channels

Communication interface: Dual Ethernet ports (10/100Mbps), integrated Profibus, Modbus TCP/IP protocols, supporting redundant communication

Environmental adaptability: Operating temperature range -25°C to +70°C, protection level IP20, vibration resistance 5g@10-150Hz (in accordance with IEC 60068-2-6)

Power supply specifications: Input voltage 24VDC ±10%, rated power consumption ≤15W, built-in overvoltage/short-circuit protection circuit

Functional features

1.Industrial-grade reliability: ABB 70EB01B-E HESG447005R2 adopts redundant power supply design and enhanced PCB coating to ensure continuous and stable operation in harsh environments such as dust and high humidity, with a failure interval time  ≥ 150,000 hours

2. Modular and flexible configuration: By being compatible with DSDX series I/O modules, ABB 70EB01B-E HESG447005R2 can quickly adapt to diverse needs such as discrete control and process regulation, shortening the system integration cycle

3. Multi-protocol collaborative control: Built-in dual network ports support Ethernet/IP and mainstream fieldbuses, realizing real-time data synchronization between ABB 70EB01B-E HESG447005R2 and AC 800M DCS and third-party PLCs, improving production line collaboration efficiency

4. Intelligent diagnosis and maintenance: The integrated real-time self-diagnosis engine can monitor the temperature and voltage anomalies of the board and generate early warning logs, which are remotely pushed to the ABB Ability™ EDCS platform to reduce unplanned downtime

Application scenarios

1.Chemical process control: pharmaceutical reactor temperature/pressure closed-loop regulation (PID algorithm real-time execution)

2. Thermal power safety interlock: coal-fired boiler feed pump start-stop logic and overpressure protection

3. Oil and gas explosion-proof system: offshore platform ESD emergency shut-off valve control (ATEX Zone 1 certified environment)

4. Intelligent water treatment: sewage plant aeration fan variable frequency speed regulation and energy consumption optimization (based on Modbus TCP data interaction)
