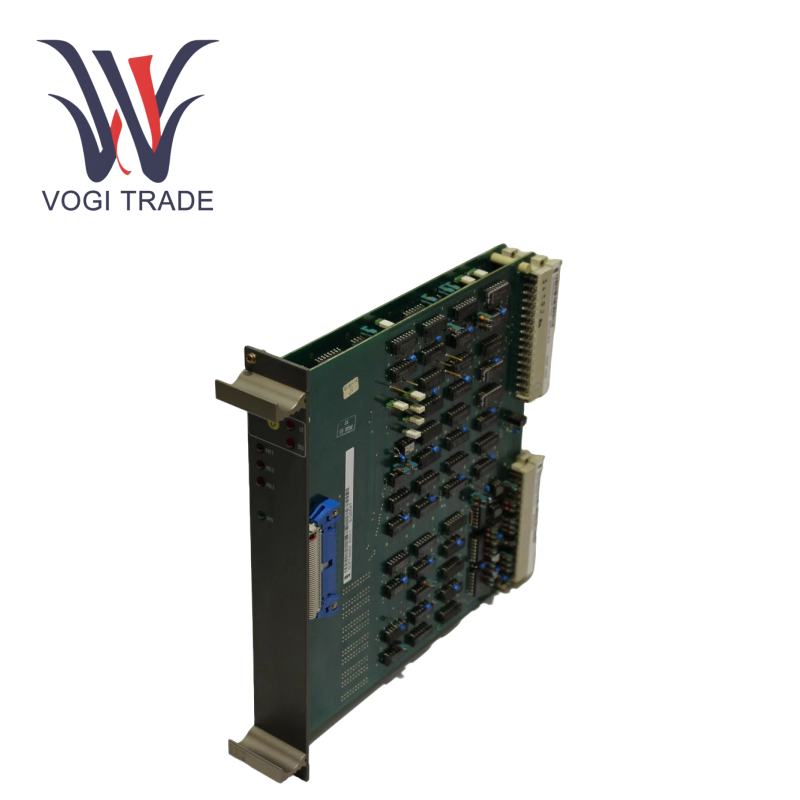

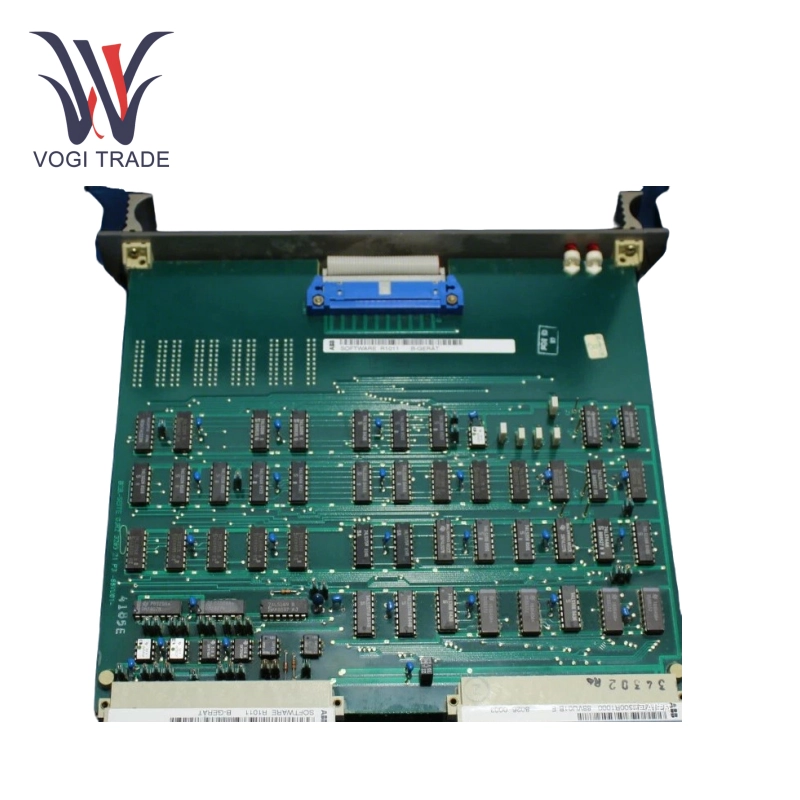

Brand: ABB Description:Control Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:6 Payment Term: T/T Shipping Port: Shenzhen ABB 88VU01B-E GJR2326500R1000 is a control module designed for harsh industrial environments, integrating core logic control and real-time data processing functions, supporting distributed deployment and anti-interference operation.
|
Manufacture |
ABB |
|
Model Number |
88VU01B-E |
|
Ordering Number |
GJR2326500R1000 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8504902000 |
|
Dimension |
15*15*3cm |
|
Packing Dimension |
17*17*5cm |
|
Weight |
0.8kg |
Technical parameters
Input voltage: 24V DC (±10% tolerance).
Power consumption: Typical value ≤5W (when running at full load).
Operating temperature: -40°C to +70°C.
Protection level: IP67 (dustproof and waterproof, suitable for oily and high humidity environments)
Memory capacity: 256KB (user program storage).
Digital input/output: 16 isolated DI + 16 relay DO (contact capacity 2A/230V AC).
Communication interface: 10/100Mbps Ethernet (RJ45), RS485 (supports Modbus RTU protocol)
Functional features
Real-time control and high reliability
ABB 88VU01B-E GJR2326500R1000 adopts anti-electromagnetic interference (EMC) design, built-in hardware watchdog and redundancy check mechanism to ensure stable operation under strong electromagnetic fields or voltage fluctuations, and the failure rate is less than 0.1%/year
Multi-protocol communication and edge computing
GJR2326500R1000 supports EtherNet/IP, PROFINET and OPC UA protocols, and can be seamlessly integrated with ABB Ability™ edge computing platform. ABB 88VU01B-E GJR2326500R1000 can process field data in real time and optimize control instructions, reducing cloud dependence
Programming flexibility and diagnostic functions
Compatible with IEC 61131-3 standard programming languages (ladder diagram, structured text), the built-in self-diagnostic system can monitor module status, network anomalies and I/O faults, and output alarm information through LED indicators or logs to shorten maintenance time
Expandability and compatibility
ABB 88VU01B-E GJR2326500R1000 supports modular expansion, can directly connect ABB series I/O modules (such as GJR232 series) and HMI panels, and is compatible with gateway protocols of third-party PLC systems (such as Siemens and Rockwell)
Compatible supporting products
Expansion modules: GJR232 series digital/analog I/O modules, GJR230 communication gateway.
Upper system: ABB AC500 PLC series, CP600 HMI touch screen.
Software tools: ABB Automation Builder (programming configuration), Mint Workbench (motion control debugging)
Power adapter: ABB CPS series 24V DC industrial power supply (such as CPS20 / CPS40).
Application scenarios
Heavy industrial control: metallurgical blast furnace fan speed control system, mining crusher interlocking protection.
Energy facilities: oil platform pump valve control, natural gas compressor explosion-proof logic unit.
Ship automation: main engine remote control (M/E Control), ballast water management system core controller.
Intelligent production line: automotive welding robot motion coordination, paper printing tension closed-loop control
