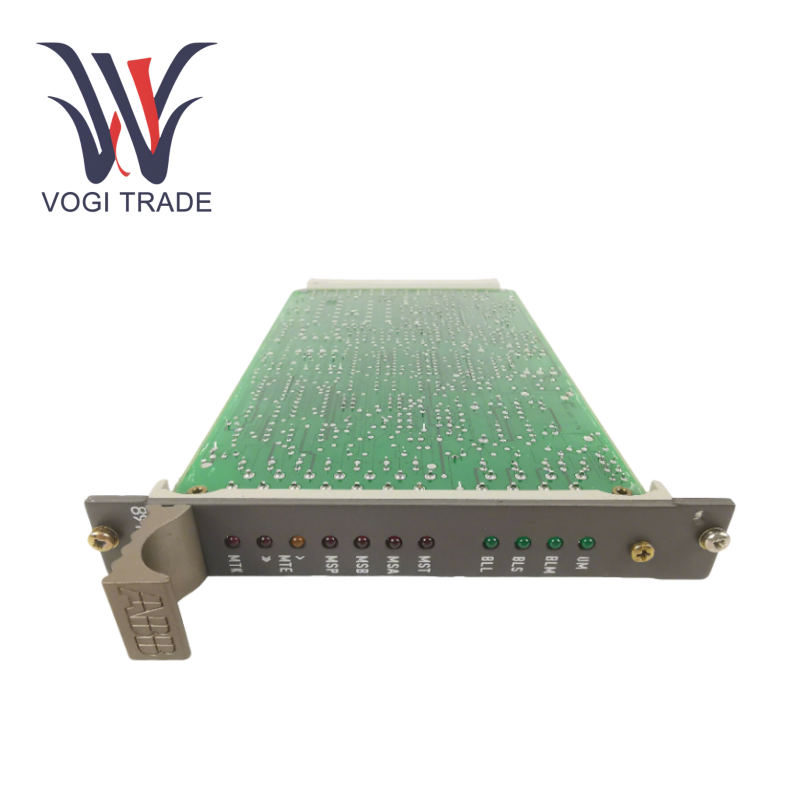

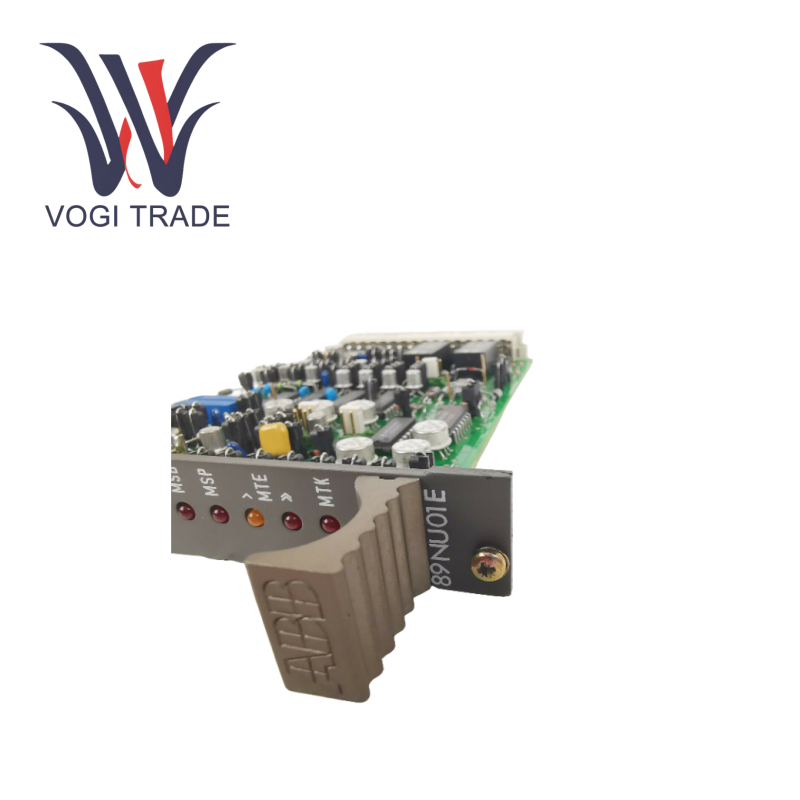

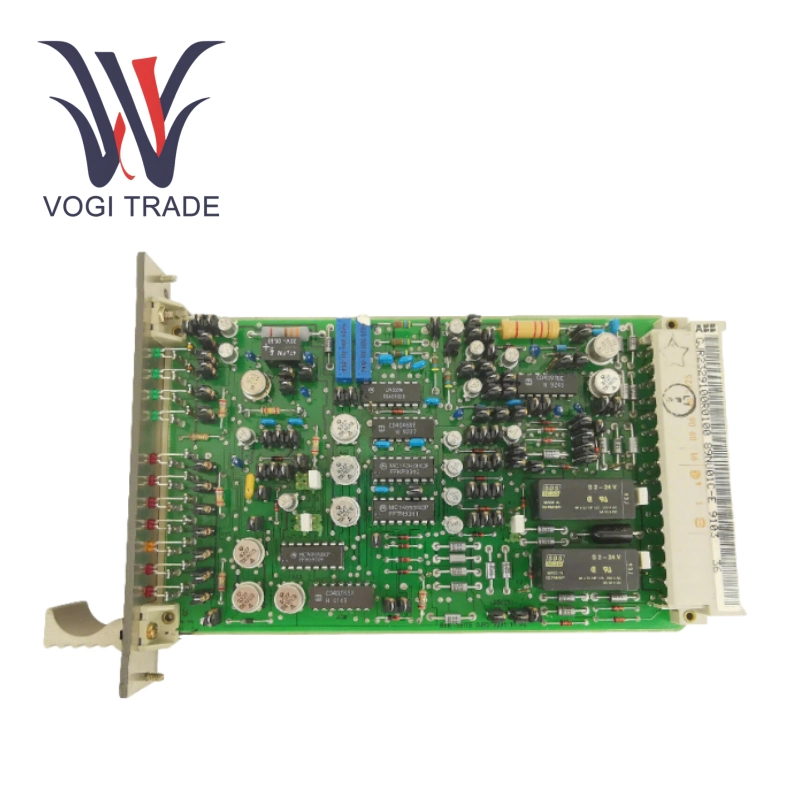

ABB 89NU01C-E GJR2329100R0100

Technical parameters

Structure type: integrated PLC (including basic unit and expansion unit combination)

CPU integration: built-in central processing unit, supports basic logic operations and instruction execution

I/O interface: standard digital I/O port, the specific number of points needs to refer to the specifications of the supporting expansion unit

Expansion capability: connect expansion units without CPU via flat cables

Special function unit support: compatible with analog units (such as temperature/pressure acquisition), position control units (such as stepper motor drive)

Communication interface: standard programmer/EPROM writer interface, specific protocol is not clearly stated

Working voltage: not clearly marked, typical industrial grade 24VDC or 110-240VAC

Protection level: not clearly stated, suitable for standard industrial environment

Functional features

Highly integrated design

ABB 89NU01C-E GJR2329100R0100 concentrates core components in a single chassis, significantly reducing installation space requirements, especially suitable for small equipment or distributed control nodes

Modular expansion capability

Supports fast connection of expansion units via flat cables, flexible increase of I/O points (such as sensor/actuator interface), meeting different scale control requirements, reflecting the configuration flexibility of ABB 89NU01C-E GJR2329100R0100

Multi-function compatibility

Can be used with analog modules to realize process parameter monitoring (such as flow, temperature), or integrated position control unit to drive mechanical axis, expanding its application scenario adaptability

Economic and reliability balance

As an entry-level industrial controller, ABB 89NU01C-E GJR2329100R0100 provides stable basic control functions in cost-sensitive projects, reducing system complexity and maintenance costs

Application scenarios

1. Small packaging machinery control

Control the start and stop sequence of the conveyor belt, the action of the sorting mechanism and the packaging sealing process to realize basic automated assembly line management

2.Coordination of loading and unloading of machine tools

Connect multiple CNC devices, manage the positioning logic and safety interlock of the loading and unloading robot arm, and adapt to the material flow of the machining center

3. Simple destacking workstation

As an auxiliary controller, manage the synchronization of conveyor belts and layer height detection, and cooperate with the main robot to complete the box stacking logic

4. Environmental monitoring node

Expand the temperature and humidity sensor module to realize the data collection and alarm triggering function of the local area of  the workshop

5. Light assembly station

Control the indexing positioning and assembly action sequence of pneumatic clamps and rotary platforms, suitable for electronic component assembly lines
