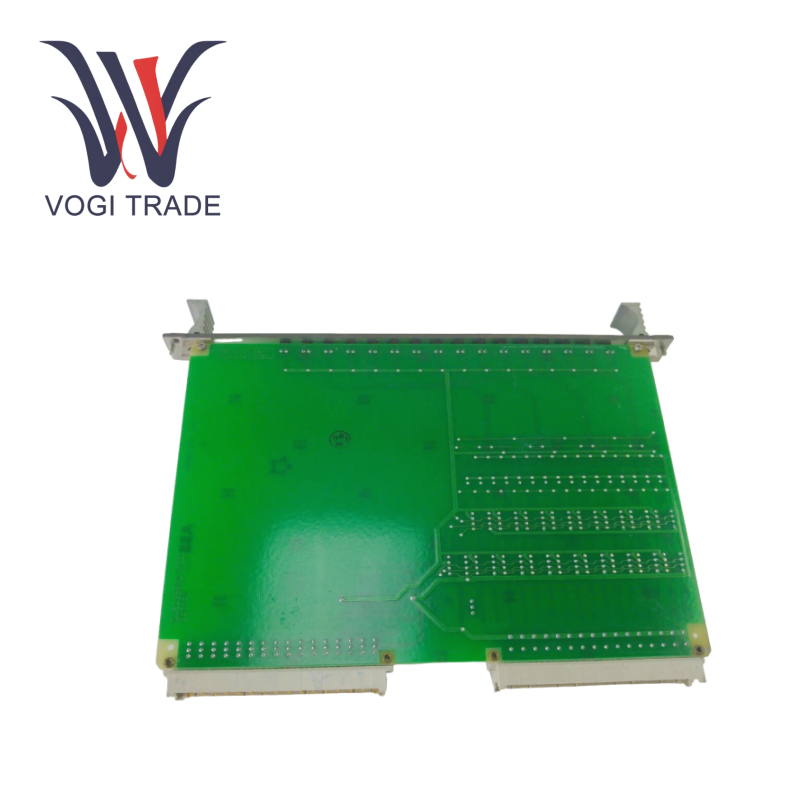

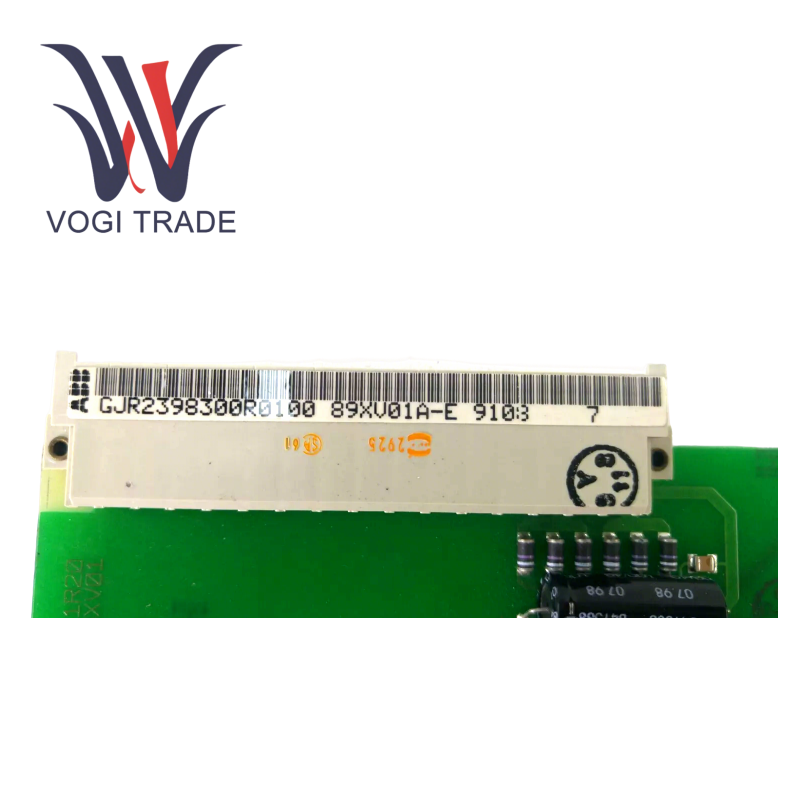

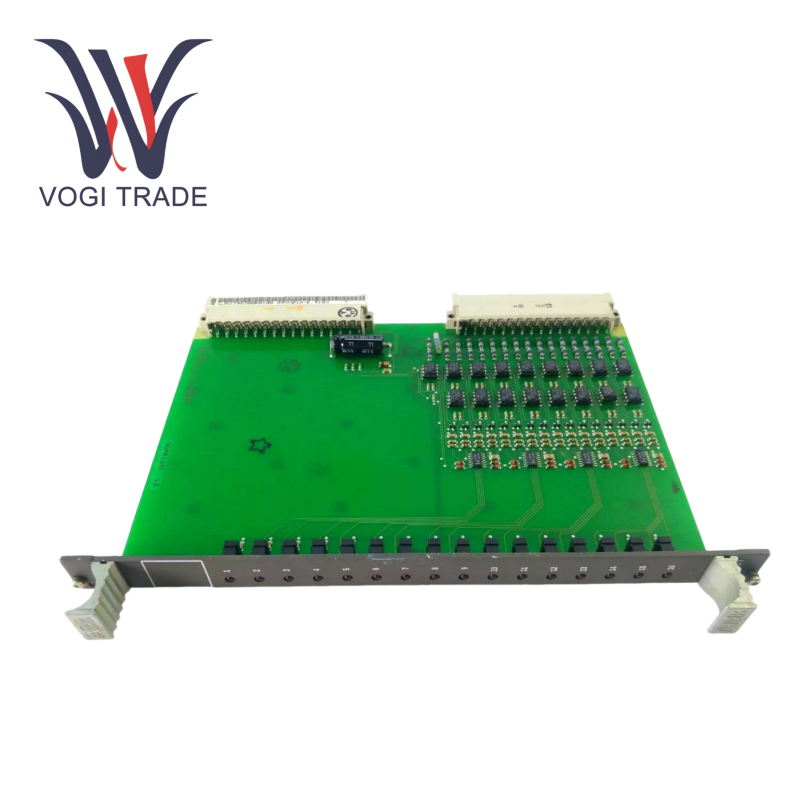

Brand: ABB Description:Control Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:6 Payment Term: T/T Shipping Port: Shenzhen ABB 89XV01A-E GJR2398300R0100 is a control module designed for motor start and stop control, equipment protection and system integration, which can achieve precise current management and high stability operation.
|
Manufacture |
ABB |
|
Model Number |
89XV01A-E |
|
Ordering Number |
GJR2398300R0100 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8504902000 |
|
Dimension |
25*15*3cm |
|
Packing Dimension |
27*17*5cm |
|
Weight |
1kg |
Technical parameters
Working voltage: 220V AC/DC
Rated current: 30A (continuous load), peak withstand current: 181A (instantaneous)
Output frequency: 30kHz
Protection level: IP54 (dustproof and waterproof, suitable for dusty and humid environments)
Communication protocol: Support Modbus RTU, Profibus-DP, Ethernet/IP
Working temperature: -25℃ to +55℃ (transportation/storage); +5℃ to +45℃ (operation)
Mechanical life: ≥10 million operating cycles
Electrical life: ≥100,000 load disconnections
Certification standards: CCC, UL, CE
Features of 89XV01A-E
High-precision motor control
ABB 89XV01A-E GJR2398300R0100 uses dynamic torque compensation technology to optimize the motor start-stop curve in real time, reduce mechanical shock, and extend equipment life (such as conveyor belts, pump loads)
Seamless integration of multiple protocols
Through the built-in communication interface, ABB 89XV01A-E GJR2398300R0100 can be directly connected to PLC (such as AC500 series), HMI (such as SP500 touch screen) and SCADA system to achieve real-time data monitoring and remote diagnosis
Anti-interference and long-life design
GJR2398300R0100 adopts ceramic substrate and gold-plated contacts, combined with a fully sealed structure, to ensure stable operation in strong electromagnetic interference environments (such as welding workshops, inverter cabinets), and reduce the failure rate by 40%
Customized function expansion
ABB 89XV01A-E GJR2398300R0100 supports software-defined logic (such as delayed triggering, interlock protection), and 89XV01A-E can adapt to complex control requirements through external expansion cards (such as GJR series I/O modules)
Application scenarios
Automobile manufacturing: Motor start and stop control of body welding line, and precise positioning with robots (load: 5-30kW motor)
Food processing: Conveyor belt speed regulation of filling equipment, IP54 protection to withstand cleaning agent corrosion
Mechanical processing: CNC machine tool spindle motor protection, real-time temperature/current data feedback through Modbus
Energy management: Photovoltaic inverter auxiliary circuit control, compatible with DC/AC hybrid power supply scenarios
