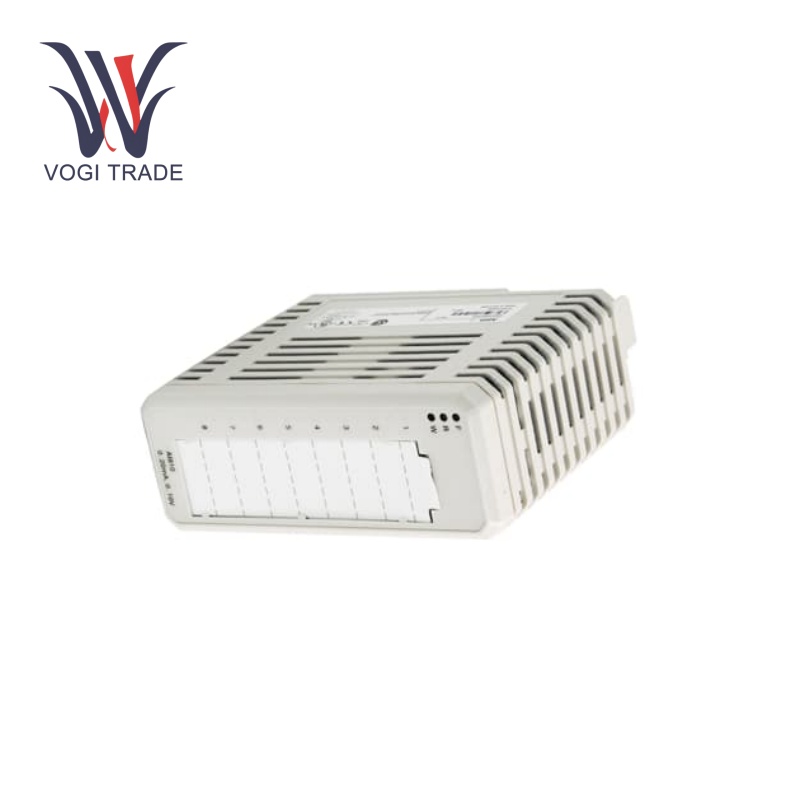

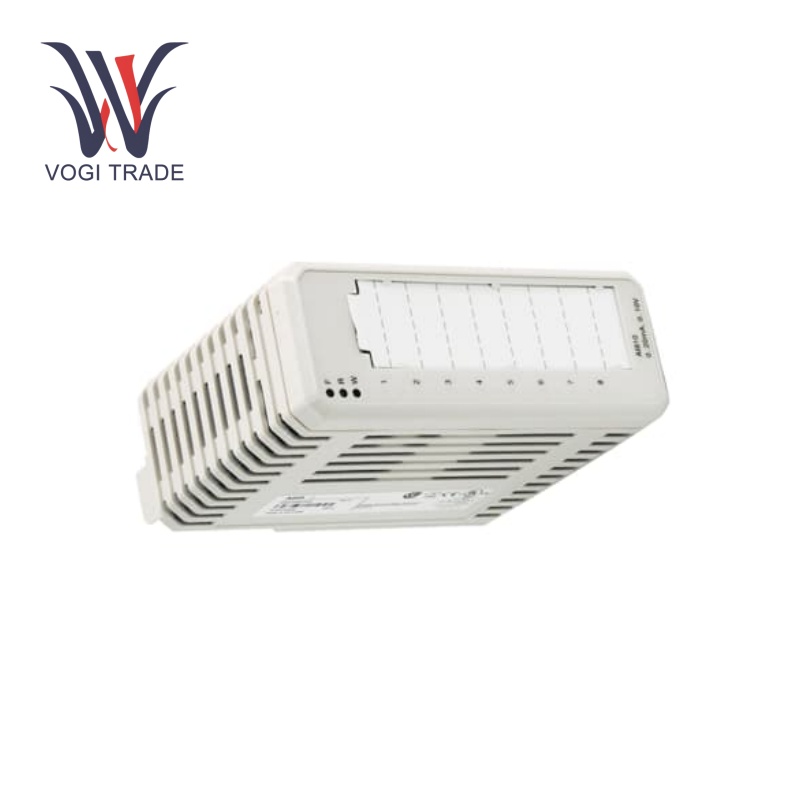

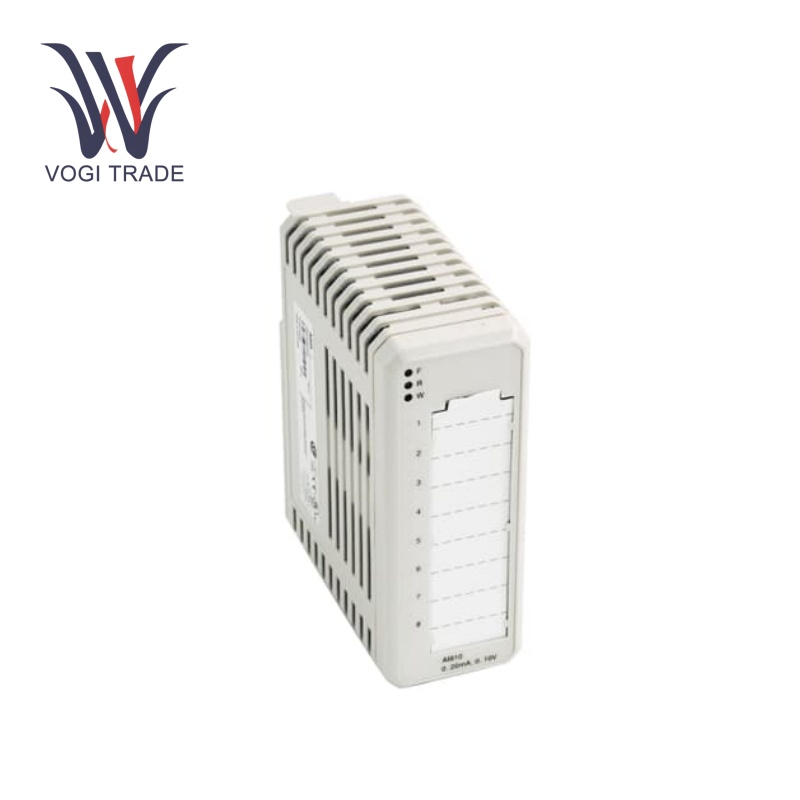

ABB AI810

Technical parameters

Signal type: supports 0...20mA, 4...20mA, 0...10V, 2...10V DC, single-ended unipolar input

Resolution: 12 bits

Input impedance: 290kΩ ; 230 - 275kΩ

Under/over range: -5% , +15%

Input filter: Rise time 0 - 90% is 140ms

Maximum input voltage (lossless): 30V DC

Power consumption: 1.5W

Operating temperature: 0 to +55°C , +5 to +55°C approved

Storage temperature: -40 to +70°C

Relative humidity: 5 to 95%, no condensation

Protection level: IP20

Functional features

Signal processing module: ABB AI810 adopts advanced signal processing technology to accurately convert voltage, current and other analog signals into digital signals, providing a high-quality data foundation for subsequent computer processing. The module integrates many circuits and circuits of signal processing: filtering, amplification, sampling and holding, etc. to ensure the accuracy and stability of signal processing, the need for industrial automation for high precision signal processing.

Communication function: ABB AI810 supports HART communication protocol, which can achieve seamless communication with intelligent sensors and ensure real-time transmission and accurate interaction of data. It allows the module to be integrated into the industrial automation system efficiently, and simultaneously enhances the intelligence level of the system.

Input protection: ABB AI810 adopts PTC resistor as input shunt resistor, and it can protect up to 30V, and the same analog input also has short circuit protection function, the protection up to ZP or + 24V, the module can work safely under abnormal conditions. Their protection mechanisms toughen the module, making it reliable and durable, even in complex industrial environments.

All features: ABB AI810 can support hot-swap operation, which greatly facilitates the installation and maintenance process and reduces system downtime. Flexible, use the system to program and configure the module according to the specific requirements of the application, and meet a variety of applications. Such high degree of customizability allows ABB AI810 to adapt itself to the requirement of various industrial infrastructure ensuring better control and versatility of the system.

Application areas

Industrial automation: ABB AI810 is used in several industries (chemical processing, oil and gas, food, and beverage) to maintain and handle different process variables. Its accurate transformation of sensor analog signals facilitates accurate manufacturing process control for product quality and safety.

Control transmission and distribution of electricity: The ABB AI810 can accurately convert the final output and feedback of various analog signals so that real-time optimized electricity generation and control of grid stability can make relevant judgments to prevent equipment failure. It can monitor the voltage and current of each substation and each distribution point In the distribution network, it can assist in detecting and solving power quality problems.

Environmental monitoring: ABB AI810 is often used in applications for environmental monitoring, such as water treatment plants, air quality monitoring stations, and waste management facilities. Real time data for environmental assessment and regulatory compliance are provided by accurate ADC conversion.

Smart Building Integrated Systems: Enables modulation of heating, ventilation, and air conditioning (HVAC) system, lighting systems, and other services in a smart building. When analog signals converted to digital data, this would result in adjustment of energy use by the aforementioned systems to align with the comfort of indoor environment.
