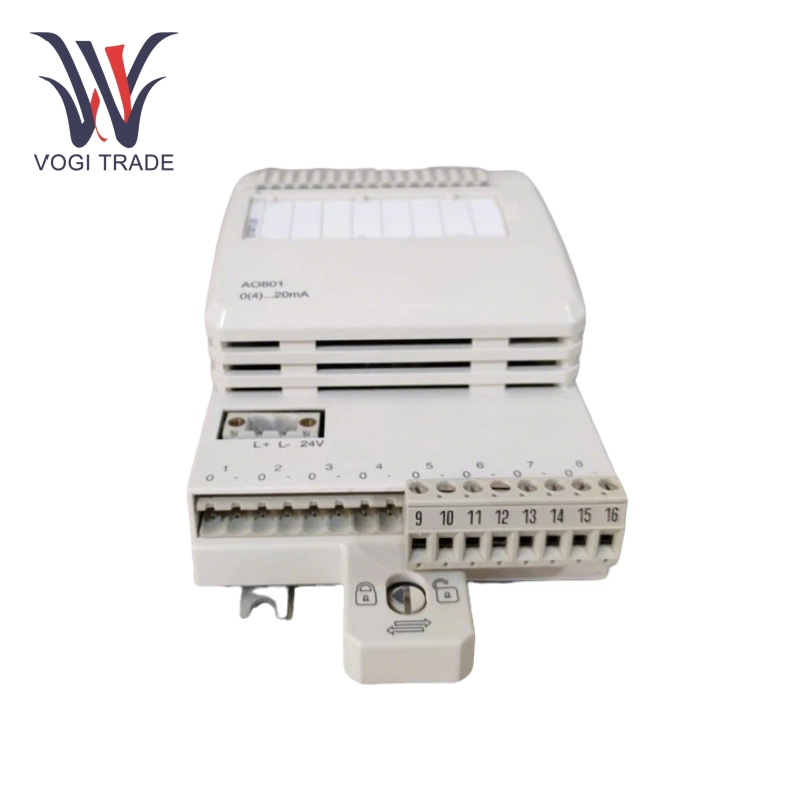

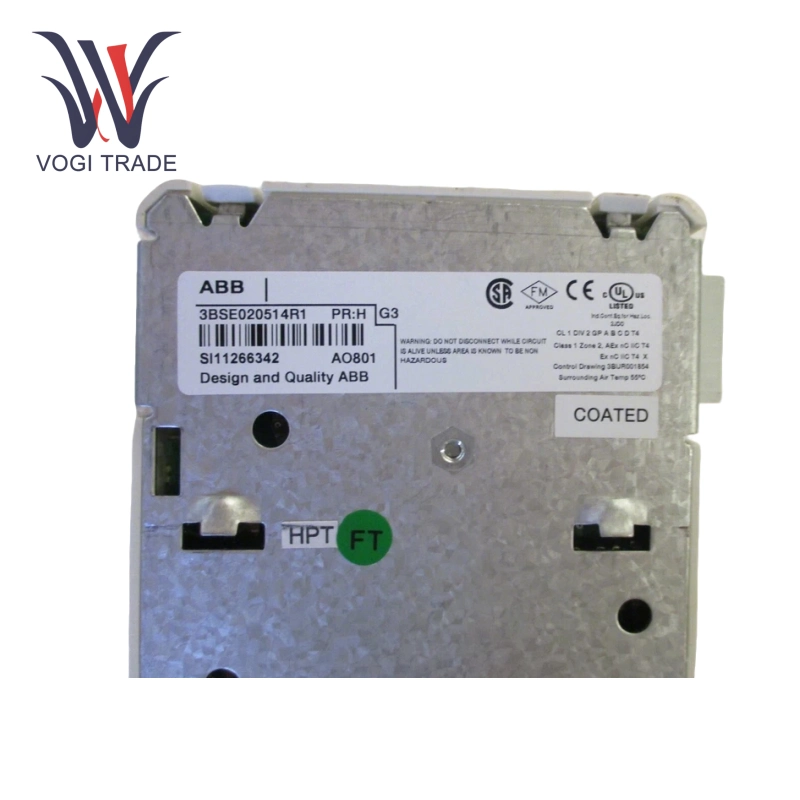

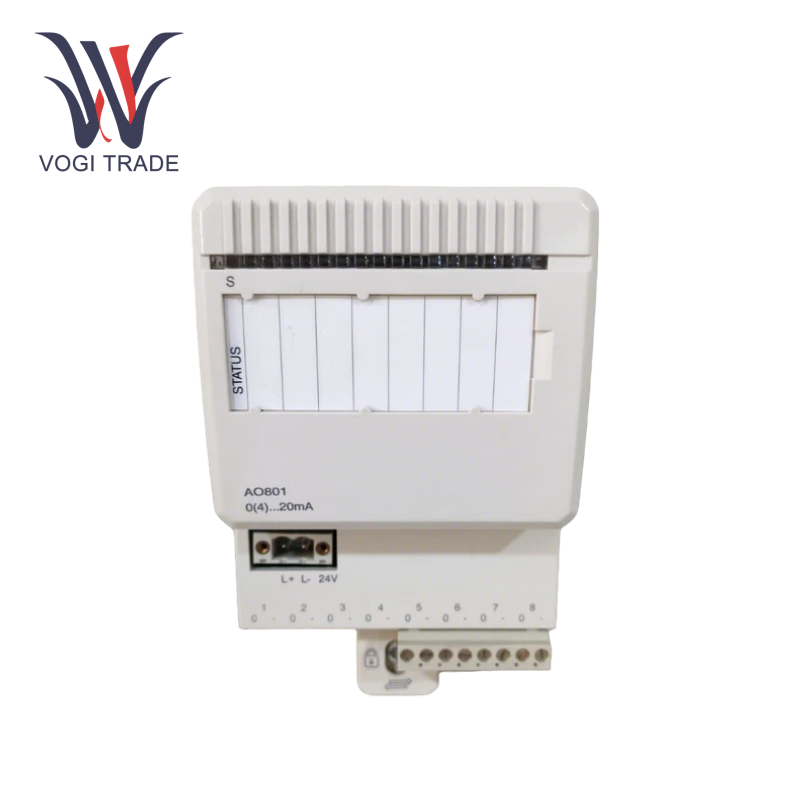

Brand: ABB Description: Analog Output Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen ABB AO801 3BSE020514R1 is an 8-channel analog output module designed for industrial automation systems. It is a core component of the ABB S800 I/O series. It is mainly used to convert digital signals of the control system into high-precision analog signals (such as current signals) to drive actuators, valves, inverters and other equipment.
|
Manufacture |
ABB |
|
Model Number |
AO801 |
|
Ordering Number |
3BSE020514R1 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
12*9*6CM |
|
Packing Dimension |
15*12*10CM |
|
Weight |
0.5kg |
Technical parameters
Channel type: 8-channel non-isolated single-ended analog output
Output signal range: 0–20 mA / 4–20 mA (configurable)
Resolution: 12 bits, accuracy ±0.1%
Load capacity: Maximum output load: 850 Ω
Isolation performance: Group isolation (isolation to ground), withstand voltage 500 V AC (1 minute)
Response time: Rise time 10 µs, update cycle 1 ms
Power supply requirements: +24 V external power supply, current consumption 200 mA; +5 V module bus power supply, current 70 mA
Operating temperature: 0°C to +55°C (operation), -40°C to +70°C (storage)
Protection level: IP20 (dust and drip proof), in line with ISA-S71.04 G3 level corrosion protection standard
Principle of use
Signal conversion and output: The controller (such as AC 800M) sends digital instructions to the AO801 module via Modulebus.
The internal DAC (digital-to-analog converter) of ABB AO801 3BSE020514R1 converts the digital signal into an analog current signal of 0–20 mA or 4–20 mA, which is output to the field device through the MTU (module terminal unit).
Self-diagnosis and protection: ABB AO801 3BSE020514R1 periodically performs self-tests to detect faults such as short circuits and overloads, and indicates the operating/fault status through the status LED (S light). When an abnormality is detected, the OSP (output safety state) function is triggered to switch the output to a preset safety value (such as keeping the last value or returning to zero).
Redundancy and expansion: Supports redundant configuration (requires redundant power supply and communication modules) to ensure high system availability. Each CI801 communication interface can connect up to 7 AO801 modules, which is suitable for large-scale distributed I/O systems.
Functional characteristics
High-precision control: 12-bit resolution combined with an error rate of ±0.1% ensures the accuracy of signal output, which is suitable for process control scenarios with strict accuracy requirements.
Flexible configuration: Programmable output range (0–20 mA or 4–20 mA), support for HART protocol (specific version required), compatible with smart instrument communication.
Reliability and durability: Short-circuit protection design, the output can withstand short-circuit with +24 V power supply or ground (ZP).
Convenient diagnosis and maintenance: The front LED status indicator shows the module operating status (normal/fault) in real time. Support remote monitoring and debugging through Compact Control Builder software to reduce downtime.
Wide compatibility: Seamless integration with ABB 800xA, AC 800M and other systems, and compatible with third-party PLC or DCS systems through GSD files.
