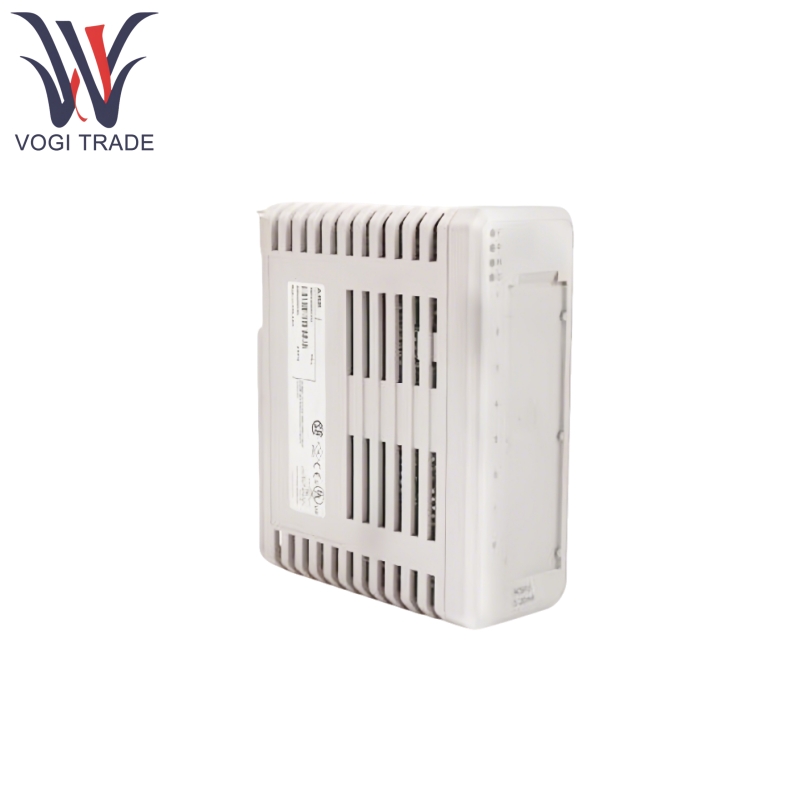

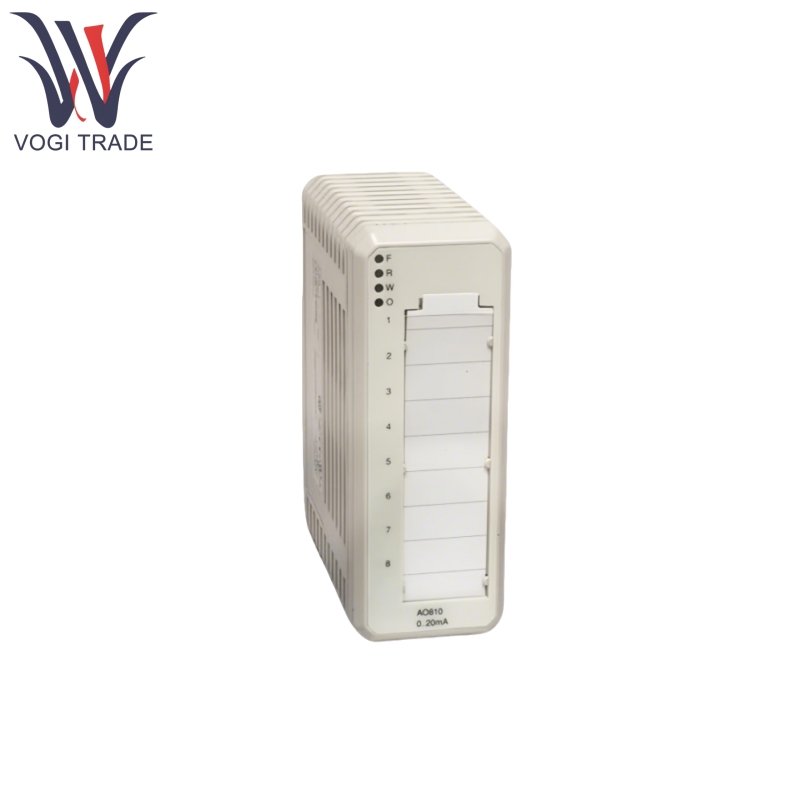

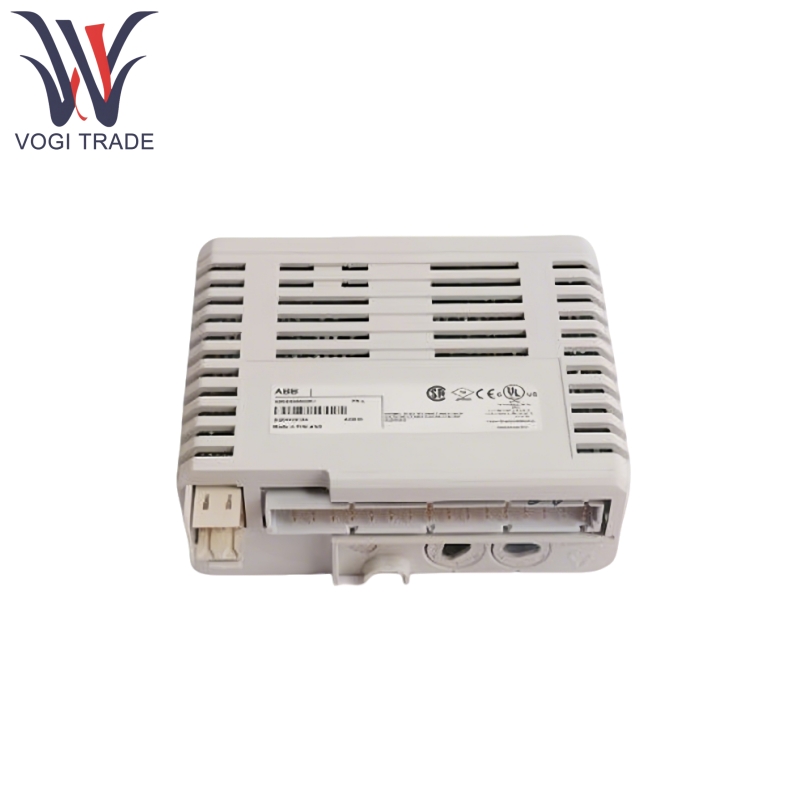

Brand: ABB Description: Analog Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB AO810V2 is an upgraded version of AO810, with the main function of accurately converting digital control signals into analog signals for driving and controlling actuators in industrial sites. Focusing on reliability and flexibility in industrial automation scenarios, it can be seamlessly integrated into control systems such as ABB 800xA and is also compatible with mainstream PLC/DCS systems. It is widely used in process control and equipment regulation fields.
|
Manufacture |
ABB |
|
Model Number |
AO810V2 |
|
Ordering Number |
3BSE038415R1 |
|
Catalog |
S800 I/O |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
12*10*6cm |
|
Weight |
0.2kg |
Product Features
ABB AO810V2 features 8 independent analog output channels, each of which can be individually configured for output type and range, enabling simultaneous control of multiple actuators without interference.
ABB AO810V2 offers 16-bit resolution, ensuring minimal conversion error between digital and analog signals, meeting the requirements for high-precision control.
ABB AO810V2 supports open-circuit and overcurrent detection, triggering fault alerts via indicator lights and system alarms. When the supply voltage drops below the threshold, the module automatically reports the fault and records it.
ABB AO810V2 can monitor hardware status in real time, ensuring long-term stable operation.
ABB AO810V2 supports online hot-swapping, allowing modules to be replaced without shutting down the system, reducing maintenance downtime and improving system availability.
ABB AO810V2 supports Profibus DP or Ethernet communication, enabling seamless integration with ABB 800xA, third-party PLCs, and DCS systems for real-time data exchange.
Product Using Principle
ABB AO810V2 can receive digital control commands from the controller.
ABB AO810V2 converts digital signals into corresponding analog signals internally through a 16-bit DAC (digital-to-analog converter).
ABB AO810V2 transmits the signals to the actuator through the output channel to drive the device to perform the corresponding actions.
ABB AO810V2 provides real-time feedback on the channel status to the controller to form a closed-loop control system.
Product Applications
ABB AO810V2 is used in chemical engineering and pharmaceuticals to control the temperature and pressure of reaction vessels, regulate the speed of agitators and the power of heaters, and ensure stable chemical reactions.
ABB AO810V2 can be used for turbine speed control, boiler water level control, or monitoring generator excitation current to maintain grid stability.
ABB AO810V2 can be used in oil and gas to regulate the opening of oil pipeline valves and compressor pressure to ensure the efficiency and safety of oil and gas transportation.
ABB AO810V2 can be used in mechanical manufacturing to control the feed rate of CNC machine tools and hydraulic system pressure, thereby improving processing accuracy.
ABB AO810V2 can regulate the fan speed and water valve opening of air conditioning units to achieve precise control of temperature and humidity.
Product Parameter
Here is ABB AO810V2 Analog Output Module detail.
|
Parameter Category |
Specific Parameters |
|
Number of output channels |
8 (independently configurable) |
|
Output signal types |
Current: 4-20mA, 0-20mA; Voltage: 0-10V |
|
Resolution |
16-bit (full range) |
|
Load capacity |
For current output: ≤500Ω (single power supply) 250-850Ω (dual power supply, external configuration required) |
|
Response time |
Typical value ≤10ms (from digital command to stable analog output) |
|
Power supply requirements |
Operating voltage: 24V DC (allowable fluctuation range: 19.2-28.8V DC) Power consumption: approximately 3W |
|
Operating environment |
Temperature: -20℃ to 60℃ (no condensation) Humidity: 5%-95% RH (non-condensing) |
|
Protection class |
IP20 (module itself) When installed in a control cabinet, the protection class is determined by the cabinet |
