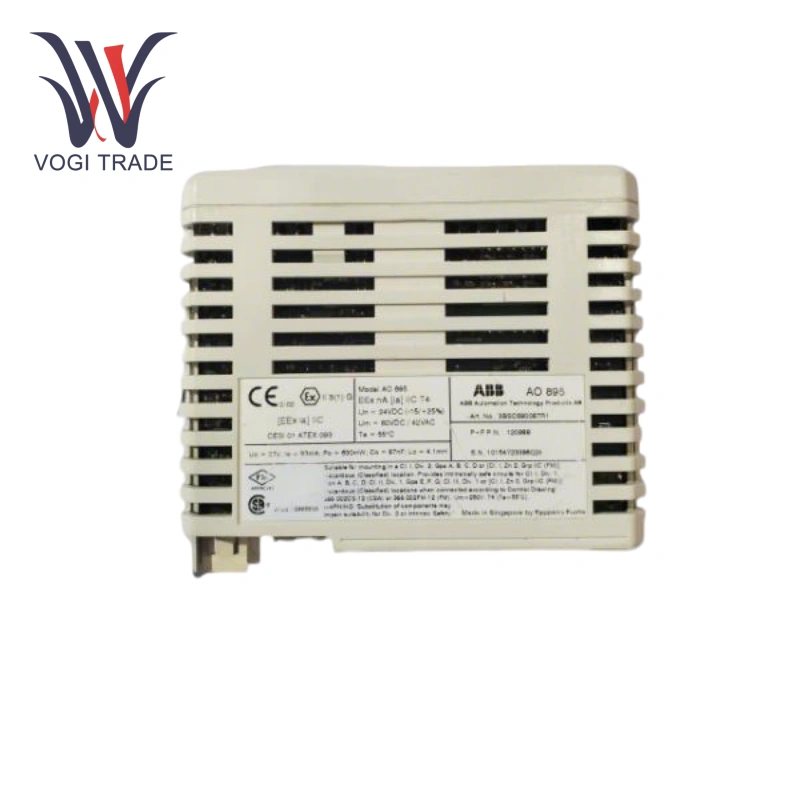

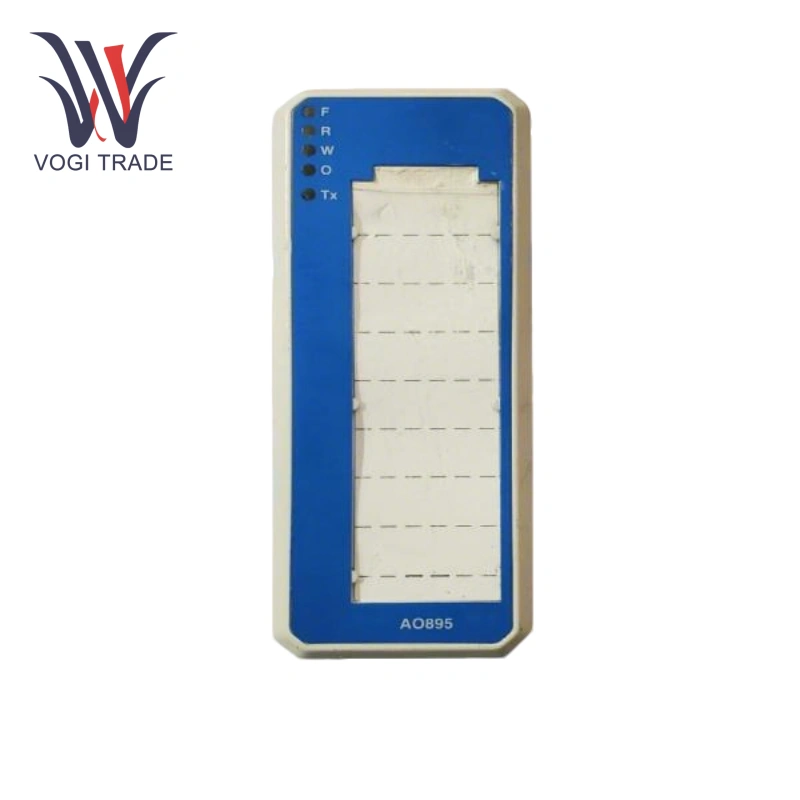

Brand: ABB Description: Analog Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen ABB AO895 3BSC690087R1 is a Analog Output Module suitable for high-reliability scenarios such as hazardous area monitoring in Zone 0/1 of refineries and collaborative control of automotive welding robots.
|
Manufacture |
ABB |
|
Model Number |
AO895 |
|
Ordering Number |
3BSC690087R1 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85371000 |
|
Dimension |
5*10*12cm |
|
Packing Dimension |
7*12*14cm |
|
Weight |
0.5kg |
Technical parameters
Number of channels: 8-channel analog input, supporting parallel processing, sampling rate ≤1ms/channel
Current signal: 4~20mA, accuracy ±0.05% FS.
Temperature signal: compatible with thermocouples and RTD, resolution 0.1°C
Safety certification: Intrinsically safe design, in line with ATEX/IECEx explosion-proof standards, suitable for Zone 0/1 hazardous areas
Main protocol: HART 7.3.
Extended protocol: PROFIBUS DP-V1, PROFINET IRT, Modbus RTU/TCP
Operating temperature: -40°C to +85°C.
Protection level: IP67
Power supply voltage: 18~32VDC.
Power consumption: ≤3.5W.
Isolation voltage: 1500V AC between channels, 2500V AC between channels and bus
Features
1. Intelligent communication and real-time performance
Dynamic data synchronization: Time-sensitive network technology is used to ensure that the clock synchronization error between multiple devices is less than 1μs, which is suitable for high-speed production line control
Protocol adaptation: Automatically identify PROFIBUS/PROFINET network topology, support online protocol switching, and reduce downtime
2. Industrial-grade reliability
Redundant architecture: ABB AO895 3BSC690087R1 is a dual CPU design, supports module-level hot backup, MTBF> 200,000 hours
Anti-interference ability: Passed IEC 61000-4-4 level 4 certification, can resist 10kV surge pulse and 50Hz~1GHz radio frequency interference
3. Safety and maintenance optimization
Intrinsically safe isolation: ABB AO895 3BSC690087R1 Built-in double isolation fence, limit the energy in the hazardous area to 30mA/30V, passed SIL2 functional safety certification
Predictive maintenance: Integrated temperature/voltage self-diagnosis sensor, early warning module abnormality, fault location accuracy reaches component level
4. Expansion and integration
Plug and play: supports quick installation of ABB CI840 redundant base, module replacement time <2 minutes
Cloud platform compatible: data can be directly transmitted to ABB Ability™ Industrial Cloud via OPC UA protocol to achieve remote monitoring and big data analysis
