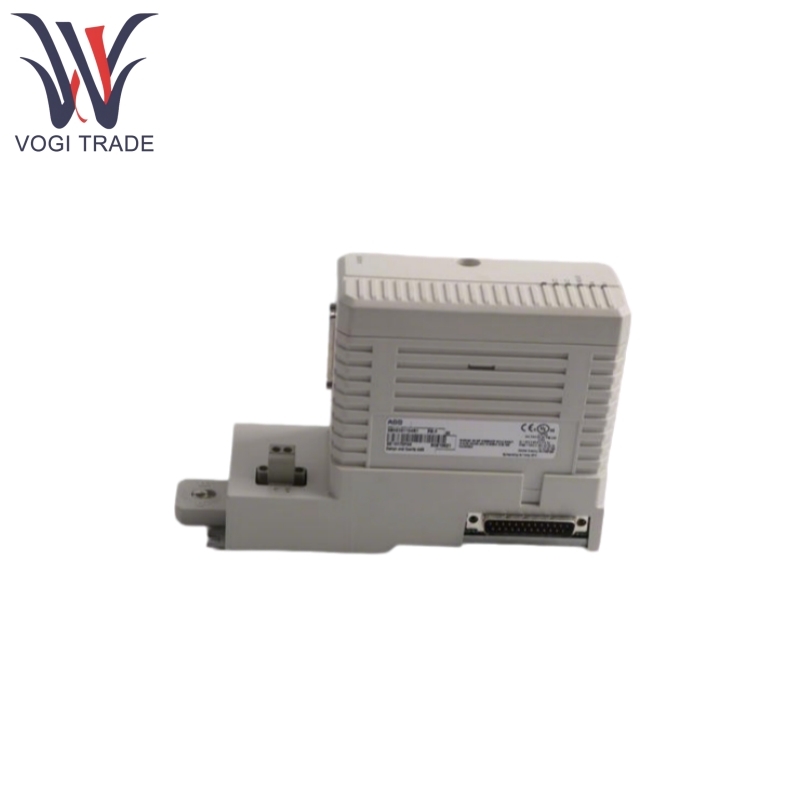

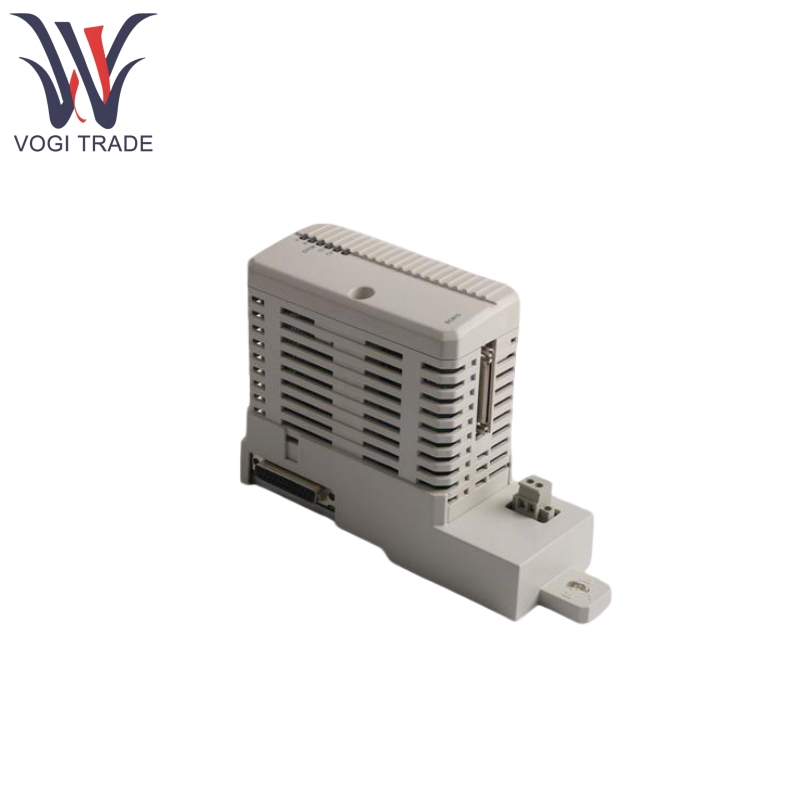

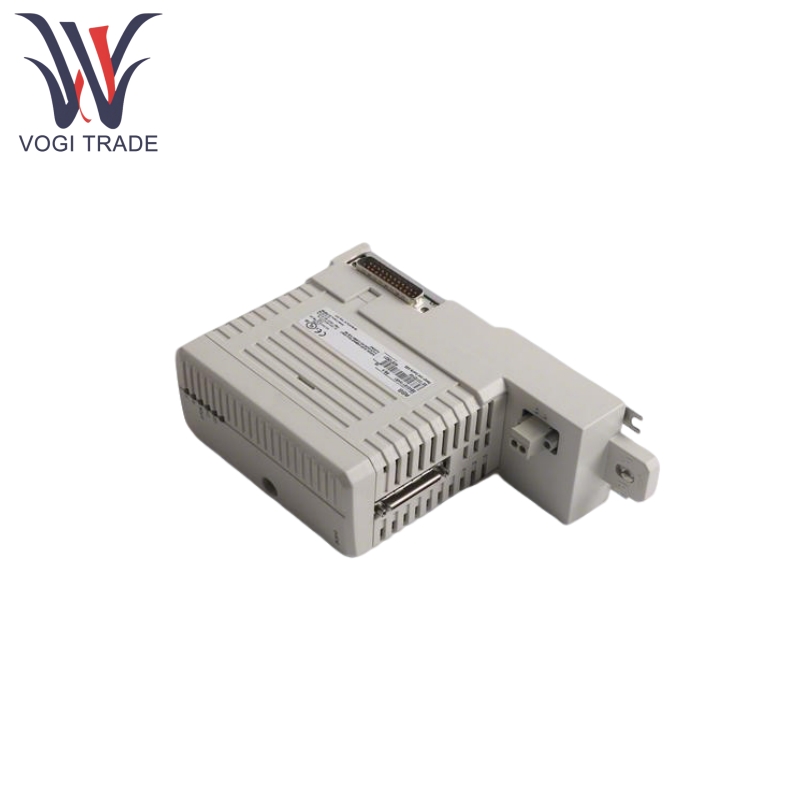

Brand: ABB Description: CEX-bus Interconnection Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB BC810K01 core functionality is to enable high-speed data transmission and system integration between devices via the CEX bus protocol. It can connect controllers, I/O modules, sensors, and other devices, and is widely used in control systems such as ABB 800xA and AC 800M.
|
Manufacture |
ABB |
|
Model Number |
BC810K01 |
|
Ordering Number |
3BSE031154R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9032900090 |
|
Dimension |
12*8*4cm |
|
Weight |
0.2kg |
Product Features
ABB BC810K01 is compatible with industrial communication standards including the CEX-Bus, PROFIBUS DP, and Modbus for the trouble-free interfacing with other products.
ABB BC810K01 support data transmission rates of up to 1 Mbps, meeting real-time control requirements such as robot collaboration and production line synchronization.
ABB BC810K01 enhances system availability through segmented CEX bus architecture, supporting online replacement of CPU boards without interrupting communication.
ABB BC810K01 enables module replacement while the system is running, reducing maintenance downtime and is suitable for continuous production scenarios.
ABB BC810K01 features built-in self-diagnostic functions, continuously monitoring power voltage and communication link status, and sending fault alarms via LED indicators and the backplane bus.
ABB BC810K01 is designed to detect cable breaking and to have EMC shielding, it will work under an electromagnetic environment.
ABB BC810K01 can connect up to 31 CEX-Bus nodes, expanding system I/O points and functionality. Its modular structure facilitates combination with accessories such as the base (TP857) and terminator (TB850), adapting to different installation requirements.
Product Using Principle
ABB BC810K01 receives digital commands from the controller and converts them into signals in CEX-Bus or PROFIBUS DP format.
ABB BC810K01 is able to send signals to distributed I/O modules or 3rd party devices via the CEX bus and receive field data from the controller.
In the event of a main link failure, ABB BC810K01 can automatically switch to a redundant communication path to ensure uninterrupted data transmission.
ABB BC810K01 can monitor the communication link status in real time and alert to faults via LED indicator lights and system alarms.
Product Application
Chemical Industry: ABB BC810K01 can connect reactor temperature sensors to the DCS system to achieve closed-loop control.
Power Industry: ABB BC810K01 is used to integrate turbine governors and generator protection systems to form a reliable control block.
Automotive Manufacturing: is able to synchronise real-time control signals (pistons control signals) from robots, production line, conveyors or other manufacturing equipment.
Machine Tool Industry: ABB BC810K01 can connect CNC machine tools with PLCs to achieve precise control of tool paths.
Safety and Monitoring Systems: ABB BC810K01 an send emergency shutdown (ESD) signals for faster reaction in hazardous situations.
Vibration Monitoring: ABB BC810K01 can work in conjunction with vibration sensors to anticipate failure of equipment and provide maintenance warnings.
Building Automation: ABB BC810K01 can link air-conditioning and illumination systems to achieve better energy efficiency and provide facilities for remote environmental control.
Renewable Energy: ABB BC810K01 supports the connection of the PV inverter and energy storage system, and realizes the centralized management of distributed energy.
