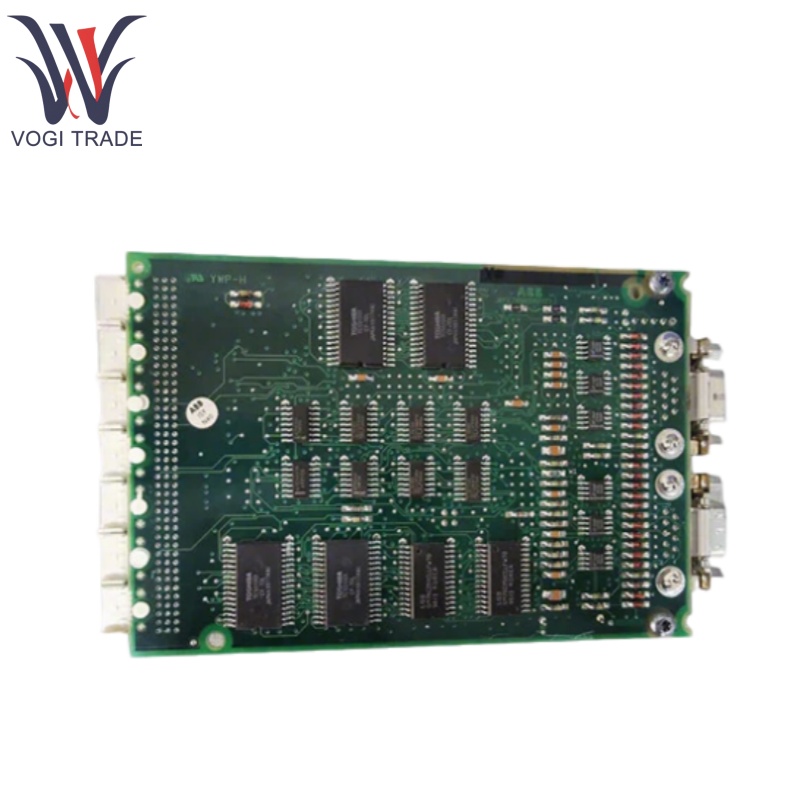

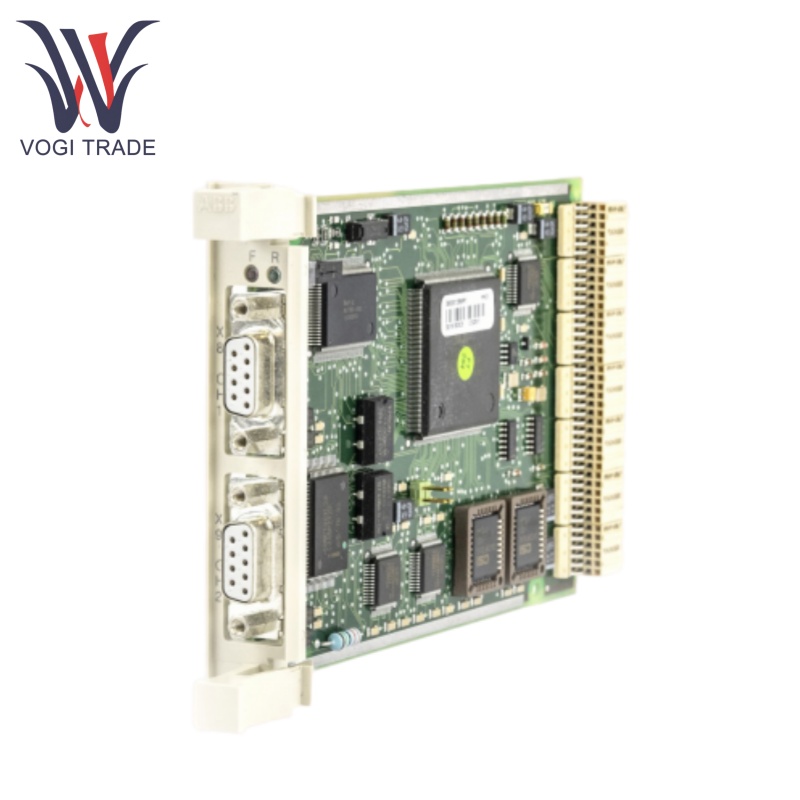

ABB CI520V1

Technical Parameter

Operating Voltage: 220 V

Output Frequency: 30 kHz

Operating Temperature: - 25 °C to + 60 °C

Relative Humidity: 5 - 95%

Communication protocol: Support Modbus RTU, Profibus DP, Ethernet and other communication protocols

Functional Features

Intelligent gateway: ABB CI520V1 allows ABB 200 series I/O systems to connect to ControlNet industrial networks, with both one-way and two-way data exchange between devices on the network. Real-time docking of sensor/actuator data with high-speed ControlNet networks is supported, enabling remote monitoring, decision-making and industrial process optimization of central control systems to ensure efficient coordination and stable operation of production systems.

Introduction of distributed control systems: ABB CI520V1 in a distributed control system, control functions are not centralized in a single controller but are distributed across multiple devices. This allows for increased system flexibility and reliability. This means that in the event that a single part of the system fails, the other parts can still continue to operate, reducing downtime. Inother words, the module is used to sync as many control devices together as possible in adistributed environment to make the overall system work seamlessly.

Flexible configuration: ABB CI520V1 can be flexibly configured according to terminal design requirements. Depending on the same need, it can be configured to connect with the type of device, the rate at which it will transmit data, the type of protocols to be used, etc. This means that it can be customized based on the type of industrial application, from simple manufacturing processes to complex industrial plants.

Redundancy&Hot swap: ABB CI520V1 adopts N+1 redundancy design. In Power plants & Chemical industry specialized tasks such as operation without interruption in critical conditions are required and this device will perfectly provide such mechanism to you by switching to backup unit in milliseconds, and this is where it shines. It is also conducive to power-on hot-swappable operation and online replacement of faulty modules, realizing maintenance at the minute level, reducing the risk of production downtime, and ensuring the continuous and stable operation of industrial systems.

Health and status monitoring: ABB CI520V1 performs diagnostic functions that can monitor its health and status continuously. It can detect any faults or failures in the communication interface and report them back to the control system, which can notify operators before potential problems lead to system failures. For example, if there is an issue in data transfer, the diagnostic system can diagnose the problem along with identifying location, where the problem is occurring, which makes the data transfer troubleshooting easier.

Application Areas

Industrial automation: ABB CI520V1 helps connect different devices and systems. It is able to connect sensors, actuators, controllers and other components so that they can communicate with each other. An example of its use in a manufacturing plant is to connect a sensor that senses the position of a robotic arm to a controller that sends a command to move that robotic arm. This connection seamlessly automates the manufacturing process.

Real-time monitoring and control: Real-time monitoring and control of process parameters using the ABB CI520V1. The wire can also send data from sensors that measure temperature, pressure, flow, and liquid level to the control system. This information is used by the control system to modify process variables to maintain the process in its desired operating range. In a chemical reactor, for instance, the module could send temperature readings from one of the reactor's temperature sensors to a controller that in turn can control the heating or cooling system to maintain an optimal reaction temperature.

Field data collection and transmission: ABB CI520V1 can be collected from field sensor data, instruments, etc., and sent to the upper computer for further processing. For example, in a food plant production, it can collect product weight, volume and quality data for quality control, production optimization, etc., timely knowledge of production abnormalities, and give the corresponding improvement suggestions.
