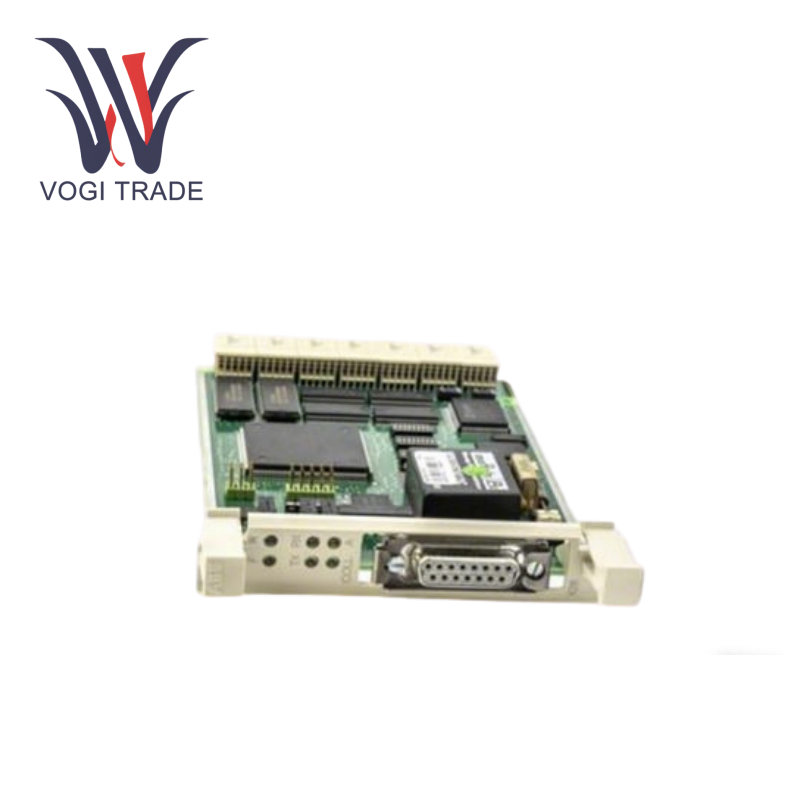

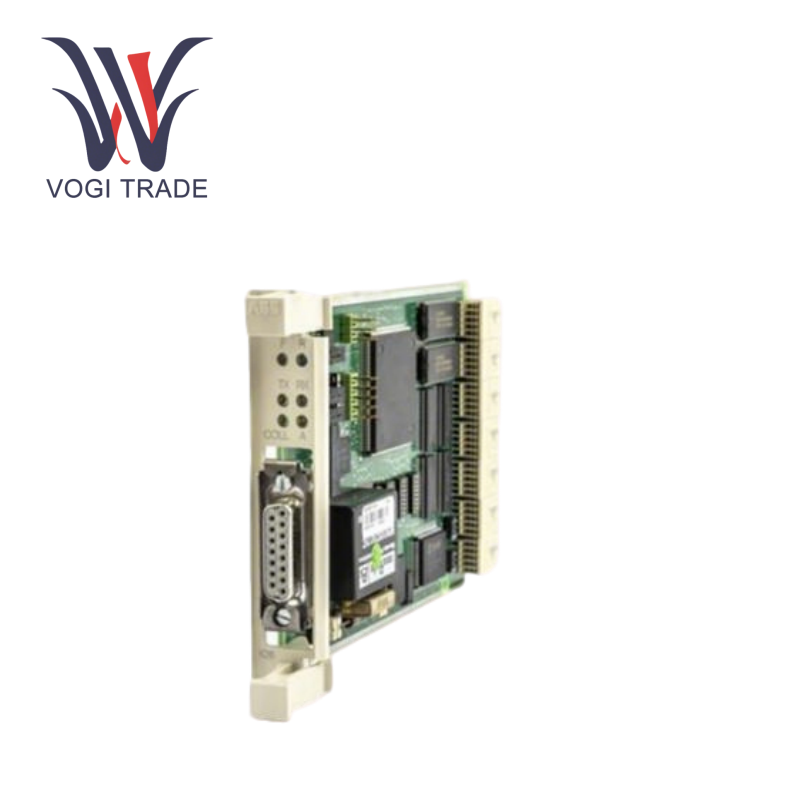

ABB CI545V01 3BUP001191R1

Technical parameters

Core hardware: 32-bit ARM Cortex-A9 dual-core processor, 128MB memory, supports up to 512 digital I/O points and 256 analog I/O points

Communication interface: Ethernet (including redundant dual RJ45 ports), serial interface, CAN bus

Environmental adaptability: working temperature -25℃ to +70℃, protection level IP20, power supply voltage DC 24V

Expansion capability: support baseboard expansion, flexible addition of I/O points and communication modules

Functional features

1. Multi-protocol communication integration: ABB CI545V01 3BUP001191R1 is compatible with AC400 architecture, Modbus TCP/IP and Profibus-DP protocols, seamlessly connected to ABB AC800M controller and third-party systems, meeting cross-platform data interaction requirements

2. Redundant network guarantee: The module adopts dual Ethernet port redundant design and supports hot standby switching function to ensure zero-interruption communication of ABB CI545V01 3BUP001191R1 in power system or continuous production line.

3.High reliability architecture:ABB CI545V01 3BUP001191R1 has passed strict industrial certification (such as IEC 62443), built-in self-test program and LED status indicator, which can monitor the module operation status in real time and adapt to harsh environments such as dust and vibration.

4. Flexible expansion and programming: Through CoDeSys programming software,ABB  CI545V01 3BUP001191R1 can configure logic control, data acquisition and remote communication functions, and supports SPA-ZC gateway to expand IEC 61850 and other advanced protocols.

Application scenarios

1. Intelligent manufacturing: PLC control and equipment collaboration of automobile production lines

2. Energy system: DCS redundant communication network construction of thermal power plants

3. Infrastructure: Urban rail transit power monitoring and equipment layer data interaction

4. Industrial Internet of Things: Factory intelligent distribution system data acquisition and cloud integration
