Brand: ABB Description: Dual RS232-C Interface Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen ABB CI853K01 3BSE018103R1 is mainly used for serial communication connections between devices in industrial automation systems and is a key component for data transmission in ABB's industrial control system.
|
Manufacture |
ABB |
|
Model Number |
CI853K01 |
|
Ordering Number |
3BSE018103R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
20*14*6cm |
|
Weight |
0.6kg |
Product Features
ABB CI853K01 3BSE018103R1 is equipped with dual RS232-C interfaces, supporting serial communication based on the RS232-C standard, enabling simultaneous connection of two external devices for parallel data interaction between multiple devices.

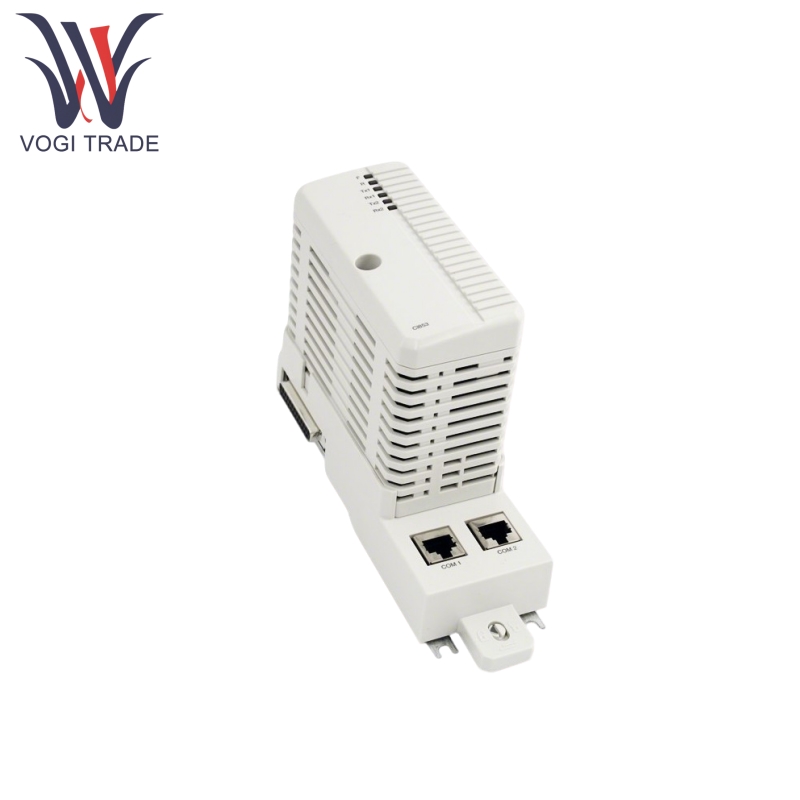

ABB CI853K01 3BSE018103R1 includes an independent communication interface unit (CI853) and a dedicated base (TP853). The base provides mechanical fixation and electrical connection support for the module, ensuring installation stability and reliable signal transmission.
Product Using Principle
CI853K01 3BSE018103R1 connects to the upper-level controller via the TP853 base, obtaining power supply and accessing the control network.
CI853K01 3BSE018103R1 two RS232-C interfaces connect to external devices such as sensors, actuators, operator workstations, or other PLCs.
CI853K01 3BSE018103R1 acts as a communication intermediary, converting the controller's commands or data into a signal format supported by the RS232-C protocol for transmission to external devices, while receiving feedback data from external devices and transmitting it back to the controller, enabling bidirectional data exchange and establishing a serial communication link for industrial control.
Product Application
ABB CI853K01 can be used in control architectures such as ABB AC 800M controllers, 800xA systems, and Compact Product Suite as a serial communication bridge to connect remote I/O devices, human-machine interfaces (HMIs), third-party serial devices, and more.
ABB CI853K01 is suitable for industrial applications that require stable serial communication, such as power, chemical, manufacturing, and water treatment, and is particularly suitable for complex control environments with high requirements for device compatibility and communication reliability.
Product Compatible Equipment
Core Compatible Controller:
ABB CI853K01 is primarily designed to be used with ABB's AC 800M series controllers (including versions 4.1, 5.0, 5.1, etc.) and serves as the standard communication module within this controller system.
System Compatibility:
ABB CI853K01 is compatible with ABB's 800xA system (including version 6.0) and relevant control components within the Compact Product Suite, enabling seamless integration into the communication networks of these systems.
External Devices:
ABB CI853K01 supports all devices compliant with the RS232-C serial communication standard, such as serial port sensors, serial port printers, legacy PLCs, data acquisition terminals, etc., enabling cross-device data exchange via standard protocols.
