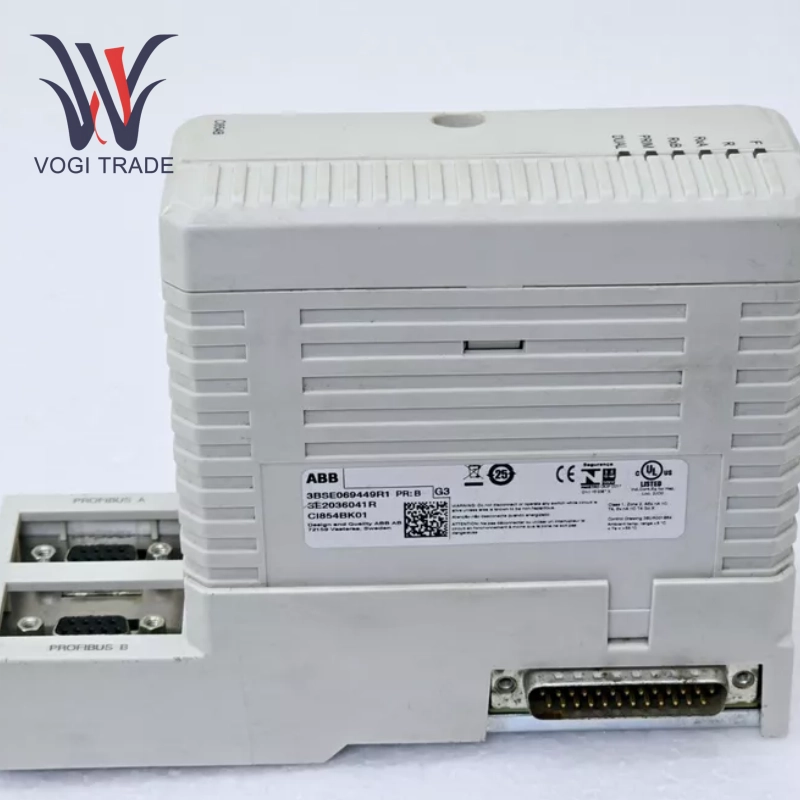

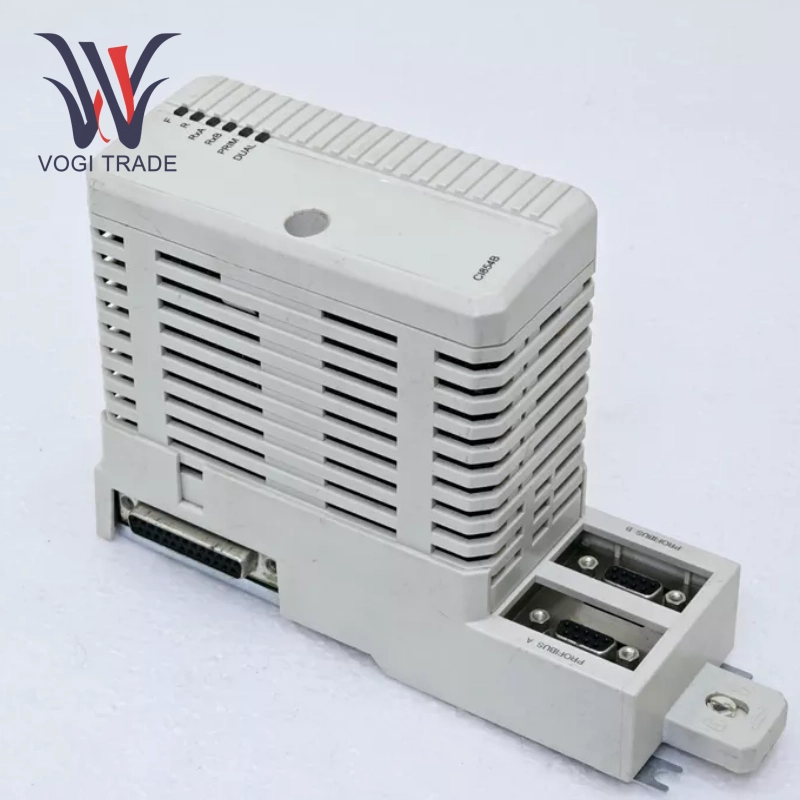

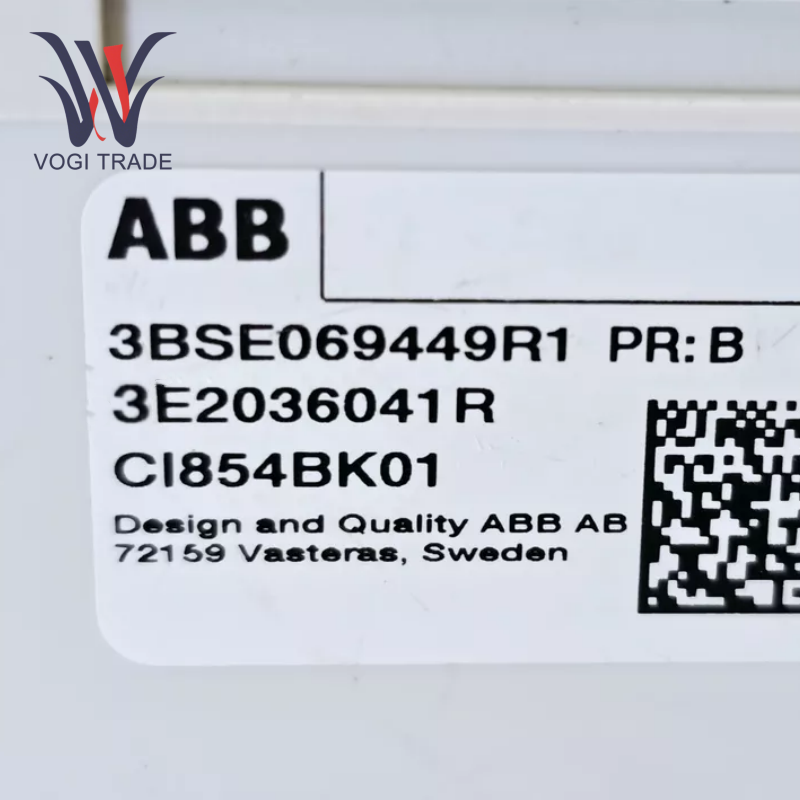

Brand: ABB Description: Processor Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen As a PROFIBUS DP/V1 communication interface module, ABB CI854BK01 3BSE069449R1 has become a core component of complex automation systems with its dual-port redundancy, master station redundancy compatibility and industrial-grade communication performance.
|
Manufacture |
ABB |
|
Model Number |
CI854BK01 |
|
Ordering Number |
3BSE069449R1 |
|
Catalog |
AC 800M |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
13*20*6CM |
|
Packing Dimension |
15*22*8CM |
|
Weight |
0.8kg |
Technical Parameters
Transmission speed: 9.6 - 12 000 kbit/s
Max units on CEX bus: 12
Connector: DB female (9-pin )
24 V consumption typ.: 190Ma
Temperature range: +5 to +55 °C (+41 to +131 °F) operating, -40 to +70 °C (-40 to +158 °F) storage.
Interface type: PROFIBUS-DP/V1, supports dual-port redundant design, and the maximum communication rate is 12Mbit/s.
Communication protocol: Compatible with PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus systems.
Redundancy support: ABB CI854BK01 3BSE069449R1 supports line redundancy (dual PROFIBUS ports) and master redundancy (requires two CI854BK01 modules).
Installation method: DIN rail installation, compatible with ABB S800 I/O system and other third-party I/O devices.
Electrical interface: Provides two PROFIBUS ports, and the bus end matching needs to be completed through a connector with terminal resistors.
Controller compatibility: Seamless integration with the ABB AC 800M controller family, supports CPU redundancy and CEXbus redundancy (BC810 module).
Expansion capability: PROFIBUS PA devices can be connected through PROFIBUS link devices (such as LD 800P).
Installation and Usage Instructions
Hardware Installation: Fix the module on the DIN rail in the control cabinet to ensure good ventilation and heat dissipation. Connect the PROFIBUS bus cable to the two ports and install the connector with terminal resistor.
Software Configuration: Use ABB Control Builder or similar tools to configure the master parameters, redundant logic and communication protocol. Set the PROFIBUS DP address and bus parameters to adapt to the requirements of the field equipment.
Redundant Configuration: Master redundancy requires that the firmware versions of the two modules are consistent and the synchronization function is enabled.
Maintenance Recommendation: Check the bus terminal resistance status regularly to avoid signal reflection interference.
