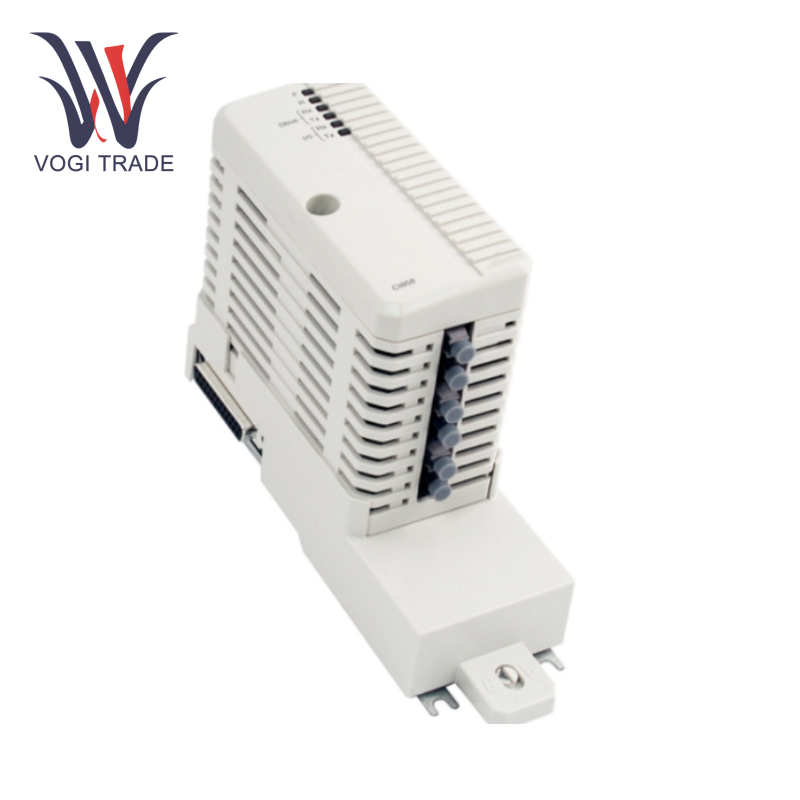

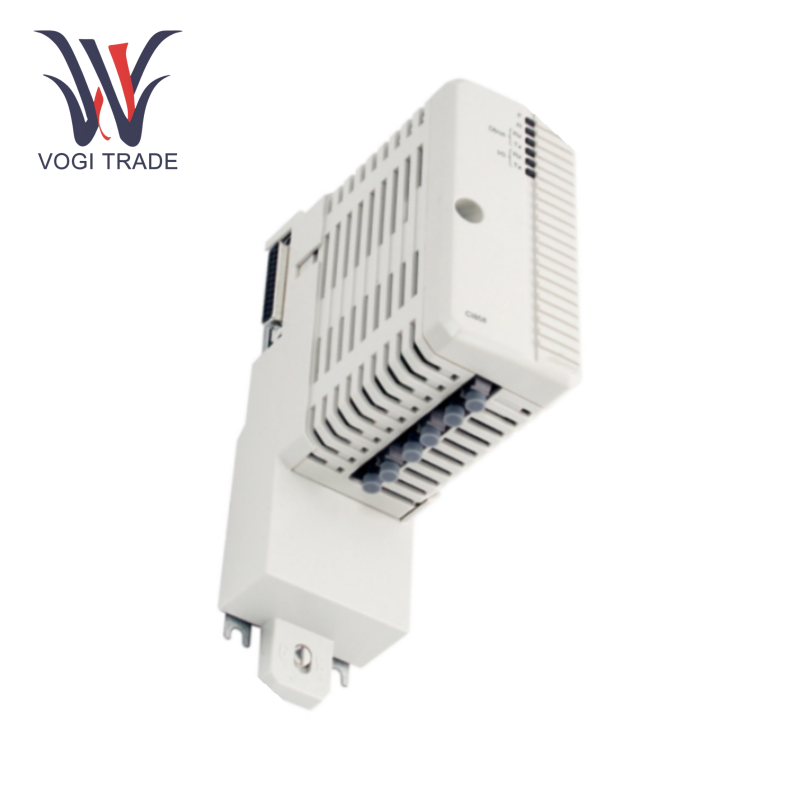

Brand: ABB Description: DriveBus Interface Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB CI858K01 3BSE018135R1 is a communication interface module designed for ABB AC 800M series controllers. It is mainly used to achieve high-speed data communication and drive control between industrial equipment and control systems.
|
Manufacture |
ABB |
|
Model Number |
CI858K01 |
|
Ordering Number |
3BSE018135R1 |
|
Catalog |
AC 800M |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
13*20*6CM |
|
Packing Dimension |
15*22*8CM |
|
Weight |
0.8kg |
Technical Parameters
Power supply: 24 V DC, power consumption 4 W.
Working environment: -25℃ ~ +60℃ (working temperature), humidity 5%~95% (non-condensing).
Protocol support: DriveBus, PROFIBUS DP, Modbus RTU, etc.
Transmission rate: up to 12 Mbps (in PROFIBUS DP mode), real-time data exchange is supported in DriveBus mode.
Expansion capability: A single ABB CI858K01 supports connecting up to 24 ABB drives, and a star topology network can be built through the branch unit (NDBU).
Compatibility: Seamless integration with ABB AC 800M controllers, S800 I/O modules and ABB Drives series drives (such as rolling mill drives, paper machine drives), supports hot-swap function to ensure continuous operation of the system.
Core Functions
High-speed data communication: Realize real-time data exchange between controller and drive, including status monitoring, parameter configuration and fault diagnosis, optimize industrial process synchronization through DriveBus protocol, and is suitable for high-precision control of rolling mills, printing presses and other equipment.
Distributed control architecture: ABB CI858K01 supports distributed deployment of multiple devices, reduces wiring complexity, and improves system reliability.
Industrial-grade durability: Adopts aluminum alloy frame and IP66 protection design to adapt to harsh industrial environments such as high temperature and vibration.
Typical Application Scenarios
Rolling mills and paper machines: Realize synchronous control of multiple drives to ensure accurate matching of speed and tension of production lines.
Packaging and printing equipment: Integrate sensors and actuators through Modbus RTU protocol to optimize automation processes.
Power plants and substations: ABB CI858K01 can connect AC 800M controllers and drive equipment to achieve remote monitoring and protection.
Chemical and petrochemical: Integrate reactors, pump stations and other equipment through PROFIBUS DP protocol to improve production safety.
