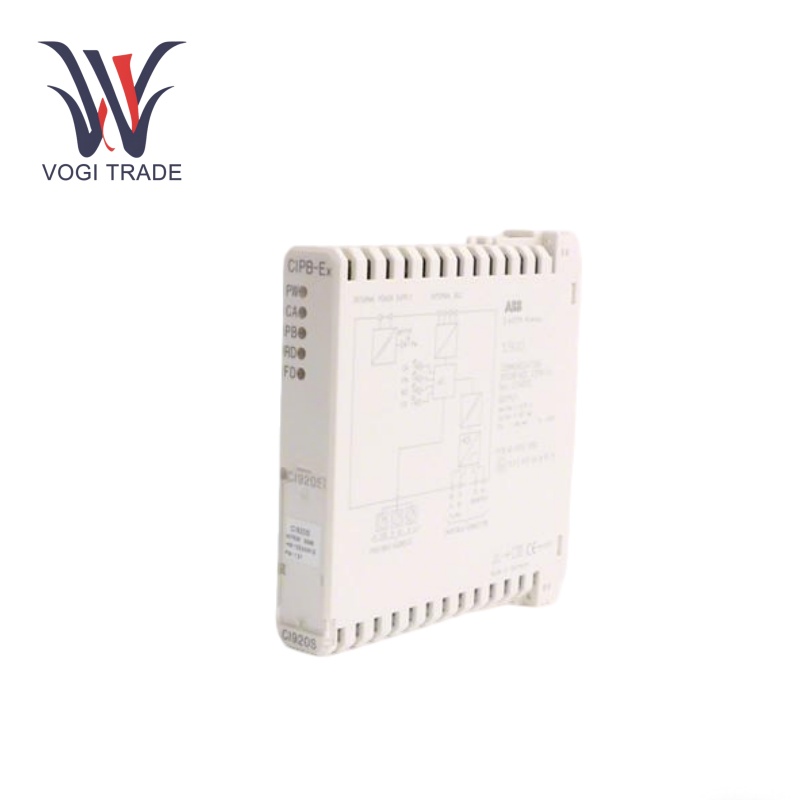

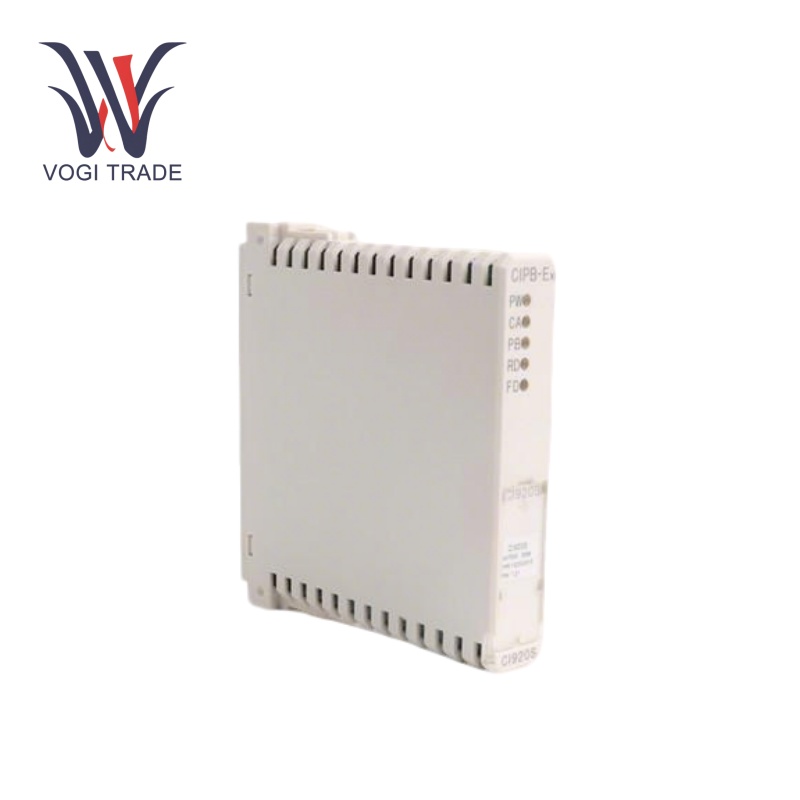

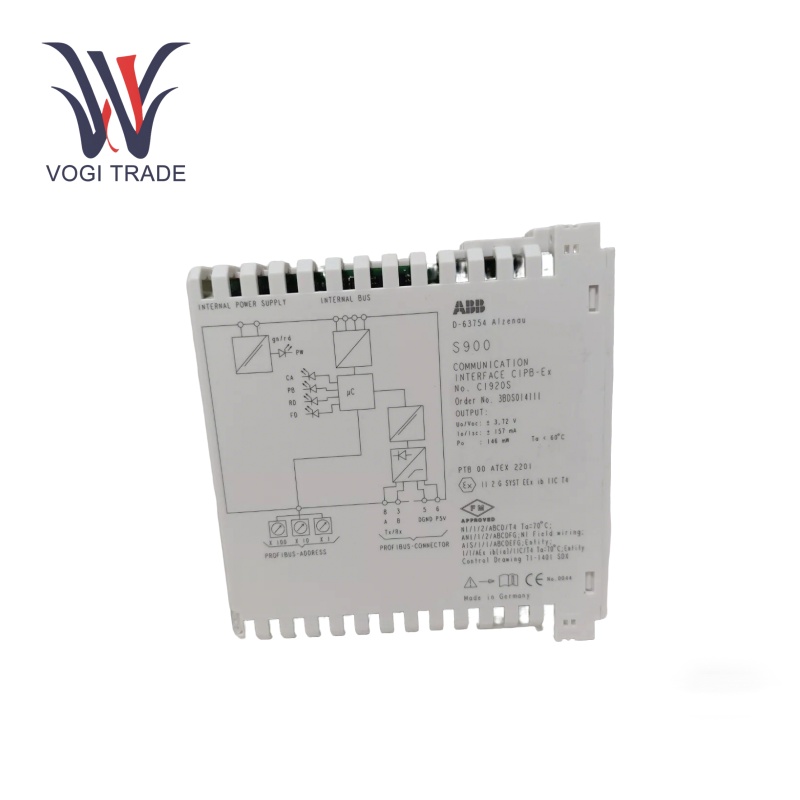

Brand: ABB Description: Communication Interface for Zone 1 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: ShenZhen ABB CI920S is a communication interface module. It supports seamless communication between field devices and control systems. It facilitates data acquisition and transmission and is ideal for process control, energy management and automation applications in various industries.
|
Manufacture |
ABB |
|
Model Number |
CI920S |
|
Ordering Number |
3BDS014111 |
|
Catalog |
S900 |
|
Country Of Origin |
Sweden |
|
HS CODE |
85389099 |
|
Dimension |
11cm*10.5cm*2cm |
|
Packing Dimension |
13cm*13cm*4cm |
|
Weight |
0.12kg |
Operating Parameters
Power Supply:24V DC power supply
Humidity:93% ± 3% at 40 °C.
Operating Temperature:-25°C to +70°C
Communication Protocols:Profibus DP,Modbus RTU,DeviceNet
Signal Processing: The module may facilitate both digital and analog signal processing.
Product Features
Communication Interface:The ABB CI920S is an important communication interface designed for use in Zone 1 hazardous area applications. The Industrial Communication and Networking protocol which allows different devices in the industrial network to be connected and data and control signals to be transferred.
Redundancy Features:both in power delivery and communication. If power fails or communications are lost on the primary path, the redundant systems can take over instantly. This allows for the uninterrupted functioning of the industrial processes, reducing any downtime and minimizing probable losses.
Hot Configuration and Hot Swap: Support hot or live configuration without stopping operation, support for hot swap. This becomes extremely important for the industry where a system failure can cost a fortune. Hot swap functionality also allows for replacement of components while the system is still running.
Diagnostic Capabilities:ABB CI920S Has expanded diagnostic capabilities. It can monitor its performance and the state of connected devices in real-time. It can identify potential problems through these diagnostics, including communication errors, power anomalies, or malfunctioning components. This speed enables proactive maintenance, minimizing the risk of faults, and increasing the system reliability.
Data Acquisition and Transmission: The ABB CI920S module likely acquires data from sensors and transmits it to the central control system.
Installation
Mounting: Generally mounted on a DIN rail, easy to be applied to the industrial control panel.
Environmental Compatibility: These modules are designed for extreme situations found in industrial settings and are probably certified to operate in extreme temperature ranges and built to withstand vibration and EMI.
Communication Interfaces:ABB CI920S might offer different fieldbus or industrial Ethernet ports, making integration with other components easier.
Wiring: Once the power cables are prepared, they will be connected to the system according to voltage specifications, and wired in such a way that will not pose an electrical hazard. You need to use the right communication cables realize the communication connections. Ensure that all connections are tight to prevent signal loss or unreliable communication.
Application range
Industrial Automation: The ABB CI920S is used to integrate field devices into a centralized control system, improving the automation and monitoring of manufacturing processes.
Process Control: Used in chemical, oil and gas, food and beverage, and pharmaceutical industry for real-time data collection to optimize the process.
Energy and Utilities: Implementation in energy management systems or utility monitoring, reducing resource use and allowing planner to have better decisions based on accurate data.
Troubleshooting
Communication Errors: In case of communication errors, verify the physical connections of the communication cables. Signal disturbances can also be caused by loose or damaged cables. If the issue continues, you may reduce interference from nearby electrical devices. Interference reduce, shielded cable may be required.
Power Related Problems: Specify the power supply, if the device does not make it in operation, check the power supply connections, and voltage levels. You may need to replace a faulty power supply unit. Install power conditioners or voltage stabilizers as necessary to filter or stabilize power supply in case of power fluctuations or over $ voltage situations.
Component Malfunctions:The control unit may be integrated into a building, and the ABB CI920S can be used to test and identify any components that are malfunctioning. You will never be able to test hot swap functionalities of several modules, if one specific module is detected as defective and the device has such hot swap capabilities, it will be replaced as part of the proper replacement processes on the fly in a running system.
