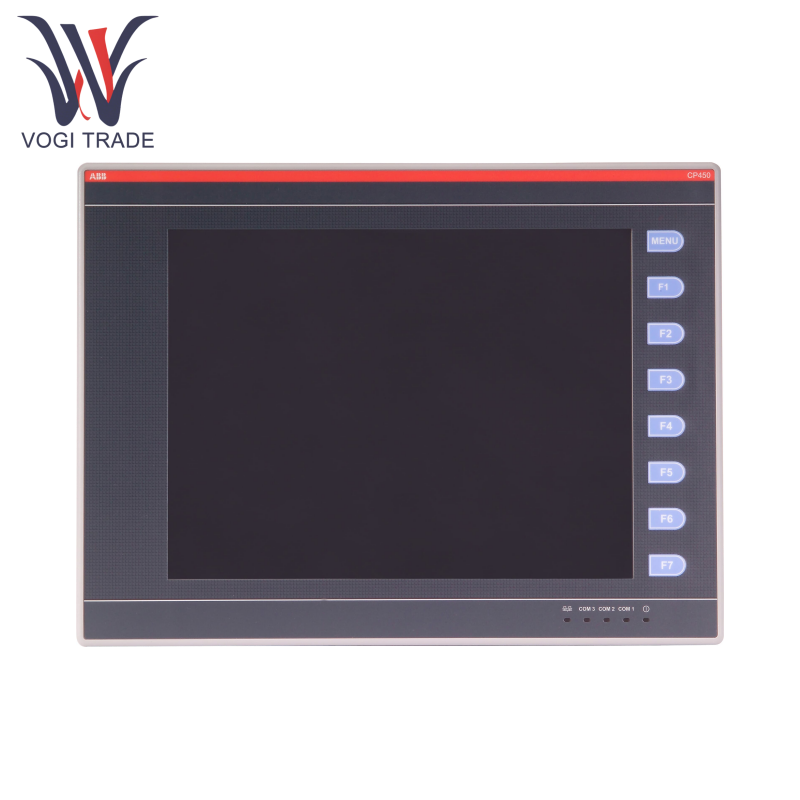

Brand: ABB Description: Control Panel Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB CP450T 1SBP260188R1001 is an industrial-grade human-machine interface (HMI) control display panel, which is widely used in production line monitoring, mechanical processing, energy management, building automation and other fields. It can provide an intuitive operation interface and efficient data interaction capabilities.
|
Manufacture |
ABB |
|
Model Number |
CP450T |
|
Ordering Number |
1SBP260188R1001 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
35*25*8cm |
|
Packing Dimension |
37*27*10cm |
|
Weight |
2kg |
Technical parameters
Screen configuration: 10.4-inch TFT touch screen.
Resolution: 640×480 pixels.
Communication interface: integrated Ethernet (TCP/IP), RS232/RS485 serial port, USB 2.0 interface.
Power requirement: DC 24V.
Power consumption: ≤30VA.
Protection level: IP65/NEMA4.
Operating temperature: 0°C to +50°C.
Storage capacity: user data memory 512 KB, program memory 8 MB ROM.
Principle of use
ABB CP450T 1SBP260188R1001 is designed based on resistive touch screen technology. It detects the operating position through the contact points of two transparent conductive layers, and then converts it into coordinate signals through the controller and transmits it to the control system.
Hardware architecture: built-in industrial-grade processor, supports multi-tasking, and combines Ethernet and serial ports to realize real-time data interaction with PLC/DCS.
Software support: ABB CP450T 1SBP260188R1001 is equipped with CP400Soft programming software, which provides graphical interface design tools, supports macro instructions, ladder diagram programming and multi-language menus (English, French, etc.).
Functional features
Alarm management: ABB CP450T 1SBP260188R1001 monitors the equipment status in real time, triggers sound and light alarms and records event logs.
Recipe management: Store multiple sets of process parameters and quickly switch production modes.
Trend chart display: Dynamically display historical data curves to assist fault diagnosis and optimization.
