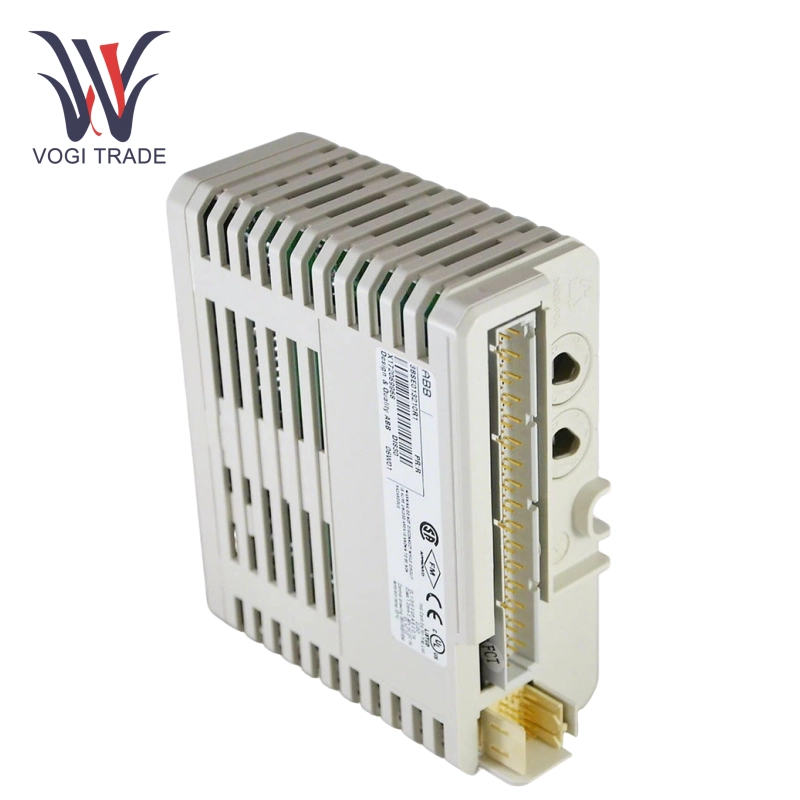

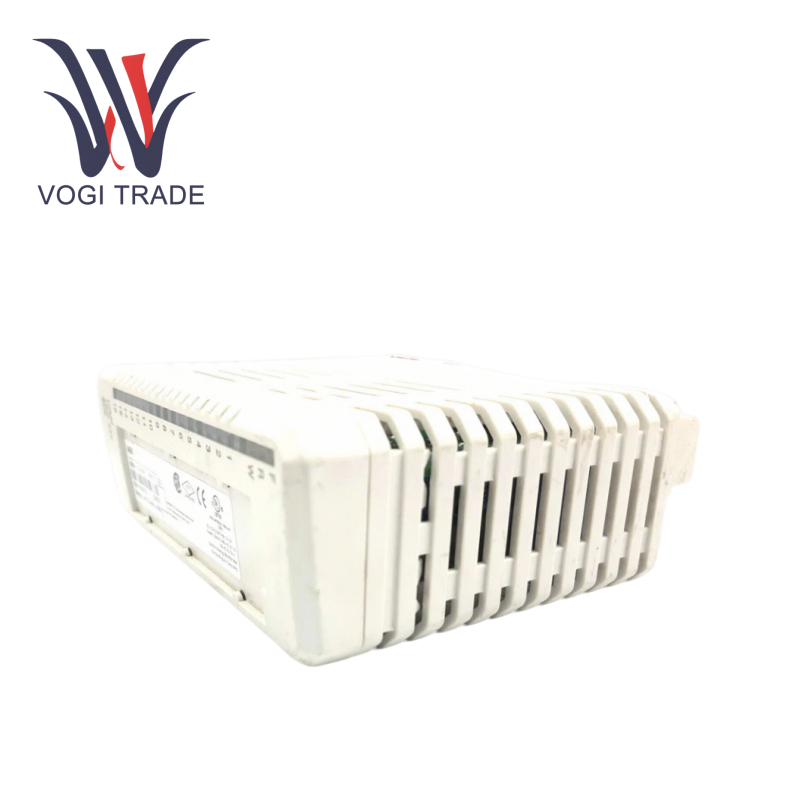

ABB DI830 3BSE013210R1

Technical parameters

Input channels: 16 channels, 24V DC input

SOE resolution: ≤1ms

Response time: ≤6ms

Electrical isolation: independent isolation between channels, anti-ground fault and noise interference

Working voltage: 24V DC

Working temperature: -20°C to +60°C

Power consumption: ≤5W

Features

1. Millisecond event capture capability

ABB DI830 3BSE013210R1 integrates 1ms high-precision SOE function, which can record device status jump events (such as switch action) in real time, provide timestamp-level data support for fault diagnosis, and significantly improve the timeliness and accuracy of system event analysis

2. Industrial-grade anti-interference design

The module adopts channel-independent isolation technology and EMC protection mechanism to ensure that ABB DI830 3BSE013210R1 can operate stably in strong electromagnetic interference environments (such as inverter-intensive areas and high-voltage substations), effectively suppressing common-mode noise and transient voltage shocks

3. Redundant compatibility and rapid deployment

ABB DI830 3BSE013210R1 supports redundant configuration through TB840/TB840A terminal units. Combined with modular plug-in design, it can be expanded or replaced without stopping the machine, maximizing the continuity of key processes (such as petrochemical interlocking systems)

Typical application scenarios

1. Power system monitoring: real-time acquisition of substation circuit breaker status and event sequence recording

2. Petrochemical safety interlocking: fault trigger protection and action timing analysis of reactor pressure valves

3. Intelligent manufacturing: synchronous acquisition of sensor signals for high-speed production lines (such as robot arm positioning)
