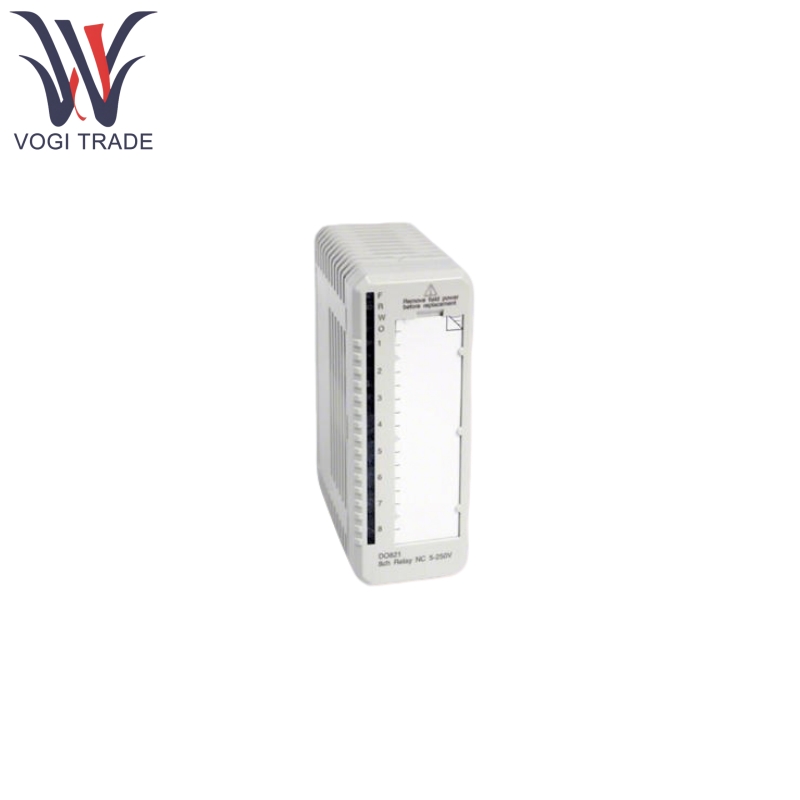

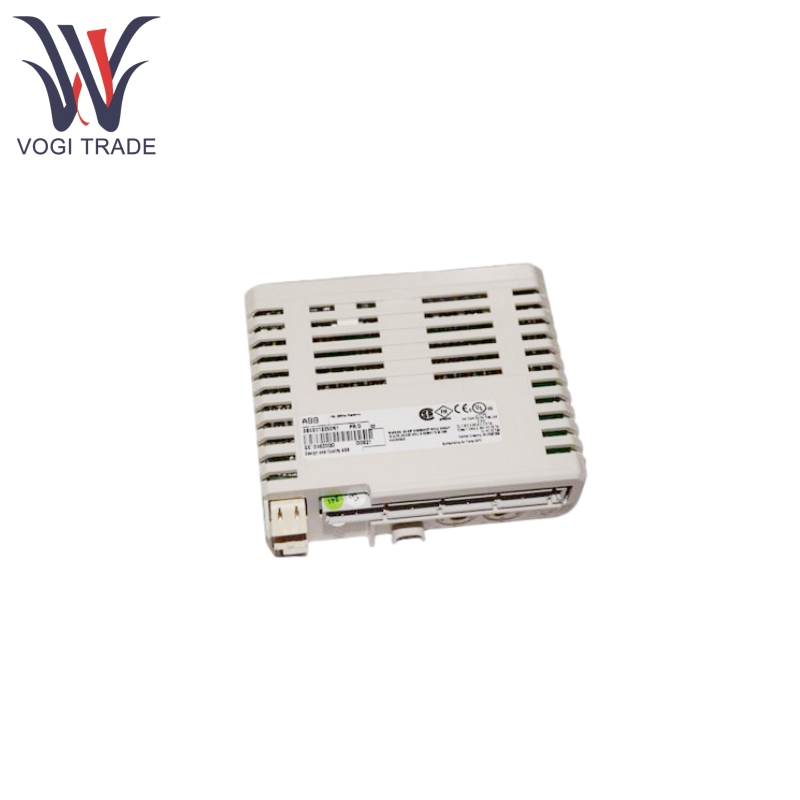

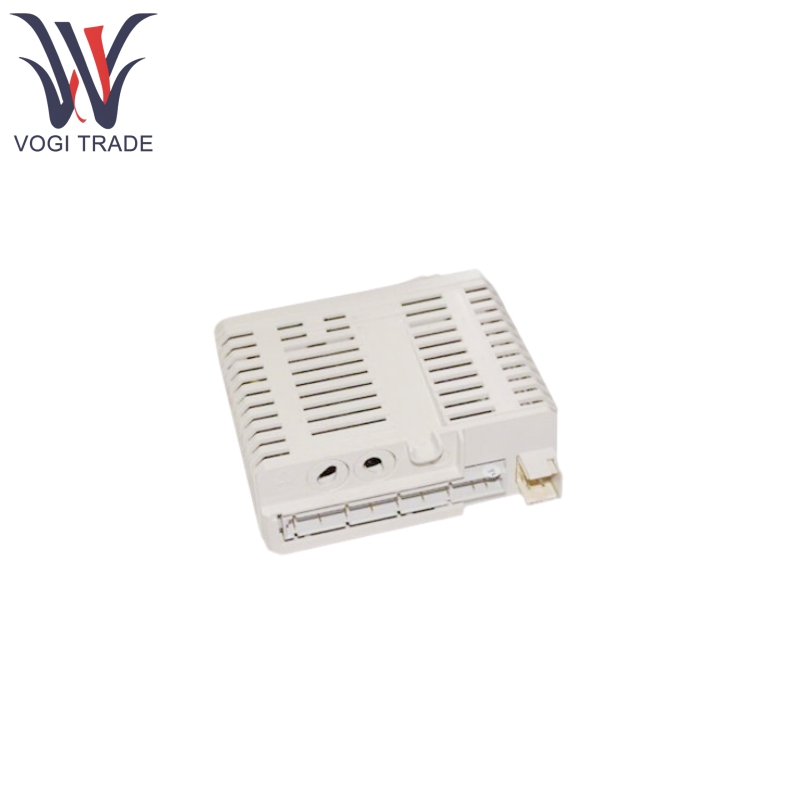

Brand: ABB Description: Digital Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen ABB DO821 3BSE013250R1 is an 8-channel 230V AC/DC relay (normally closed, NC) output module suitable for S800 I/O. Its maximum output voltage is 250V AC, and its maximum continuous output current is 3A. All outputs are individually isolated, and each output channel consists of an optical isolation barrier, output status indicator LED, relay driver, relay, and EMC protection components.
|
Manufacture |
ABB |
|
Model Number |
DO821 |
|
Ordering Number |
3BSE013250R1 |
|
Catalog |
S800 I/O |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
12*10*4cm |
|
Weight |
0.2kg |
Product Features
ABB DO821 3BSE013250R1 features 8 230V AC/DC relay normally closed (NC) output channels, with all 8 channels being isolated.
ABB DO821 3BSE013250R1 includes output status indicators to display the output status.
Equipped with OSP functionality, ABB DO821 can set the output to a predefined state when an error is detected.
ABB DO821 3BSE013250R1 has front-panel LED indicators, including F (Fault), R (Running), W (Warning), O (SP), and status indicators for channels 1-8.
ABB DO821 3BSE013250R1 has a 24/12V relay power converter monitoring function, providing monitoring status indicators for module errors, module warnings, channel errors, and more.
Product Using Principle
ABB DO821 3BSE013250R1 Digital Output Module receives control signals via ModuleBus. Each output channel is electrically isolated from other parts through optical isolation barriers to ensure system safety. The relay driver activates the relay based on the control signals, thereby controlling the on/off status of external devices.
Output status indicator LEDs display the real-time operational status of each channel. When an error is detected, the OSP function sets the output to a predetermined state, and the warning LED illuminates. The error signal can be read via ModuleBus, and users can enable or disable the relay power voltage monitoring function through parameters.
Product Parameter
The following is ABB DO821 3BSE013250R1 Digital Output Module detail.
Signal specifications: 230V AC/DC (5-250V AC/DC), 3A
Isolation: Individually isolated between channels and from the circuit common
Current limiting: Can be current limited by the MTU
Maximum field cable length: 600 meters (656 yards)
Rated insulation voltage: 250V
Dielectric test voltage: 2000V AC
Power dissipation: Typ. 2.9W
Current consumption:
+5V Modulebus: 60mA
+24V Modulebus: 140mA
+24V external: 0
Environment requirement:
Operating temperature: 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Storage temperature: -40 to +70 °C (-40 to +158 °F)
Pollution degree: Degree 2, IEC 60664-1
Corrosion protection: ISA-S71.04: G3
Relative humidity: 5 to 95 %, non-condensing
Max ambient temperature: 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
Protection class: IP20 according to IEC 60529
Mechanical operating conditions: IEC/EN 61131-2
EMC: EN 61000-6-4, EN 61000-6-2
Overvoltage categories: IEC/EN 60664-1, EN 50178
Equipment class: Class I according to IEC 61140, (earth protected)
