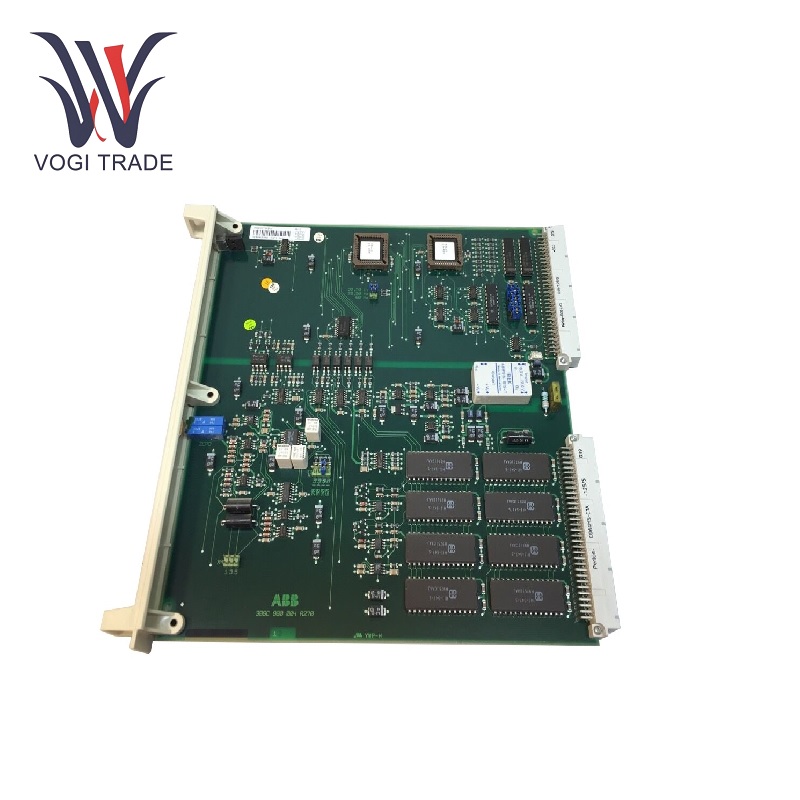

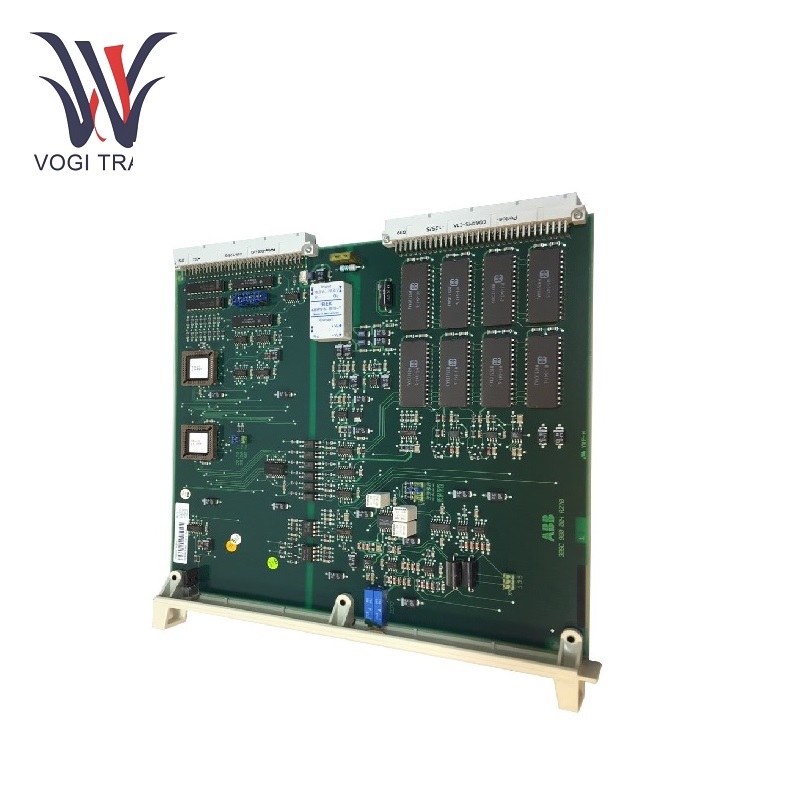

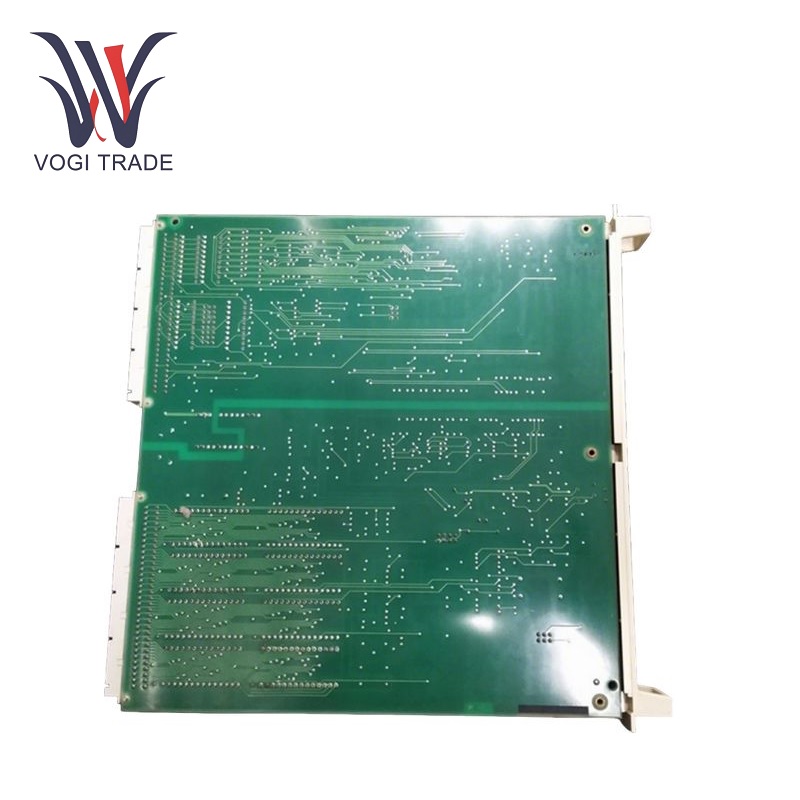

ABB DSAI146

Technical parameters

Input/output configuration: ABB DSAI146 output. It usually has 8 digital inputs for reading binary signals from sensors or other external devices, and 8 digital outputs for sending control signals to actuators or other components.

Rated voltage: ABB DSAI146 has a defined voltage range over which digital inputs and outputs can operate, usually within the range 10V - 30V DC to ensure that the signal is detected and transmitted in the circuit. Analog inputs are usually set to receive voltage signals within -10V to +10V; analog outputs can produce the desired output voltage or current level according to application requirements.

Analog output channels: 4 analog outputs, support DAC (digital-to-analog converter), analog I/O resolution, for example, ABB-DSAI146 has 12-bit 1kHz 100mA resolution. Analog outputs have the same fixed resolution to produce the required output signal for precise control.

Communication interface:This enables it to communicate with programmable logic controllers (PLCs), supervisory control and data acquisition (SCADA) systems or other automation equipment for coordinated operation.

Features

Processing digital and analog signals: Has proven to be versatile and can be used in a variety of applications in the processing industry. Digital inputs can read the on/off of switches, proximity sensors, etc., and digital outputs can drive motors, relays and other actuators. Analog inputs and outputs enable precise monitoring and control of physical phenomena such as temperature, pressure and speed, and enable fine manipulation in processes that require continuous control.

High Resolution: The DSAI146 connects to specified analog I/Os, allowing for high-resolution signal processing. Training on such data helps accurately measure sensor data and actuator control signals, which directly contributes to improving the quality and efficiency of the entire industrial process to which it contributes. For example, for a manufacturing process that requires precise temperature control, it can accurately measure and adjust heating or cooling elements based on feedback from a temperature sensor.

Interoperability: The ABB DSAI146 offers a high degree of interoperability with other ABB products and third-party devices in the automation ecosystem and supports common communication interfaces. Translation: It can be easily integrated into existing industrial automation systems based on ABB technology and other technologies, enabling system expansion and upgrades without major compatibility issues.

Diagnostic capabilities: Enables it to self-monitor its internal status and the quality of the signals it processes. If any abnormal conditions occur, such as input signal errors or internal component failures, the COT can generate diagnostic messages or alarms that can be accessed by operators or integrated into higher-level monitoring systems. This allows for quick identification and troubleshooting to minimize downtime and keep industrial operations running smoothly.

Application Scope

Industrial Manufacturing: ABB DSAI146 is used in factories that manufacture electronics, automobiles, machinery and other products. It is used to receive signals from sensor devices on movable conveyors, robot arms or machine tools in production lines and send control signals to actuators to control the operation of the above components. For example, it ensures accuracy in assembly or processing by controlling the speed of the motor based on the position feedback of the sensor.

Process Control: DSAI146 has made significant contributions in industries such as chemical, pharmaceutical and food processing, where strict control of various process parameters is essential. This enables ABB DSAI146 to connect with sensors and actuators to monitor and control temperature, pressure, flow rate and pH value. This also keeps the production process stable and in compliance with strict industry standards and regulations.
