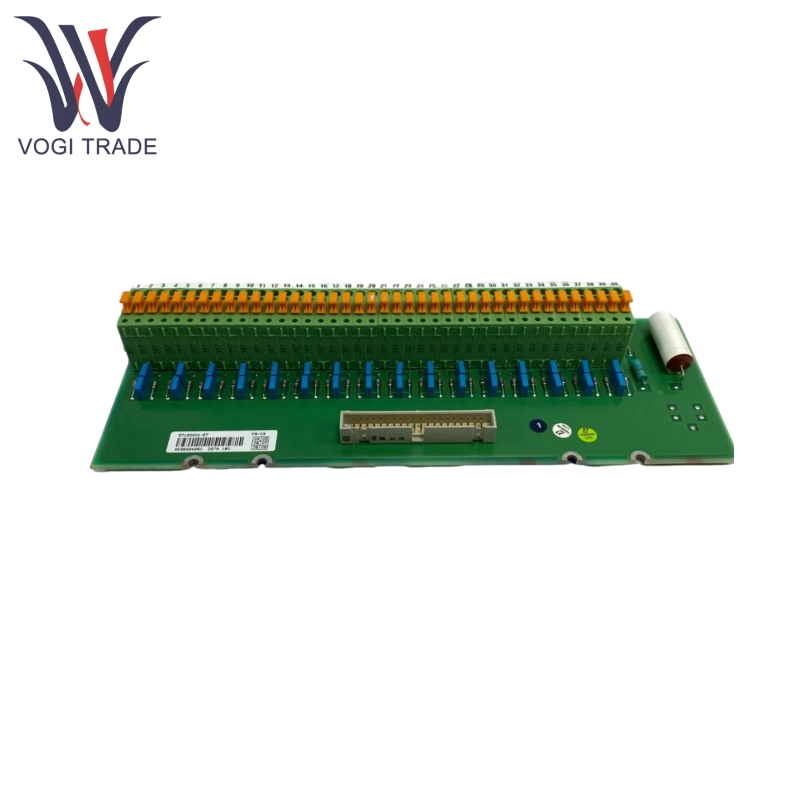

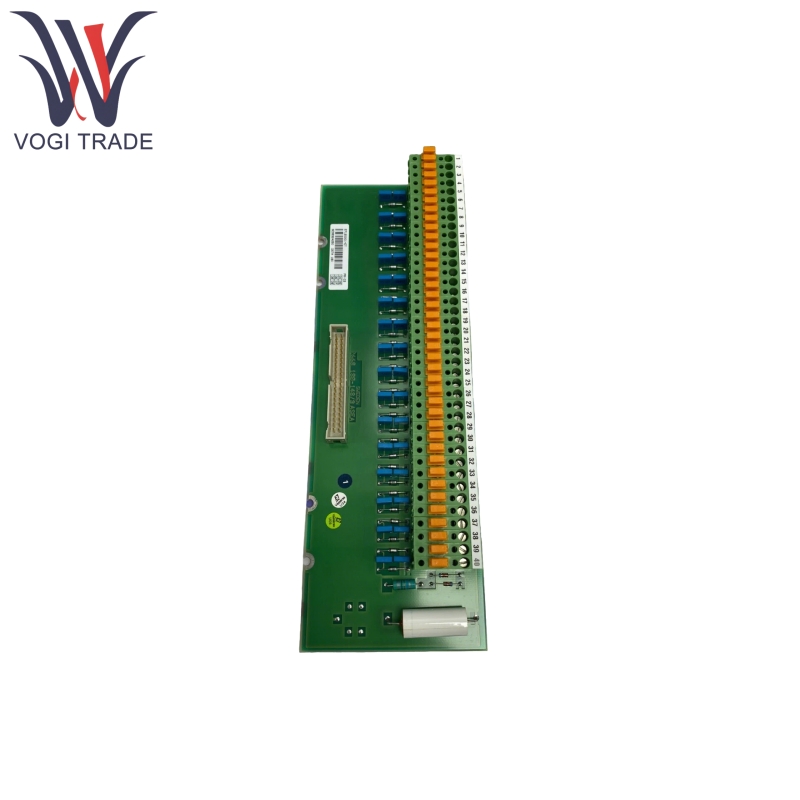

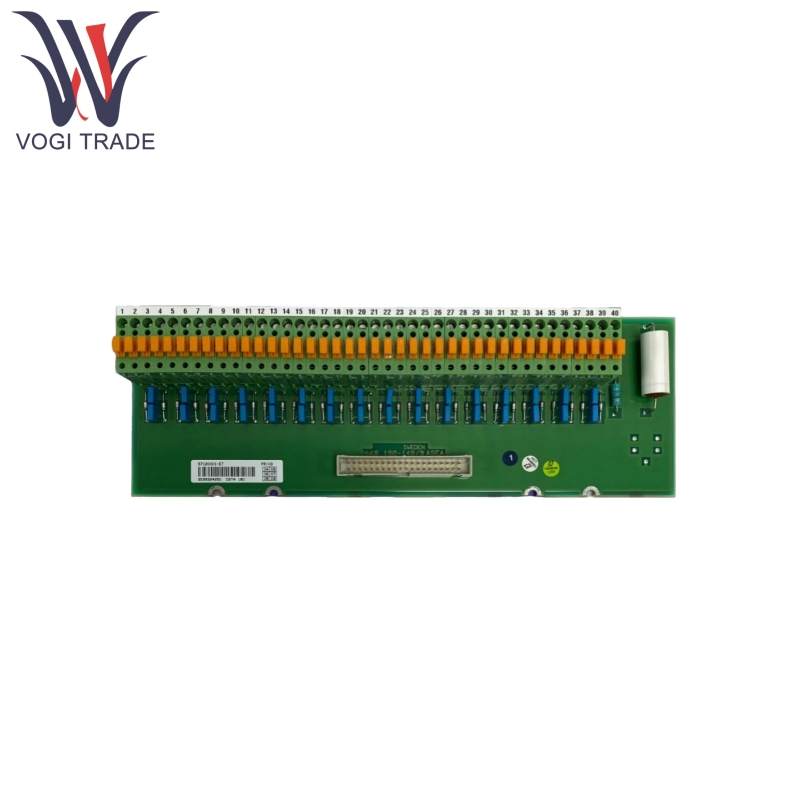

Brand: ABB Description: Connection Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen ABB DSTA180 core function is to provide connection support for 16-channel analog output units, serving as a key connection component between I/O modules and external devices in industrial control systems.
|
Manufacture |
ABB |
|
Model Number |
DSTA180 |
|
Ordering Number |
57120001-ET |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
24*10*4cm |
|
Weight |
0.4kg |
Product Features
ABB DSTA180 is specifically designed for 16-channel analog output units, providing a stable physical connection interface to ensure reliable transmission of analog signals.
ABB DSTA180 can be used in conjunction with the DSRA 110 mounting rail (part number 21660559-H) for standardized installation within industrial control cabinets.
As the terminal unit of the S100 I/O series, ABB DSTA180 is compatible with I/O modules of control systems such as ABB Advant OCS and 800xA, ensuring the integrity of the signal chain.
Product Using Principle
ABB DSTA180 acts as a connection unit, and its working principle is based on physical interfaces and signal transmission:
One end connects to a 16-channel analog output unit, while the other end connects to external field devices via terminal blocks.
It provides stable mechanical fixation and electrical connections to ensure that analog output signals are accurately transmitted from the I/O module to external devices.
It can be installed in a modular manner with mounting strips, simplifying system wiring and improving maintenance convenience.
Product Application
ABB DSTA180 is primarily used in the I/O layer of industrial automation control systems, particularly in scenarios requiring the processing of 16-channel analog output signals, including:
In process industries such as chemicals, power, and metallurgy, connecting analog output modules to actuators such as control valves and variable frequency drives.
As terminal connection components in S100 I/O module groups of control systems such as ABB 800xA, Advant OCS, and Compact Product Suite.
Standardized wiring and equipment integration within industrial control cabinets to ensure the stability of analog signal transmission.
